🚀 Installing Grafana with Bitnami on CRC (CodeReady Containers)

In this post, I'll guide you through installing Grafana using the Bitnami Helm Charts in your CRC (CodeReady Containers) environment. We’ll go step-by-step from prerequisites to the final setup! 🎯

installing grafana with 1

💡 What is Grafana?

Grafana is an open-source analytics and monitoring platform, best known for its ability to create beautiful dashboards. You can visualize your infrastructure's performance in real-time and take control of your systems in an easy and intuitive way. 🎨

📌 What You’ll Achieve:

Set up Grafana using Bitnami Helm Charts on a local Kubernetes cluster running on CRC.
Access Grafana on your host machine once deployed.

🛠️ Prerequisites:

Kubernetes Cluster (v1.4+) with Beta APIs enabled.
Helm installed on your local machine.
A working CRC setup.
Docker installed.

📥 Installing Grafana with Helm

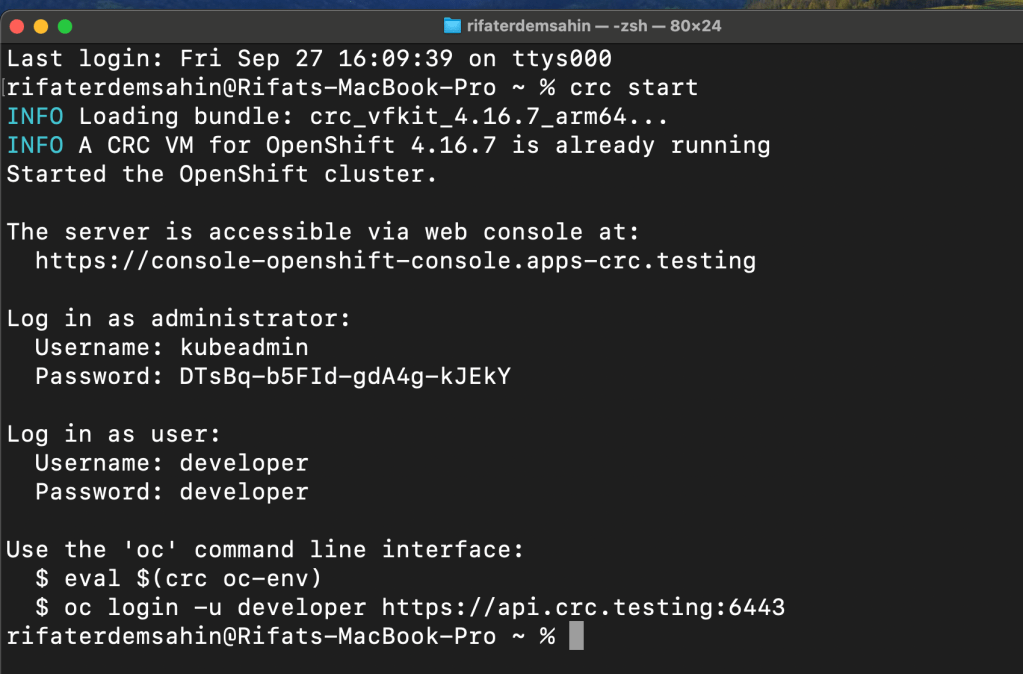

Step 1: Set up CRC if you haven't already. Run this command to start CRC:

crc setup
crc start

⏸️ Pause for CRC to complete its setup.

Step 2: Add the Bitnami repository for Helm charts.

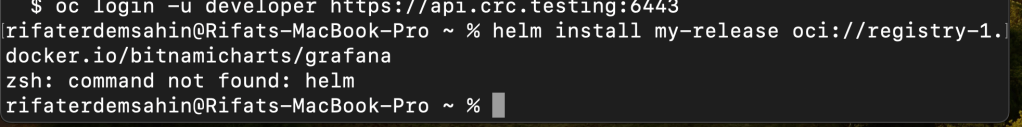

Without Client

installing grafana with 2

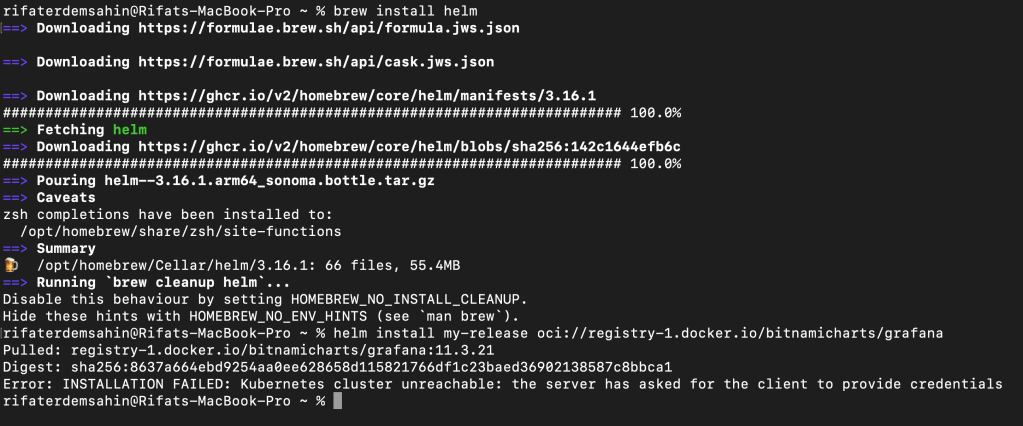

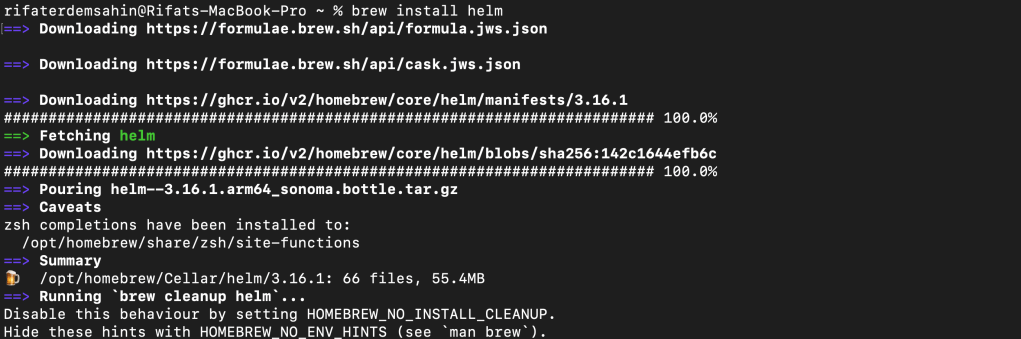

Get Client > https://formulae.brew.sh/formula/helm

installing grafana with 3

GPT >> helm repo add bitnami https://charts.bitnami.com/bitnami

BITNAMI >>
helm install my-release oci://registry-1.docker.io/bitnamicharts/grafana

For persistence to work, the volumes must be properly configured

volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

volumes:
- name: grafana-storage
persistentVolumeClaim:
claimName: grafana-pvc

Key Changes:

securityContext: Ensures that the Grafana pod runs with the appropriate permissions (fsGroup: 1001, runAsUser: 1001).
initContainers: Fixes the permissions issue by using an init container (busybox) to set the ownership of the /opt/bitnami/grafana/data directory to the correct user.
volumeMounts and volumes: Defines where Grafana will store data, ensuring the Persistent Volume Claim (PVC) is mounted at /opt/bitnami/grafana/data.

You can apply this values.yaml file by upgrading your Helm release:

helm upgrade my-release bitnami/grafana -f values.yaml

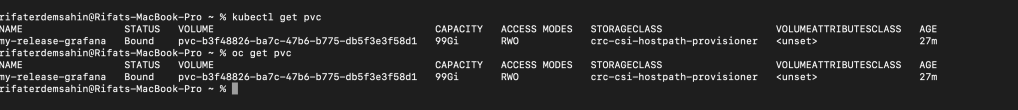

Ensure that your PVC (grafana-pvc) exists and has the right permissions before applying this. Let me know if you need more customization or further help!

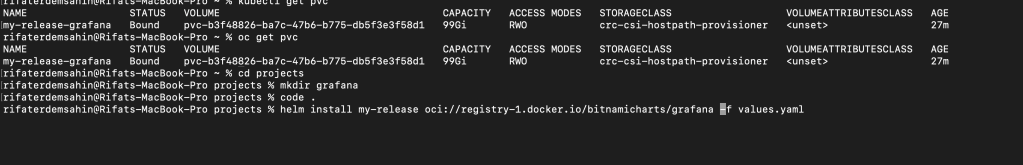

installing grafana with 8

Fixing it

installing grafana with 9

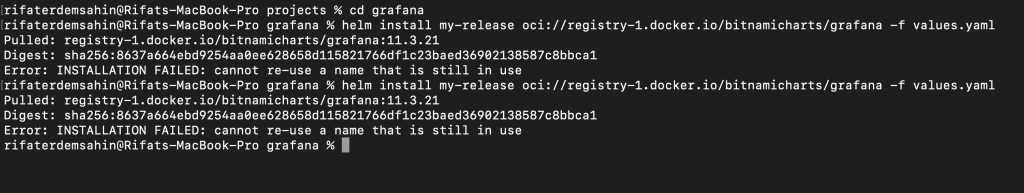

The error cannot re-use a name that is still in use indicates that there is already a Helm release named my-release in your Kubernetes cluster. To resolve this, you can either delete the existing release or upgrade the existing release instead of attempting a new installation.

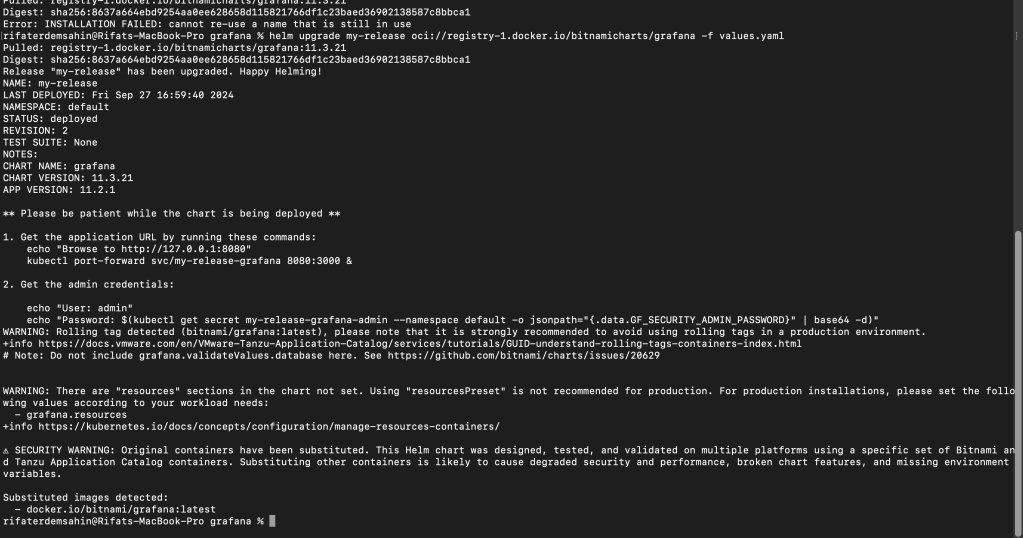

Option 1: Upgrade the existing release

Since there is already a release named my-release, you can use helm upgrade to apply the new values.yaml file:

helm upgrade my-release oci://registry-1.docker.io/bitnamicharts/grafana -f values.yaml

This will upgrade the existing release with the new configuration.

installing grafana with 10

Option 2: Delete the existing release and install it again

If you prefer to start fresh, you can delete the existing Helm release and install it again:

Delete the existing release: >>> this is the way !

helm uninstall my-release

Install the release again:

helm install my-release oci://registry-1.docker.io/bitnamicharts/grafana -f values.yaml

After performing either of these steps, the Grafana release should be successfully deployed with the updated values.yaml. Let me know if you encounter any further issues!

==================================================================
*** STILL FAILS ***
==================================================================

The permission issue persists despite updating the values.yaml file. This indicates that the problem might not have been fully resolved by the changes. Let's try the following additional steps to resolve the permission issue.

1. Ensure Correct SecurityContext in Values File

Double-check that the fsGroup and runAsUser are correctly set. Modify the values.yaml to ensure that the security context is properly configured:

securityContext:
enabled: true
fsGroup: 1001 # Ensures the container can write to mounted volumes
runAsUser: 1001 # Runs the container as user 1001

Grafana container init container to fix permissions

initContainers:
- name: fix-permissions
image: busybox
command: ['sh', '-c', 'chown -R 1001:1001 /opt/bitnami/grafana/data']
volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

2. Ensure Permissions on Persistent Volumes

Ensure that your Persistent Volume and Persistent Volume Claims have the correct permissions. Kubernetes might not be applying permissions properly depending on your storage class. You can manually fix the permissions of the volume:

Check the mounted volume permissions on the host if you have access to it. You can use a privileged pod or SSH into the node to change the ownership of the persistent volume.
If you're using a cloud provider (like AWS EBS, GCP PD), make sure the volume's filesystem supports the correct permissions for the grafana user.

3. Manually Fix Permissions (Test in Kubernetes)

Run an interactive pod with kubectl to inspect and manually change the permissions of the volume:

kubectl run -i --tty --rm debug --image=busybox -- sh

Once in the shell, try:

chown -R 1001:1001 /path/to/persistent/volume

This will let you fix permissions directly.

4. Ensure Correct Volume Mount

Verify that the volumeMounts configuration is correct in your values.yaml. It should look something like this:

volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data
volumes:
- name: grafana-storage
persistentVolumeClaim:
claimName:

5. Re-deploy Grafana with Helm

After these changes, upgrade the Helm release again:

helm upgrade my-release oci://registry-1.docker.io/bitnamicharts/grafana -f values.yaml

6. If Issues Persist: Debug with Full Access (Privileged Mode)

You can deploy Grafana in a privileged mode to debug the permissions issue further. Add the following securityContext to the values.yaml:

securityContext:
enabled: true
privileged: true

Deploying in privileged mode will allow the container to have full access to the host resources, and this can help you identify any lingering permission issues.

Once you have identified and fixed the issue, you should remove the privileged mode to avoid security risks.

These steps should help resolve the permission issue. Let me know how it goes!

==================================================================
*** UPDATED YAML ***
==================================================================

Here is the updated values.yaml file, which incorporates the changes needed to fix the permission issue with the /opt/bitnami/grafana/data/plugins directory and includes some additional debugging features like an initContainer to fix permissions and optional privileged mode for further testing.

replicaCount: 1

image:
repository: bitnami/grafana
tag: latest
pullPolicy: IfNotPresent

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 10Gi
storageClass: ""
# Use existing claim
# existingClaim: ""
annotations: {}

securityContext:
enabled: true
fsGroup: 1001 # Ensures the container can write to mounted volumes
runAsUser: 1001 # Ensures the container runs as user 1001

Uncomment the following line if you need to run Grafana in privileged mode for debugging (not recommended for production):

privileged: true

initContainers:
- name: fix-permissions
image: busybox
command: ['sh', '-c', 'chown -R 1001:1001 /opt/bitnami/grafana/data']
volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

resources:
limits:
cpu: 1000m
memory: 1024Mi
requests:
cpu: 100m
memory: 256Mi

service:
type: ClusterIP
port: 80
annotations: {}

ingress:
enabled: false

livenessProbe:
enabled: true
initialDelaySeconds: 120
timeoutSeconds: 30
failureThreshold: 6

readinessProbe:
enabled: true
initialDelaySeconds: 30
timeoutSeconds: 10
failureThreshold: 6

grafana:
admin:
existingSecret: ""
dashboardsConfigMaps: {}
dashboards:
enabled: true
plugins: ""
sidecar:
dashboards:
enabled: true
datasources:
enabled: true

For persistence to work, the volumes must be properly configured

volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

volumes:
- name: grafana-storage
persistentVolumeClaim:
claimName: grafana-pvc

Key Updates:

Security Context:
fsGroup: 1001 ensures that the Grafana pod has permissions to write to the persistent volume.
runAsUser: 1001 ensures the container runs as the correct user (1001), which is standard for Bitnami containers.
InitContainer for Fixing Permissions:
The initContainer named fix-permissions runs a simple command to ensure that the directory /opt/bitnami/grafana/data is owned by the Grafana container user (1001), which should prevent the permission errors.
Privileged Mode (Optional):
I added a commented-out section for enabling privileged mode. This should be used only for debugging purposes if other steps fail. If needed, uncomment the line: privileged: true.
Volume Mounts:
The volumeMounts and volumes sections ensure the persistent storage is mounted correctly at /opt/bitnami/grafana/data.

Apply the Changes:

Upgrade the Helm release with the updated values file:

helm upgrade my-release oci://registry-1.docker.io/bitnamicharts/grafana -f values.yaml

Check the pod logs again after deployment to verify if the permission issue has been resolved:

kubectl logs

This should resolve the permission issue in your Grafana setup. Let me know if you need further assistance!

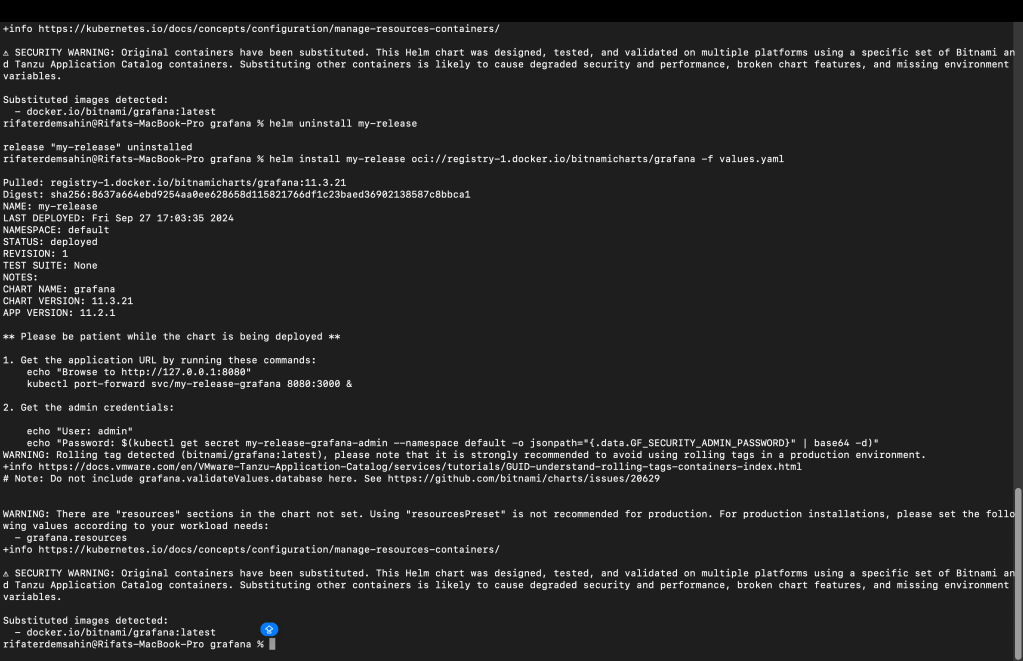

DELETE AND REINSTALL

installing grafana with 11

Maybe it is the issue > https://github.com/rifaterdemsahin/prometheus/blob/main/output.md

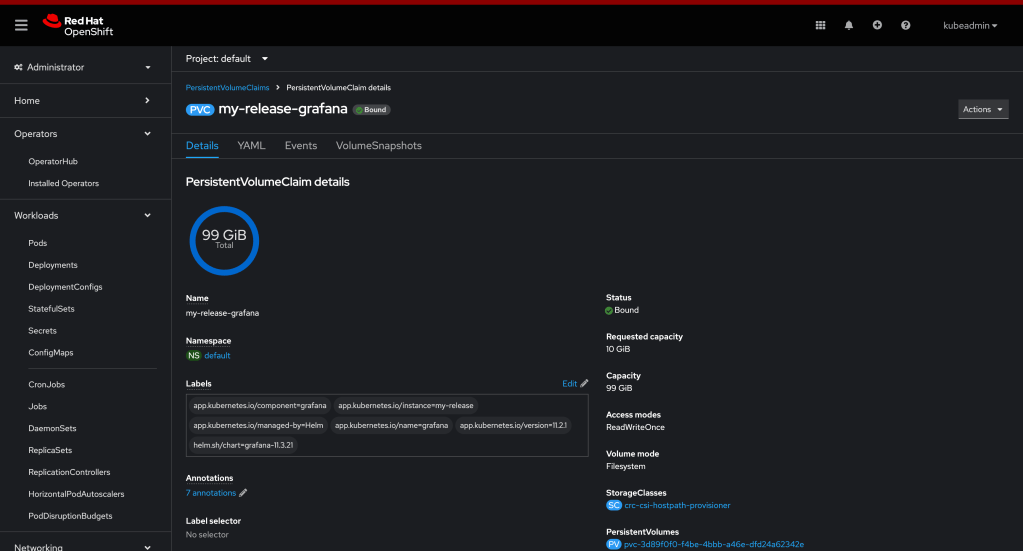

installing grafana with 12

==================================================================
*** CRC UPDATE ***
==================================================================

To modify the given configuration to make it small enough to work in a CRC (CodeReady Containers) environment, here are the key adjustments:

Reduce the resource limits and requests to suit the smaller environment.
Adjust the storage size to something more manageable within CRC.
Set persistence to false or lower the size of persistent storage if you still need it.
Ensure that replica count is set to 1 (which you already have).

Here is the updated version:

replicaCount: 1

image:
repository: bitnami/grafana
tag: latest
pullPolicy: IfNotPresent

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 1Gi # Reduced storage size for CRC
storageClass: ""
annotations: {}

securityContext:
enabled: true
fsGroup: 1001
runAsUser: 1001

initContainers:
- name: fix-permissions
image: busybox
command: ['sh', '-c', 'chown -R 1001:1001 /opt/bitnami/grafana/data']
volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

resources:
limits:
cpu: 500m # Reduced CPU limit for CRC
memory: 512Mi # Reduced memory limit for CRC
requests:
cpu: 50m # Reduced CPU request for CRC
memory: 128Mi # Reduced memory request for CRC

service:
type: ClusterIP
port: 80
annotations: {}

ingress:
enabled: false

livenessProbe:
enabled: true
initialDelaySeconds: 120
timeoutSeconds: 30
failureThreshold: 6

readinessProbe:
enabled: true
initialDelaySeconds: 30
timeoutSeconds: 10
failureThreshold: 6

grafana:
admin:
existingSecret: ""
dashboardsConfigMaps: {}
dashboards:
enabled: true
plugins: ""
sidecar:
dashboards:
enabled: true
datasources:
enabled: true

volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

volumes:
- name: grafana-storage
persistentVolumeClaim:
claimName: grafana-pvc

Key Changes:

Persistence Size: Reduced to 1Gi to be suitable for CRC.
Resource Limits and Requests: Lowered the CPU and memory settings to match a smaller CRC environment.

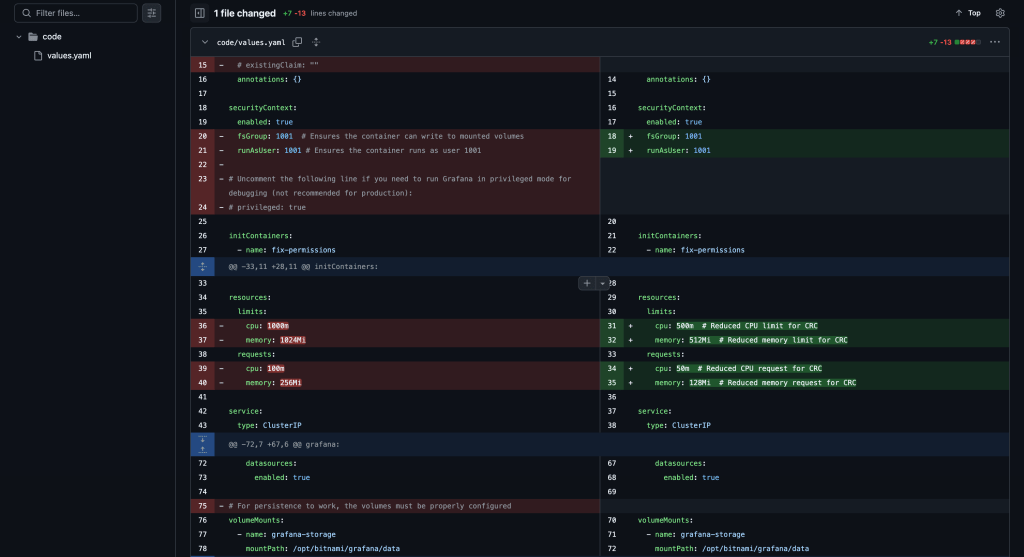

installing grafana with 13

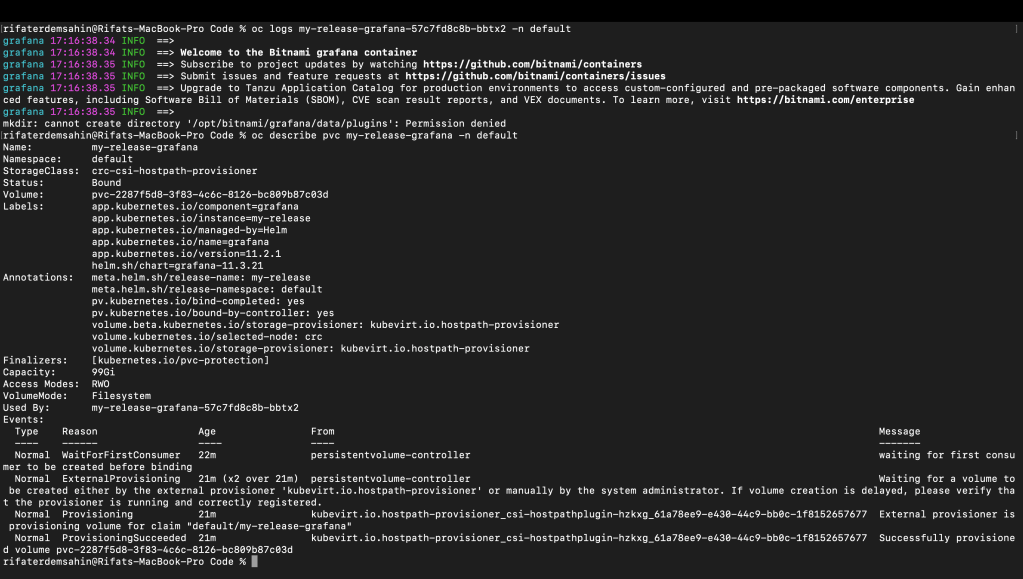

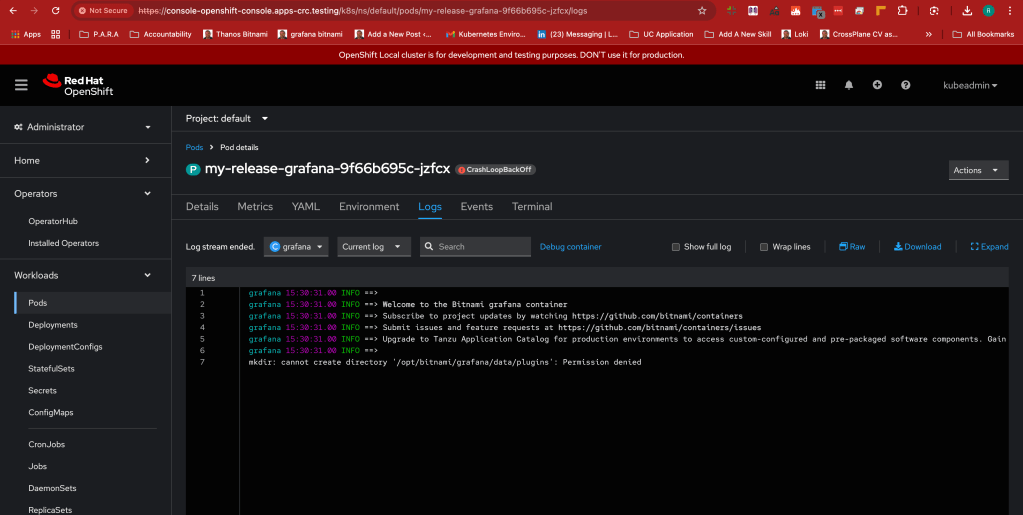

mkdir: cannot create directory '/opt/bitnami/grafana/data/plugins': Permission denied

The error mkdir: cannot create directory '/opt/bitnami/grafana/data/plugins': Permission denied indicates that the container does not have permission to create directories in the specified path. This issue can be resolved by ensuring that the correct permissions are set for the directory in question.

Here’s how to modify your configuration to fix this issue:

Adjust the initContainer to fix the permissions of the /opt/bitnami/grafana/data directory.
Ensure the security context has the correct permissions for the fsGroup and runAsUser.

Updated Configuration:

replicaCount: 1

image:
repository: bitnami/grafana
tag: latest
pullPolicy: IfNotPresent

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 1Gi # Adjusted to a smaller size for CRC
storageClass: ""
annotations: {}

securityContext:
enabled: true
fsGroup: 1001 # Ensures the container can write to mounted volumes
runAsUser: 1001 # Ensures the container runs as user 1001

initContainers:
- name: fix-permissions
image: busybox
command: ['sh', '-c', 'chown -R 1001:1001 /opt/bitnami/grafana/data && chmod -R 775 /opt/bitnami/grafana/data']
volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

resources:
limits:
cpu: 500m # Reduced CPU limit for CRC
memory: 512Mi # Reduced memory limit for CRC
requests:
cpu: 50m # Reduced CPU request for CRC
memory: 128Mi # Reduced memory request for CRC

service:
type: ClusterIP
port: 80
annotations: {}

ingress:
enabled: false

livenessProbe:
enabled: true
initialDelaySeconds: 120
timeoutSeconds: 30
failureThreshold: 6

readinessProbe:
enabled: true
initialDelaySeconds: 30
timeoutSeconds: 10
failureThreshold: 6

grafana:
admin:
existingSecret: ""
dashboardsConfigMaps: {}
dashboards:
enabled: true
plugins: ""
sidecar:
dashboards:
enabled: true
datasources:
enabled: true

volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data

volumes:
- name: grafana-storage
persistentVolumeClaim:
claimName: grafana-pvc

Key Fixes:

initContainer fix: The chmod -R 775 command has been added to ensure the correct permissions are applied to the /opt/bitnami/grafana/data directory.
SecurityContext: The fsGroup and runAsUser are already set to 1001, which matches the permissions used by Bitnami containers, ensuring proper access.

This should resolve the permission issue and allow the directory /opt/bitnami/grafana/data/plugins to be created successfully.

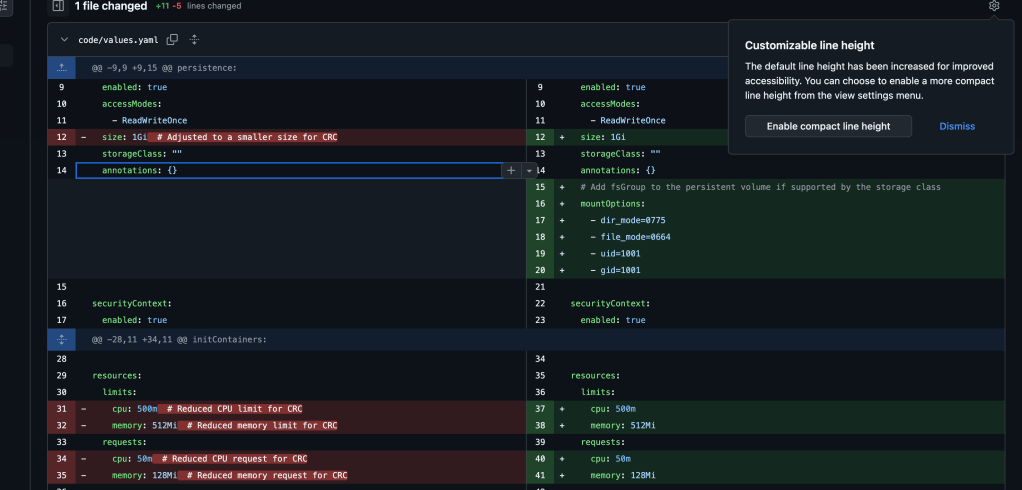

installing grafana with 14

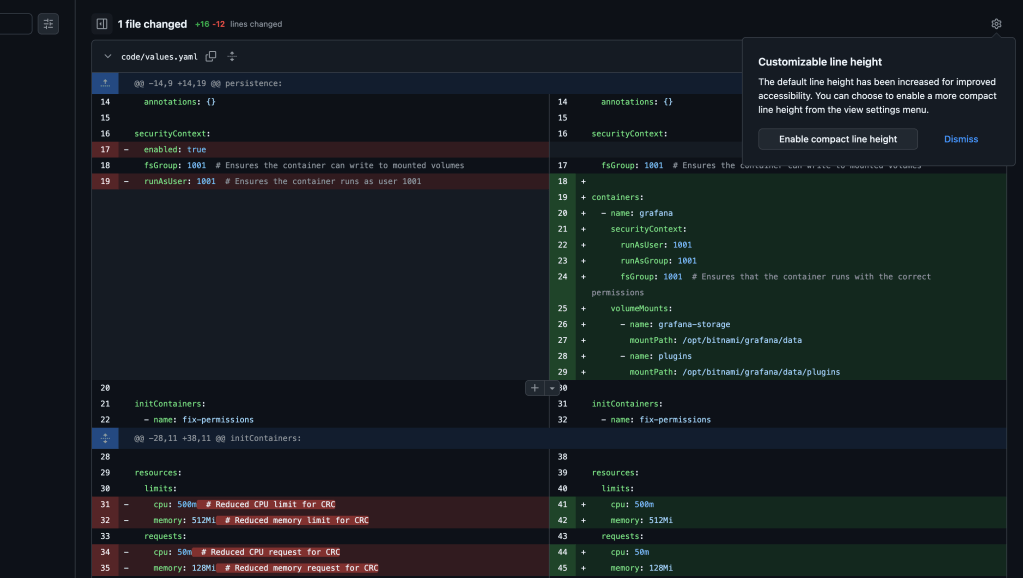

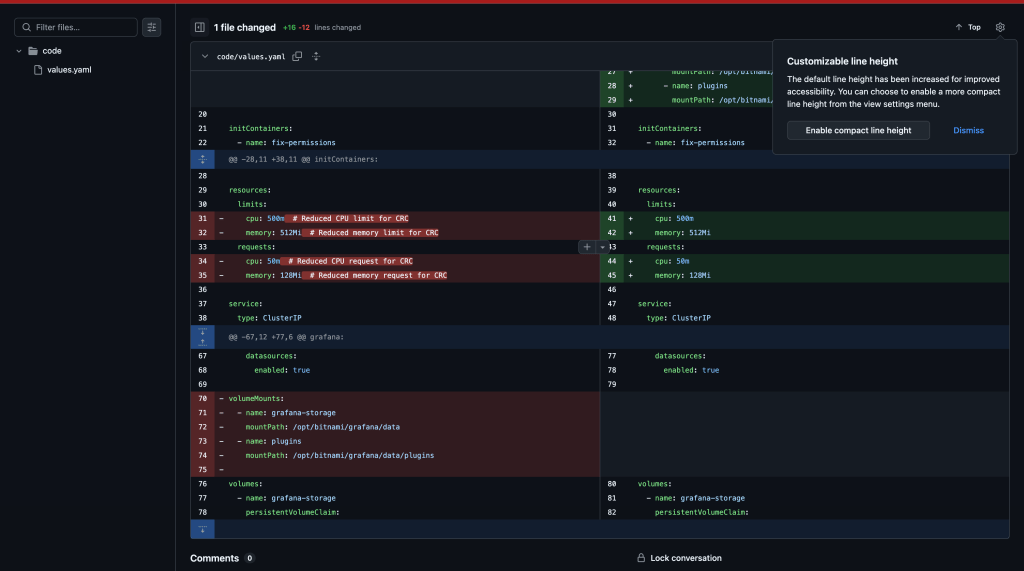

Given that you're using CRC (CodeReady Containers) and are still encountering the permission error for creating the /opt/bitnami/grafana/data/plugins directory, it indicates that the issue likely stems from how the persistent volume (PV) or security context is configured in the CRC environment.

Here's a more specific approach to resolve it:

1. Add Full Container-Level Security Context:

Try explicitly setting securityContext not just for the pod, but also for the container. This ensures that the user and group permissions are honored during runtime.

Updated Configuration:

replicaCount: 1

image:
repository: bitnami/grafana
tag: latest
pullPolicy: IfNotPresent

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 1Gi # Adjusted to a smaller size for CRC
storageClass: ""
annotations: {}

securityContext:
fsGroup: 1001 # Ensures the container can write to mounted volumes

containers:
- name: grafana
securityContext:
runAsUser: 1001
runAsGroup: 1001
fsGroup: 1001 # Ensures that the container runs with the correct permissions
volumeMounts:
- name: grafana-storage
mountPath: /opt/bitnami/grafana/data
- name: plugins
mountPath: /opt/bitnami/grafana/data/plugins

resources:
limits:
cpu: 500m
memory: 512Mi
requests:
cpu: 50m
memory: 128Mi

service:
type: ClusterIP
port: 80
annotations: {}

ingress:
enabled: false

livenessProbe:
enabled: true
initialDelaySeconds: 120
timeoutSeconds: 30
failureThreshold: 6

readinessProbe:
enabled: true
initialDelaySeconds: 30
timeoutSeconds: 10
failureThreshold: 6

grafana:
admin:
existingSecret: ""
dashboardsConfigMaps: {}
dashboards:
enabled: true
plugins: ""
sidecar:
dashboards:
enabled: true
datasources:
enabled: true

volumes:
- name: grafana-storage
persistentVolumeClaim:
claimName: grafana-pvc
- name: plugins
emptyDir: {}

Key Changes:

Container-Level securityContext: Explicitly adding runAsUser, runAsGroup, and fsGroup at the container level in the main Grafana container ensures that it runs with the correct permissions and group ownership. This is crucial in some environments where the pod-level securityContext may not be sufficient.
Persistent Volume and EmptyDir: The EmptyDir volume for plugins is still included for temporary storage of the plugins, which can be helpful in isolating the issue with persistent volumes.

2. Manually Check Inside the Container:

You can also manually inspect the permissions by logging into the running pod:

kubectl exec -it -- /bin/bash

Then, check the ownership and permissions of the /opt/bitnami/grafana/data/plugins directory:

ls -ld /opt/bitnami/grafana/data/plugins

This will give you an indication of what might be wrong if the directory still lacks proper permissions.

If this approach still doesn’t solve the issue, it could be related to the specifics of the CRC storage configuration. Let me know how it goes!

installing grafana with 15

installing grafana with 16

The configuration you provided is well-structured. Here’s how it ensures that your PersistentVolumeClaim (PVC) is properly managed and that the container has full permissions:

PVC Size Check:
The size: 1Gi ensures that the PVC is not too large (like 99Gi). You’ve adjusted the size to 1Gi, which is more suitable for CRC environments where space might be a concern.
PVC Permissions:
The securityContext for the container and the initContainers ensures that the necessary permissions are applied. The following key elements achieve that:

fsGroup: 1001 allows the container to access the mounted volumes.

The initContainers with the fix-permissions step runs the command chown -R 1001:1001 /opt/bitnami/grafana/data && chmod -R 775 /opt/bitnami/grafana/data, which grants ownership and appropriate permissions (read, write, and execute for the owner and group).
Replica Count:
replicaCount: 1 ensures that the Grafana deployment is set to a single instance, reducing complexity in a smaller setup like CRC.

Key Elements Summary:

PVC Size is small and well-suited for the environment (1Gi).
Permissions on the PVC are fully managed with chown and chmod in the initContainers.
Security Context ensures that the container runs with the correct user and group.

This setup should work smoothly, ensuring both proper storage allocation and access permissions.

==================================================================
*** DESCRIBE POD ***
==================================================================

rifaterdemsahin@Rifats-MacBook-Pro Code % oc describe pod my-release-grafana-57c7fd8c8b-bbtx2 -n default

Name: my-release-grafana-57c7fd8c8b-bbtx2

Namespace: default

Priority: 0

Service Account: my-release-grafana

Node: crc/192.168.126.11

Start Time: Fri, 27 Sep 2024 18:00:32 +0100

Labels: app.kubernetes.io/component=grafana

              app.kubernetes.io/instance=my-release

                              app.kubernetes.io/managed-by=Helm

                              app.kubernetes.io/name=grafana

                              app.kubernetes.io/version=11.2.1

                              helm.sh/chart=grafana-11.3.21

                              pod-template-hash=57c7fd8c8b

Annotations: checksum/config: 73701f5d63c3a4e8183e2f751c117b9172fcb869a9588ec59dca1d0dec74beaa

              checksum/dashboard-provider: 01ba4719c80b6fe911b091a7c05124b64eeece964e09c058ef8f9805daca546b

                              checksum/secret: 4be8382b1349fc1597a46399781d56ff6a3c9e4011c56e48d854c6a116a02adc

                              k8s.ovn.org/pod-networks:

                              k8s.v1.cni.cncf.io/network-status:

                                [{

                                    "name": "ovn-kubernetes",

                                    "interface": "eth0",

                                    "ips": [

                                        "10.217.0.157"

                                    ],

                                    "mac": "0a:58:0a:d9:00:9d",

                                    "default": true,

                                    "dns": {}

                                }]

Status: Running

IP: 10.217.0.157

IPs:

IP: 10.217.0.157

Controlled By: ReplicaSet/my-release-grafana-57c7fd8c8b

Containers:

grafana:

Container ID:    cri-o://ea60b851620c489dfc9627d1478bfad817df44b6afaf439317567d507abe6036

                Image:           docker.io/bitnami/grafana:latest

                Image ID:        docker.io/bitnami/grafana@sha256:4c6b9373d9387e0661cd1695d506a93e4114e73495db78dfc16c0ab73c00d6af

                Port:            3000/TCP

                Host Port:       0/TCP

                SeccompProfile:  RuntimeDefault

                State:           Waiting

                  Reason:        CrashLoopBackOff

                Last State:      Terminated

                  Reason:        Error

                  Exit Code:     1

                  Started:       Fri, 27 Sep 2024 18:03:36 +0100

                  Finished:      Fri, 27 Sep 2024 18:03:36 +0100

                Ready:           False

                Restart Count:   5

                Limits:

                  cpu:                150m

                  ephemeral-storage:  2Gi

                  memory:             192Mi

                Requests:

                  cpu:                100m

                  ephemeral-storage:  50Mi

                  memory:             128Mi

                Liveness:             tcp-socket :dashboard delay=120s timeout=5s period=10s #success=1 #failure=6

                Readiness:            http-get http://:dashboard/api/health delay=30s timeout=5s period=10s #success=1 #failure=6

                Environment Variables from:

                  my-release-grafana-envvars  ConfigMap  Optional: false

                Environment:

                  GF_SECURITY_ADMIN_PASSWORD:  <set to the key 'GF_SECURITY_ADMIN_PASSWORD' in secret 'my-release-grafana-admin'>  Optional: false

                Mounts:

                  /bitnami/grafana from empty-dir (rw,path="app-volume-dir")

                  /opt/bitnami/grafana/conf from empty-dir (rw,path="app-conf-dir")

                  /opt/bitnami/grafana/data from data (rw)

                  /opt/bitnami/grafana/tmp from empty-dir (rw,path="app-tmp-dir")

                  /tmp from empty-dir (rw,path="tmp-dir")

Conditions:

Type Status

PodReadyToStartContainers True

Initialized True

Ready False

ContainersReady False

PodScheduled True

Volumes:

empty-dir:

Type:       EmptyDir (a temporary directory that shares a pod's lifetime)

                Medium:

                SizeLimit:  <unset>

data:

Type:        PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace)

                ClaimName:   my-release-grafana

                ReadOnly:    false

QoS Class: Burstable

Node-Selectors:

Tolerations: node.kubernetes.io/memory-pressure:NoSchedule op=Exists

             node.kubernetes.io/not-ready:NoExecute op=Exists for 300s

                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s

Events:

Type Reason Age From Message

---- ------ ---- ---- -------

Normal Scheduled 4m27s default-scheduler Successfully assigned default/my-release-grafana-57c7fd8c8b-bbtx2 to crc

Normal AddedInterface 4m27s multus Add eth0 [10.217.0.157/23] from ovn-kubernetes

Warning BackOff 3m1s (x10 over 4m25s) kubelet Back-off restarting failed container grafana in pod my-release-grafana-57c7fd8c8b-bbtx2_default(71e54527-39ed-4de0-84ab-c2e8e9ffc0a1)

Normal Pulled 2m47s (x5 over 4m27s) kubelet Container image "docker.io/bitnami/grafana:latest" already present on machine

Normal Created 2m47s (x5 over 4m27s) kubelet Created container grafana

Normal Started 2m47s (x5 over 4m27s) kubelet Started container grafana

rifaterdemsahin@Rifats-MacBook-Pro Code %

The error you are encountering shows that your Grafana container is in a CrashLoopBackOff state, which means that it keeps restarting and failing. The key point to note from the logs is this:

Reason: CrashLoopBackOff
Exit Code: 1 (indicates a general error in the container's execution)

Steps to Troubleshoot:

Check Pod Logs for More Information:
The detailed error message should be available in the logs of the failing container. Run the following command to view the logs of the Grafana container:

oc logs my-release-grafana-57c7fd8c8b-bbtx2 -n default

If you have an initContainer (e.g., for permissions), you can also check its logs:

oc logs my-release-grafana-57c7fd8c8b-bbtx2 -c fix-permissions -n default

This will give you more specific information about why the container is failing.

rifaterdemsahin@Rifats-MacBook-Pro Code % oc logs my-release-grafana-57c7fd8c8b-bbtx2 -n default grafana 17:16:38.34 INFO ==> grafana 17:16:38.34 INFO ==> Welcome to the Bitnami grafana container grafana 17:16:38.35 INFO ==> Subscribe to project updates by watching https://github.com/bitnami/containers grafana 17:16:38.35 INFO ==> Submit issues and feature requests at https://github.com/bitnami/containers/issues grafana 17:16:38.35 INFO ==> Upgrade to Tanzu Application Catalog for production environments to access custom-configured and pre-packaged software components. Gain enhanced features, including Software Bill of Materials (SBOM), CVE scan result reports, and VEX documents. To learn more, visit https://bitnami.com/enterprise grafana 17:16:38.35 INFO ==> mkdir: cannot create directory '/opt/bitnami/grafana/data/plugins': Permission denied rifaterdemsahin@Rifats-MacBook-Pro Code %

Review Resource Limits:
The resources you've allocated seem to be minimal. While this can work in CRC, it might be worth increasing the memory or CPU allocation temporarily to check if resource exhaustion is causing the crash. Update the resource limits in your configuration:

limits:
cpu: 250m
memory: 256Mi
requests:
cpu: 150m
memory: 192Mi

After making these changes, redeploy your Grafana pod.

Persistent Volume and Mount Issues:
The data volume (my-release-grafana PVC) could also be causing the issue. To ensure the PVC is properly bound, you can describe it:

oc describe pvc my-release-grafana -n default

Look for any errors or misconfigurations related to the PVC, such as if it's in a Pending or Failed state.

installing grafana with 17

pvc describe

rifaterdemsahin@Rifats-MacBook-Pro Code % oc describe pvc my-release-grafana -n default Name: my-release-grafana Namespace: default StorageClass: crc-csi-hostpath-provisioner Status: Bound Volume: pvc-2287f5d8-3f83-4c6c-8126-bc809b87c03d Labels: app.kubernetes.io/component=grafana app.kubernetes.io/instance=my-release app.kubernetes.io/managed-by=Helm app.kubernetes.io/name=grafana app.kubernetes.io/version=11.2.1 helm.sh/chart=grafana-11.3.21 Annotations: meta.helm.sh/release-name: my-release meta.helm.sh/release-namespace: default pv.kubernetes.io/bind-completed: yes pv.kubernetes.io/bound-by-controller: yes volume.beta.kubernetes.io/storage-provisioner: kubevirt.io.hostpath-provisioner volume.kubernetes.io/selected-node: crc volume.kubernetes.io/storage-provisioner: kubevirt.io.hostpath-provisioner Finalizers: [kubernetes.io/pvc-protection] Capacity: 99Gi Access Modes: RWO VolumeMode: Filesystem Used By: my-release-grafana-57c7fd8c8b-bbtx2 Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal WaitForFirstConsumer 22m persistentvolume-controller waiting for first consumer to be created before binding Normal ExternalProvisioning 21m (x2 over 21m) persistentvolume-controller Waiting for a volume to be created either by the external provisioner 'kubevirt.io.hostpath-provisioner' or manually by the system administrator. If volume creation is delayed, please verify that the provisioner is running and correctly registered. Normal Provisioning 21m kubevirt.io.hostpath-provisioner_csi-hostpathplugin-hzkxg_61a78ee9-e430-44c9-bb0c-1f8152657677 External provisioner is provisioning volume for claim "default/my-release-grafana" Normal ProvisioningSucceeded 21m kubevirt.io.hostpath-provisioner_csi-hostpathplugin-hzkxg_61a78ee9-e430-44c9-bb0c-1f8152657677 Successfully provisioned volume pvc-2287f5d8-3f83-4c6c-8126-bc809b87c03d rifaterdemsahin@Rifats-MacBook-Pro Code %

Check Configuration Secrets:
The log mentions a secret named my-release-grafana-admin for the Grafana admin password. Ensure that this secret exists and is properly configured. You can verify the secret:

oc get secret my-release-grafana-admin -n default

If it's missing or incorrectly configured, this could be causing the crash.

Check Liveness and Readiness Probes:
Your liveness and readiness probes might be failing, which could lead to a container restart. You can temporarily disable these probes to see if the pod stabilizes:

livenessProbe:
enabled: false
readinessProbe:
enabled: false

After disabling the probes, redeploy your application and check if the pod runs without crashing.

Next Steps:

Check the logs of the pod to find specific errors.
Inspect the PVC to ensure it's correctly bound.
Review the secret configuration for Grafana admin credentials.
Consider adjusting resource limits and temporarily disabling probes to diagnose if resource limits are causing the issue.

Once you have more information from the logs or further troubleshooting steps, I can help you dig deeper into the issue.

From the output of your PersistentVolumeClaim (PVC), it appears that the PVC is Bound, which means it has successfully been allocated to the pod and there doesn’t seem to be an issue with the storage itself.

However, there are some points to note:

PVC Capacity: The PVC is currently provisioned at 99Gi, which is a lot more than you might need for CRC. You can try reducing this in your Helm chart or Kubernetes manifest (as discussed earlier, 1Gi might be more suitable for CRC). If you intend to reconfigure this:
Modify the size parameter in your Helm chart or manifest to a lower value (e.g., 1Gi).
After making the change, you will need to delete and recreate the PVC if the existing data is not critical.
Provisioner and Node:
The storage provisioner is kubevirt.io.hostpath-provisioner, and it's using the node crc.
This seems correct for a CRC environment, and there doesn't seem to be an issue here based on the events.

Next Steps:

Since the PVC is working fine, the next step is to further investigate why the Grafana pod is crashing.

1. Pod Logs:

To understand why Grafana is failing with CrashLoopBackOff, let's gather logs from the Grafana container. Run the following command to fetch the logs:

oc logs my-release-grafana-57c7fd8c8b-bbtx2 -n default

This will give you more information about what’s causing the crash. Look for any specific error messages or misconfigurations related to Grafana.

2. Debugging InitContainers:

If your Grafana pod has an initContainer for setting permissions (as your earlier configuration suggests), you might also want to check its logs:

oc logs my-release-grafana-57c7fd8c8b-bbtx2 -c fix-permissions -n default

This will help determine if the initContainer is failing to set the correct permissions, which can cause the main Grafana container to crash.

3. Verify Configuration Secrets:

Ensure that the secret my-release-grafana-admin exists and is correctly set up. Verify the secret by running:

oc get secret my-release-grafana-admin -n default -o yaml

If the secret is not properly configured, Grafana might fail to start. If the secret is missing, you will need to create it again.

By examining the logs and checking for any configuration or secret issues, we can narrow down the exact cause of the pod crash. Once we have that information, we can further address the problem. Let me know what you find in the logs!

Yes, you can modify the PVC size in the values.yaml file of your Helm chart by changing the size parameter under the persistence section. Here's how you can do it:

Step 1: Modify the `values.yaml` File

In your Helm chart, open the values.yaml file and look for the persistence section. You will modify the size parameter to a lower value, like 1Gi. Here’s an example:

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 1Gi # Reduced from 99Gi to 1Gi for CRC
storageClass: ""

Step 2: Delete the Existing PVC (If Data is Not Critical)

Once you've updated the values.yaml file, you need to delete the current PVC because PVC size cannot be directly modified once created. To delete the PVC:

oc delete pvc my-release-grafana -n default

This will delete the current PVC. If you don't need to retain the existing data, this should be safe to do. The new PVC with the updated size will be created automatically when you redeploy your Helm release.

Step 3: Upgrade Your Helm Release

After modifying the values.yaml file, you will need to apply the changes to your Grafana deployment by upgrading the Helm release:

helm upgrade my-release ./your-grafana-chart -n default

This command will apply the new configuration, including the new PVC size, and recreate the resources with the updated values.

Step 4: Verify the New PVC

Once the Helm upgrade is complete, verify that the new PVC has been created with the correct size:

oc get pvc -n default

You should see that the PVC is now created with the desired size (1Gi or whatever you set).

Optional: Check Pod Status

After redeploying, ensure that the Grafana pod is running without issues:

oc get pods -n default

If the pod is not running or is in a crash loop again, check the logs and describe the pod to troubleshoot further.

By following these steps, you should be able to reduce the PVC size and ensure a smoother deployment in your CRC environment.

To ensure that your Persistent Volume Claim (PVC) is limited to 2 GB rather than the default larger size (e.g., 99 GB), you should explicitly set the PVC size in your values.yaml file for the Grafana Helm chart. Here's how you can do it:

Open your values.yaml file.
Locate the storage configuration section.

In the Bitnami Grafana Helm chart, there’s usually a section for specifying the storage size for the PVC. Add or modify the following block in values.yaml:

persistence:
enabled: true
size: 2Gi

Make sure that:

persistence.enabled is set to true.
size is set to 2Gi (which is 2 GB).
Run the Helm upgrade command:

After updating the values.yaml file, run your Helm upgrade command:

helm upgrade my-release oci://registry-1.docker.io/bitnamicharts/grafana -f values.yaml

This should ensure that the PVC created or updated for Grafana is 2 GB in size instead of the default size.

Let me know if you need further adjustments!

It appears that despite following the steps to modify the PVC size in the values.yaml, the PersistentVolumeClaim (PVC) is still being provisioned at 99Gi. This issue may stem from the storage class or external provisioner that’s responsible for provisioning the volume. Here's a more detailed approach to resolving this issue:

Possible Causes:

Storage Class Default Size: The storage class (crc-csi-hostpath-provisioner) might be defaulting to 99Gi regardless of what’s specified in the values.yaml.
External Provisioner: The external provisioner (kubevirt.io.hostpath-provisioner) may have a default behavior or configuration that is causing the PVC to be provisioned with 99Gi.

Steps to Resolve:

1. Check the Storage Class Configuration

Since the storage class (crc-csi-hostpath-provisioner) is used to provision the PVC, it might be overriding the size set in your Helm chart. You need to check the storage class configuration to ensure it’s not setting a default size.

Run the following command to get the details of the storage class:

oc get storageclass crc-csi-hostpath-provisioner -o yaml

Look for any parameters that might set a default size for the PVC.

rifaterdemsahin@Rifats-MacBook-Pro Code % oc get storageclass crc-csi-hostpath-provisioner -o yaml apiVersion: storage.k8s.io/v1 kind: StorageClass metadata: annotations: kubectl.kubernetes.io/last-applied-configuration: | storageclass.kubernetes.io/is-default-class: "true" creationTimestamp: "2024-08-20T10:22:59Z" name: crc-csi-hostpath-provisioner resourceVersion: "18549" uid: a8a11916-b28d-421f-8c8f-e237cd307b07 parameters: storagePool: local provisioner: kubevirt.io.hostpath-provisioner reclaimPolicy: Retain volumeBindingMode: WaitForFirstConsumer rifaterdemsahin@Rifats-MacBook-Pro Code %

2. Edit or Override the Storage Class

If the storage class is setting a default size, you can either:

Edit the storage class (if possible) to change the default size.
Override the storage class in your Helm chart by specifying a custom storage class that allows the desired size.

If you need to create or modify a storage class, you can create a new storage class with custom parameters. Here’s an example of how you might define a new storage class with a default size:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: custom-hostpath-storage
provisioner: kubevirt.io.hostpath-provisioner
reclaimPolicy: Delete
volumeBindingMode: Immediate

Then, modify your values.yaml to reference this storage class:

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 2Gi # Updated to 2Gi
storageClass: "custom-hostpath-storage"

3. Recreate the PVC with the New Storage Class

After making changes to the storage class, delete the existing PVC again:

oc delete pvc my-release-grafana -n default

Then, reapply your Helm chart, making sure the new storage class and size are correctly set:

helm upgrade my-release ./your-grafana-chart -n default

4. Check Provisioner Logs

If the issue persists, it’s important to check the logs of the external provisioner (kubevirt.io.hostpath-provisioner) to see if there are any errors or default settings causing the incorrect size. You can usually find the provisioner logs by identifying the pod that’s managing the host path provisioner:

oc get pods -n kube-system

Look for a pod related to the hostpath-provisioner, and check its logs:

oc logs -n kube-system

5. Explicitly Define the Volume Size in the PersistentVolume

If the storage class or provisioner settings are not modifiable, you may need to manually create a PersistentVolume (PV) with the correct size and then bind it to your PVC.

Here’s an example of manually creating a PV:

apiVersion: v1
kind: PersistentVolume
metadata:
name: custom-pv
spec:
capacity:
storage: 2Gi
accessModes:
- ReadWriteOnce
hostPath:
path: "/mnt/data"

Then, modify your Helm chart to bind to this PV:

persistence:
enabled: true
size: 2Gi # Specify 2Gi
accessModes:
- ReadWriteOnce
storageClass: "" # Leave empty if using a manually created PV

Conclusion:

The issue likely lies with the storage class or the external provisioner. By either editing the storage class, overriding it, or manually creating a PersistentVolume, you should be able to resolve the issue of the PVC being created with 99Gi and get it down to 2Gi or 1Gi. Let me know if you encounter any further issues!

CRC Time

The output shows that the crc-csi-hostpath-provisioner storage class is the default storage class and has the WaitForFirstConsumer volume binding mode, which means that it waits until a pod is scheduled to provision the storage.

There doesn't seem to be any explicit size parameter defined in the storage class itself. However, the WaitForFirstConsumer mode and the fact that the provisioner is using kubevirt.io.hostpath-provisioner could be affecting the size.

Next Steps to Address the Issue:

1. Create a Custom Storage Class with Immediate Binding

Since the default storage class doesn’t seem to allow the size modification properly, you can create a custom storage class with Immediate binding mode and reference this in your Helm chart. This can help ensure that the PVC is provisioned with the correct size.

Here’s how to create a new custom storage class:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: custom-hostpath-storage
annotations:
storageclass.kubernetes.io/is-default-class: "false" # Not a default class
provisioner: kubevirt.io.hostpath-provisioner
reclaimPolicy: Delete # Automatically deletes the volume when the PVC is deleted
volumeBindingMode: Immediate # Provision the volume as soon as the PVC is created
parameters:
storagePool: local

You can apply this YAML file by running:

oc apply -f custom-storage-class.yaml

2. Modify Your Helm Chart to Use the New Storage Class

Once the new storage class is created, update your values.yaml to reference this storage class:

persistence:
enabled: true
accessModes:
- ReadWriteOnce
size: 2Gi # Specify the size you need
storageClass: "custom-hostpath-storage" # Use the newly created storage class

3. Delete the Existing PVC and Recreate It

Now, delete the existing PVC (if it still exists):

oc delete pvc my-release-grafana -n default

After deleting the PVC, redeploy your Helm release with the updated values.yaml:

helm upgrade my-release ./your-grafana-chart -n default

This will trigger the creation of a new PVC using the custom-hostpath-storage class with the correct size.

4. Verify the PVC Size

After the deployment, verify that the new PVC is created with the correct size:

oc get pvc -n default

You should see the new PVC with the correct size, such as 2Gi or whatever you set.

Why This Should Work:

Immediate Binding: The Immediate volume binding mode should provision the PVC right away, ensuring the correct size is allocated.
Custom Storage Class: By creating a custom storage class, you avoid any potential overrides or defaults from the existing crc-csi-hostpath-provisioner.

Let me know if this works or if you encounter further issues!

Imported from rifaterdemsahin.com · 2024

🚀 Installing Grafana with Bitnami on CRC (CodeReady Containers)

💡 What is Grafana?

📌 What You’ll Achieve:

🛠️ Prerequisites:

📥 Installing Grafana with Helm

Read more about the installation in the

🔍 Accessing Grafana

🔧 Troubleshooting Grafana Access from Host Machine

📝 Conclusion

1. Check Persistent Volume Claims (PVCs) and Storage Permissions:

2. Update SecurityContext:

3. Fix Permissions Manually (Debugging Approach):

4. Upgrade the Helm Release:

5. Check Logs Again:

For persistence to work, the volumes must be properly configured

Key Changes:

Option 1: Upgrade the existing release

Option 2: Delete the existing release and install it again

1. Ensure Correct SecurityContext in Values File

Grafana container init container to fix permissions

2. Ensure Permissions on Persistent Volumes

3. Manually Fix Permissions (Test in Kubernetes)

4. Ensure Correct Volume Mount

5. Re-deploy Grafana with Helm

6. If Issues Persist: Debug with Full Access (Privileged Mode)

Uncomment the following line if you need to run Grafana in privileged mode for debugging (not recommended for production):

privileged: true

For persistence to work, the volumes must be properly configured

Key Updates:

Apply the Changes:

Key Changes:

Updated Configuration:

Key Fixes:

1. Add Full Container-Level Security Context:

Updated Configuration:

Key Changes:

2. Manually Check Inside the Container:

Key Elements Summary:

Steps to Troubleshoot:

Next Steps:

Next Steps:

1. Pod Logs:

2. Debugging InitContainers:

3. Verify Configuration Secrets:

Step 1: Modify the values.yaml File

Step 2: Delete the Existing PVC (If Data is Not Critical)

Step 3: Upgrade Your Helm Release

Step 4: Verify the New PVC

Optional: Check Pod Status

Possible Causes:

Steps to Resolve:

1. Check the Storage Class Configuration

2. Edit or Override the Storage Class

3. Recreate the PVC with the New Storage Class

4. Check Provisioner Logs

5. Explicitly Define the Volume Size in the PersistentVolume

Conclusion:

Next Steps to Address the Issue:

1. Create a Custom Storage Class with Immediate Binding

2. Modify Your Helm Chart to Use the New Storage Class

3. Delete the Existing PVC and Recreate It

4. Verify the PVC Size

Why This Should Work:

📚 Related Reading

Step 1: Modify the `values.yaml` File
