Get an enviroment that can run 7.2 for the automation to work with keys for a Logic App run on Azure Automation
Goal : to have the azure automation run on its own

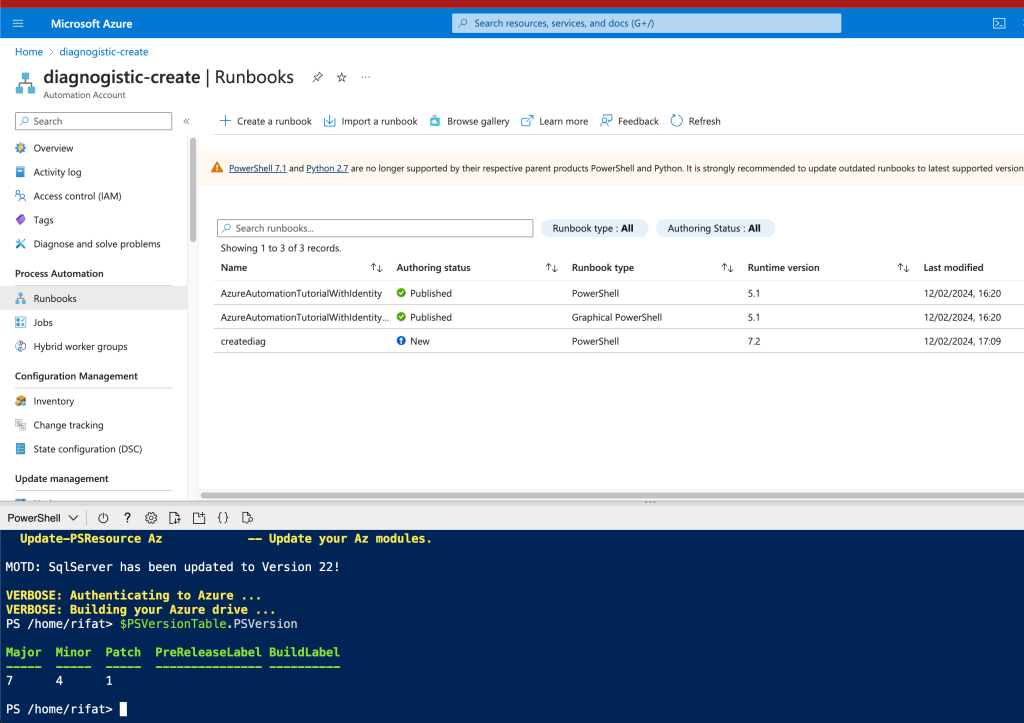

Azure automation has the 7.2
Can i test in the cli azure?
cloud shell and powershell runtime would they match ?
7.4 could overlap with 7.2?

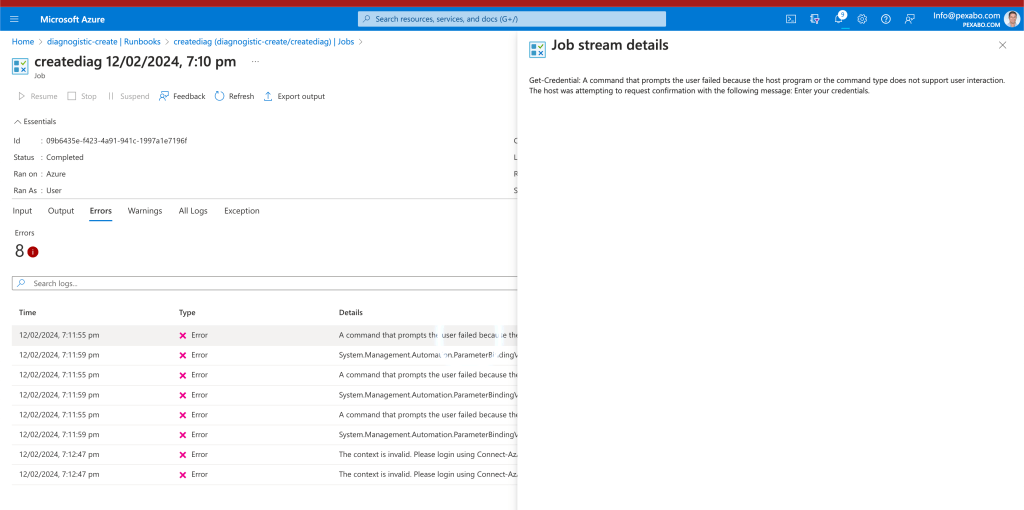

maybe my main error was the popup error and the basics are not covered in scripting tools
Silent olmasi onemli

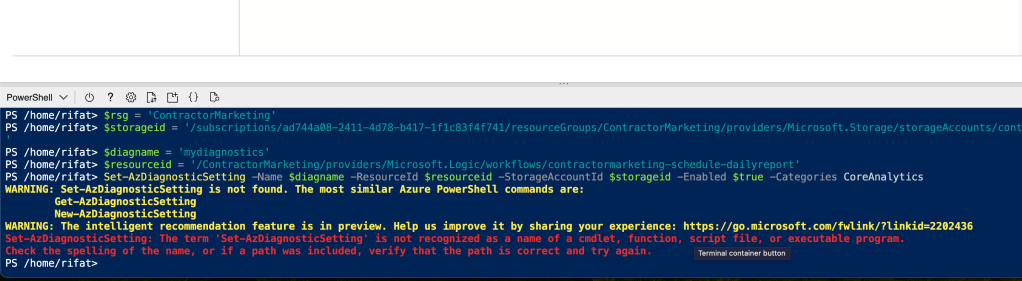

All lines did not work

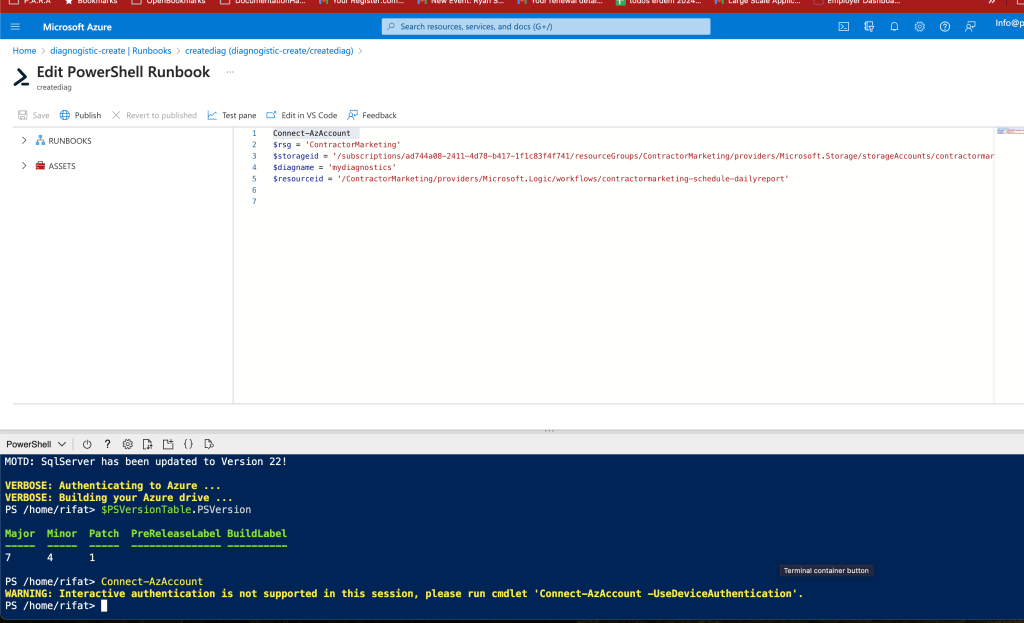

error at fist line

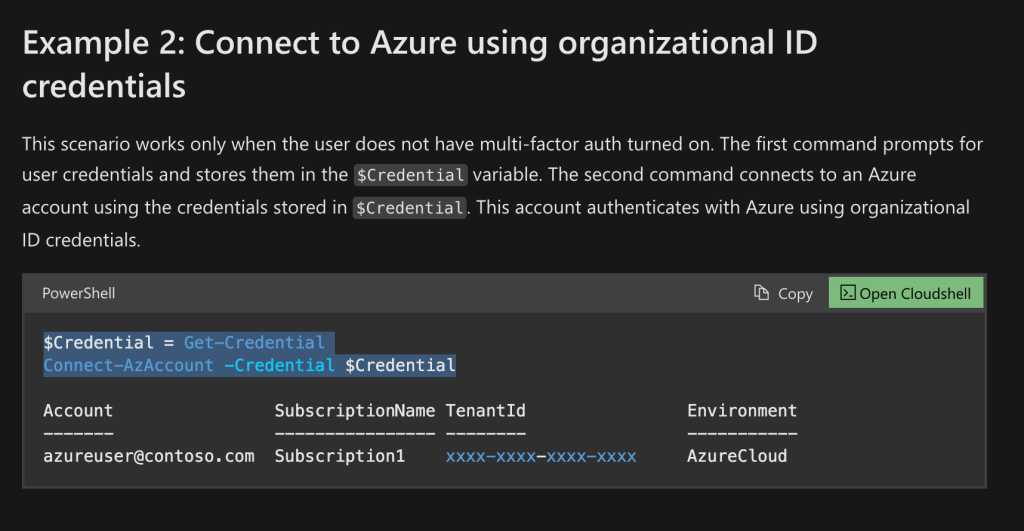

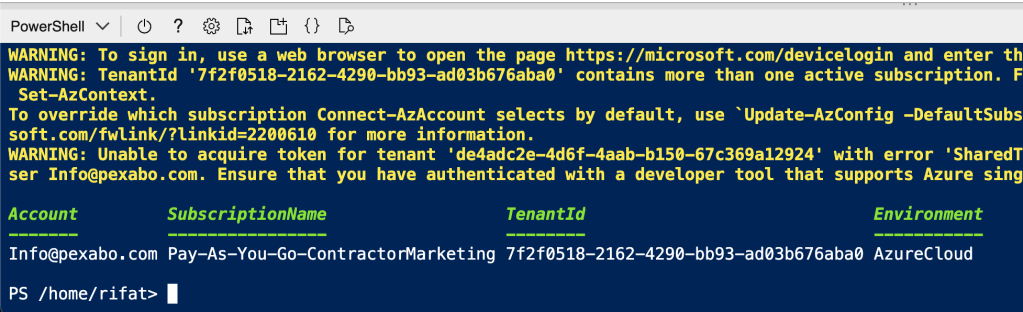

Connect-AzAccount -UseDeviceAuthentication
$rsg = 'ContractorMarketing'
$storageid = '/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Storage/storageAccounts/contractormarketing'
$diagname = 'mydiagnostics'
$resourceid = '/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport'
Set-AzDiagnosticSetting -Name $diagname -ResourceId $resourceid -StorageAccountId $storageid -Enabled $true -Categories CoreAnalytics

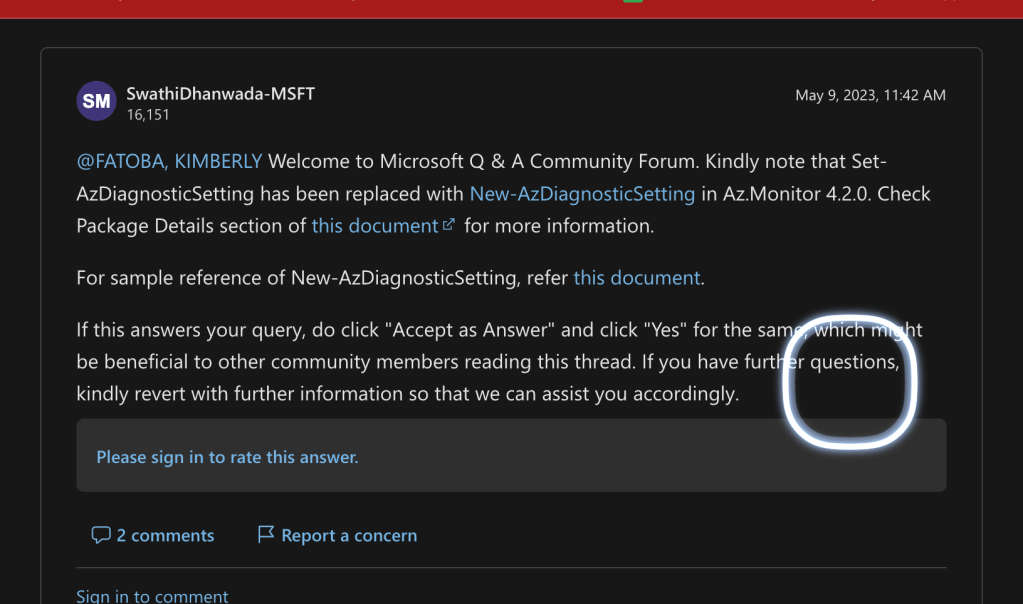

find the new functions

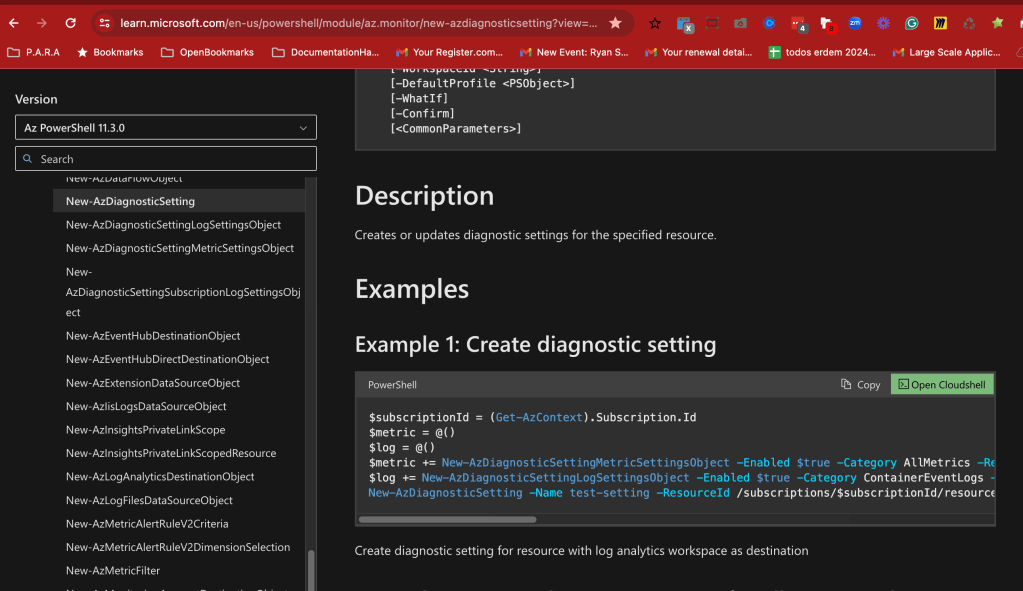

https://learn.microsoft.com/en-us/powershell/module/az.monitor/new-azdiagnosticsetting?view=azps-11.3.0&viewFallbackFrom=azps-9.7.1
different type of creation
New-AzDiagnosticSetting -Name mydiag -setting -ResourceId /subscriptions/$subscriptionId/resourceGroups/test-rg-name/providers/Microsoft.AppPlatform/Spring/springcloud-001 -WorkspaceId /subscriptions/$subscriptionId/resourcegroups/test-rg-name/providers/microsoft.operationalinsights/workspaces/test-workspace -Log $log -Metric $metric

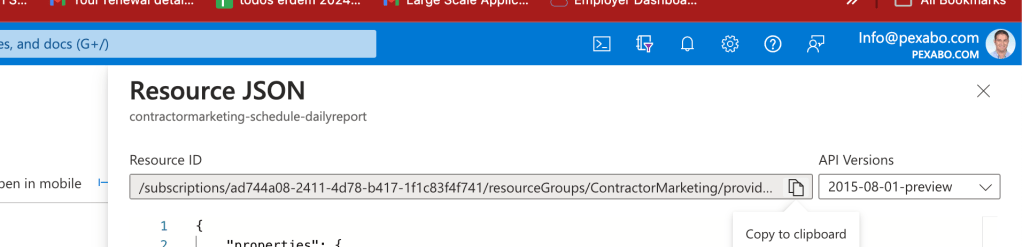

Practical grab the resource id
/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport
New-AzDiagnosticSetting -Name mydiag -setting -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/$subscriptionId/resourcegroups/test-rg-name/providers/microsoft.operationalinsights/workspaces/test-workspace -Log $log -Metric $metric

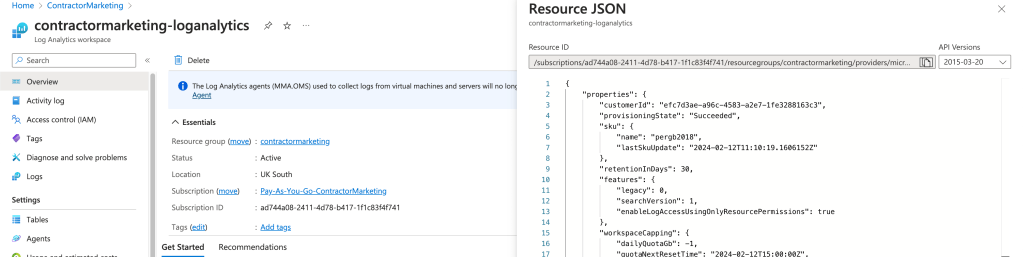

workspaceid simil.ar grab
/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics
New-AzDiagnosticSetting -Name mydiag -setting -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics -Log $log -Metric $metric
All Code
$subscriptionId = (Get-AzContext).Subscription.Id
$metric = @()
$log = @()
$metric += New-AzDiagnosticSettingMetricSettingsObject -Enabled $true -Category AllMetrics -RetentionPolicyDay 7 -RetentionPolicyEnabled $true
$log += New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category ContainerEventLogs -RetentionPolicyDay 7 -RetentionPolicyEnabled $true
New-AzDiagnosticSetting -Name mydiag -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics -Log $log -Metric $metric
$log += New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category ContainerEventLogs -RetentionPolicyDay 7 -RetentionPolicyEnabled $true
$log += New-AzDiagnosticSettingLogSettingsObject -Enabled $true -RetentionPolicyDay 7 -RetentionPolicyEnabled $true

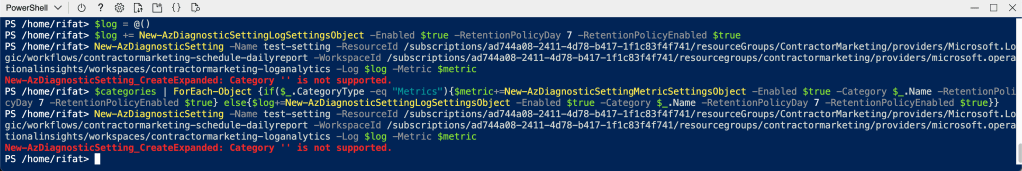

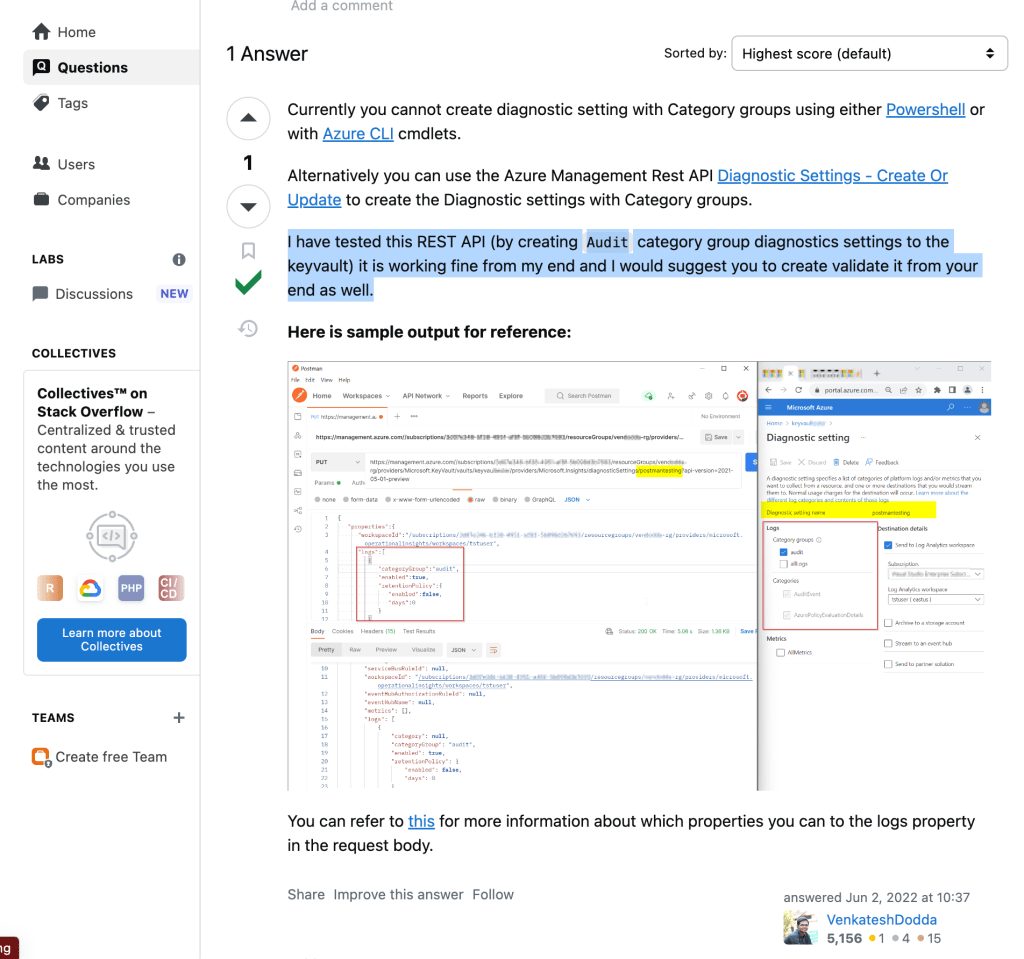

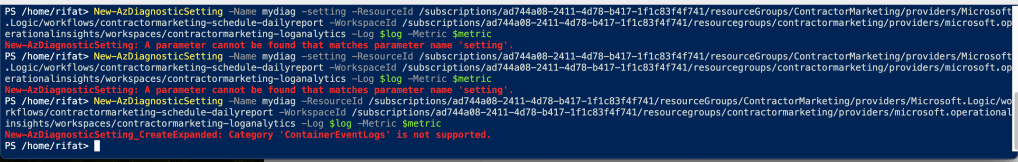

category error > switch to all
$categories = Get-AzDiagnosticSettingCategory -ResourceId /subscriptions/$subscriptionId/resourceGroups/test-rg-name/providers/Microsoft.AppPlatform/Spring/springcloud-001
$categories = Get-AzDiagnosticSettingCategory -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport
$categories | ForEach-Object {if($.CategoryType -eq "Metrics"){$metric+=New-AzDiagnosticSettingMetricSettingsObject -Enabled $true -Category $.Name -RetentionPolicyDay 7 -RetentionPolicyEnabled $true} else{$log+=New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category $_.Name -RetentionPolicyDay 7 -RetentionPolicyEnabled $true}}

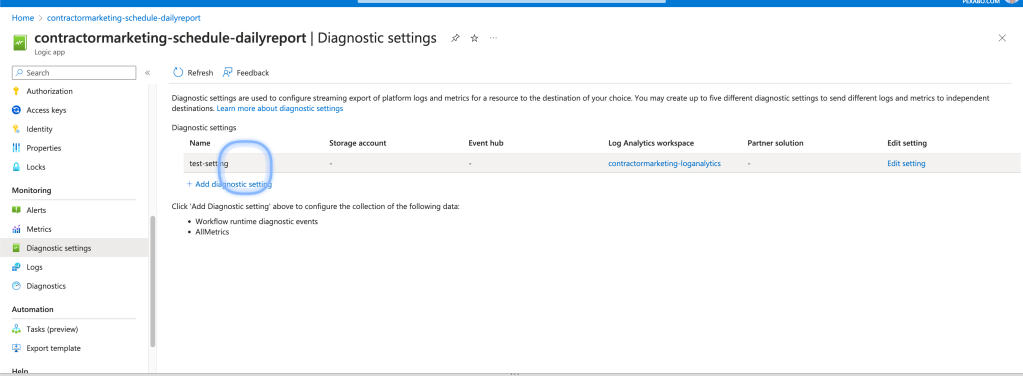

New-AzDiagnosticSetting -Name test-setting -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics -Log $log -Metric $metric
still missing

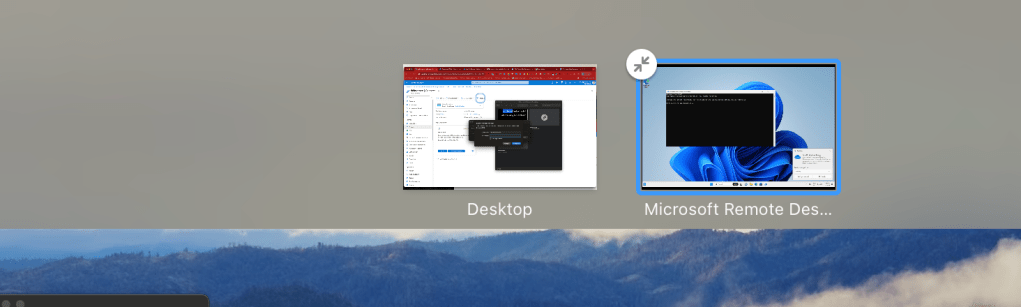

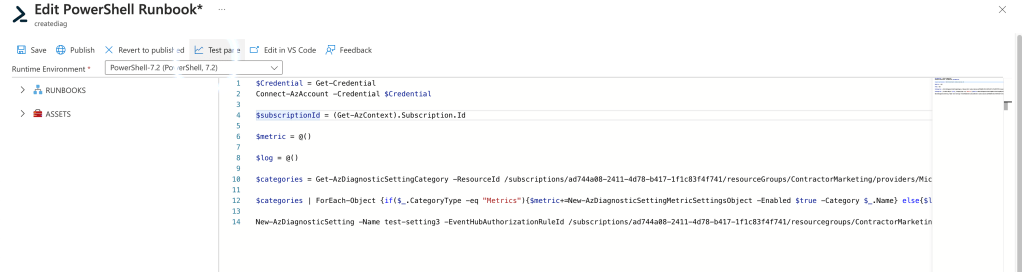

bigger screen needed

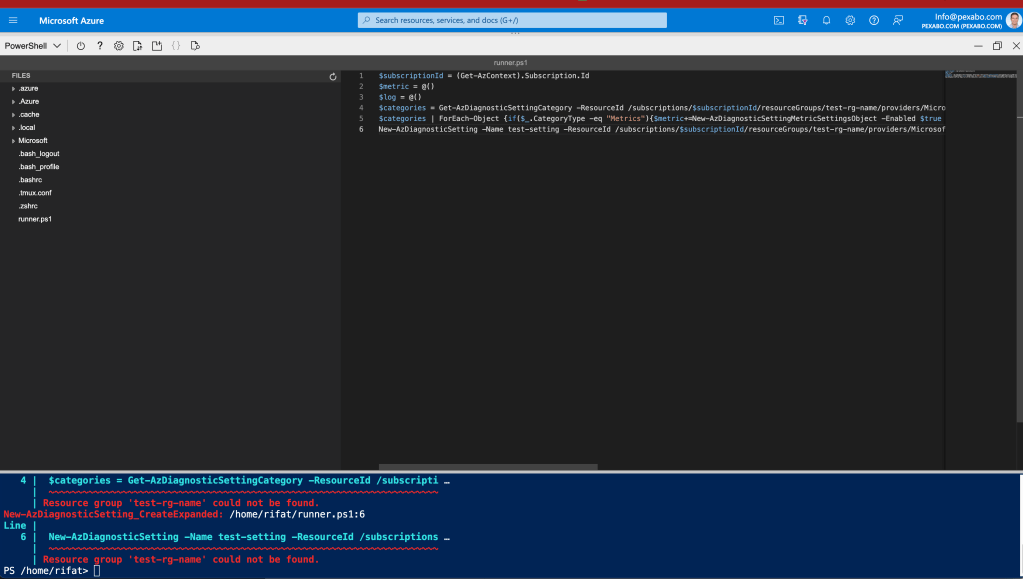

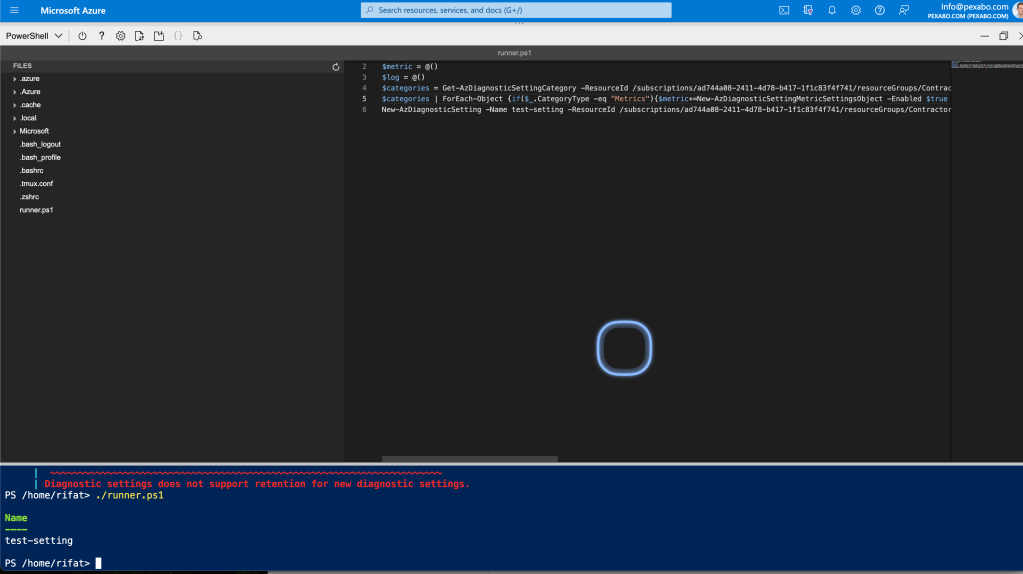

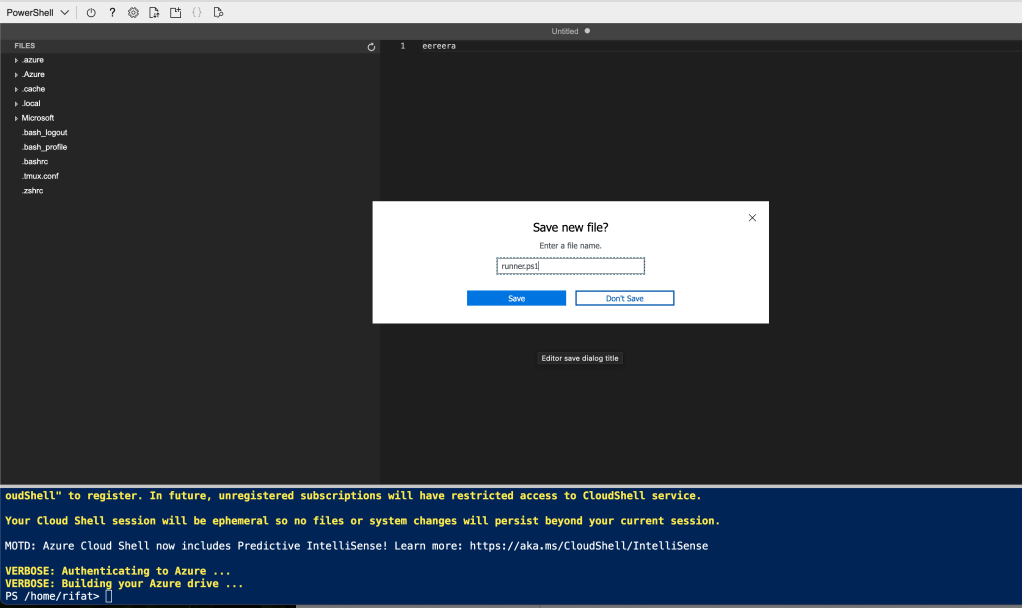

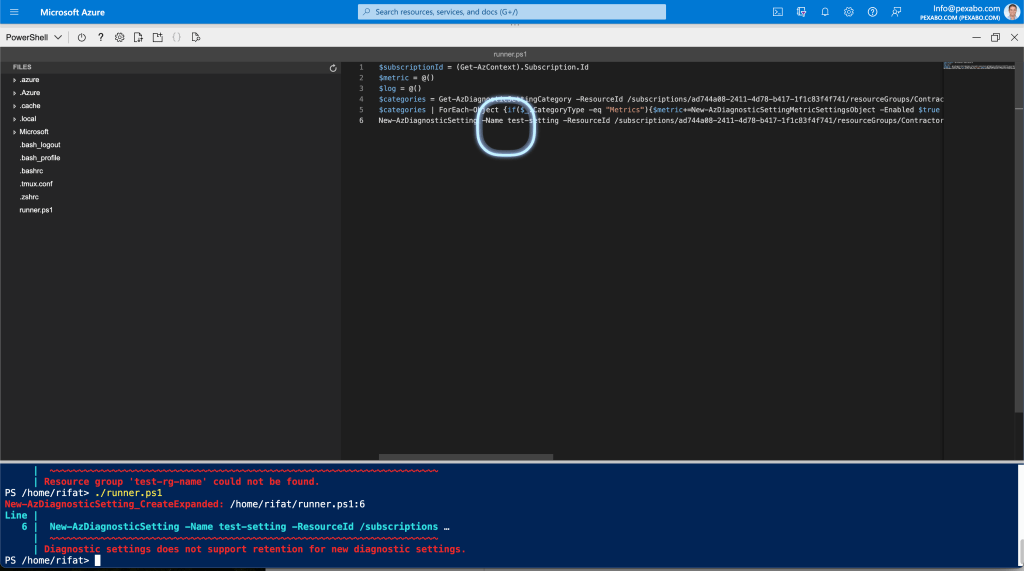

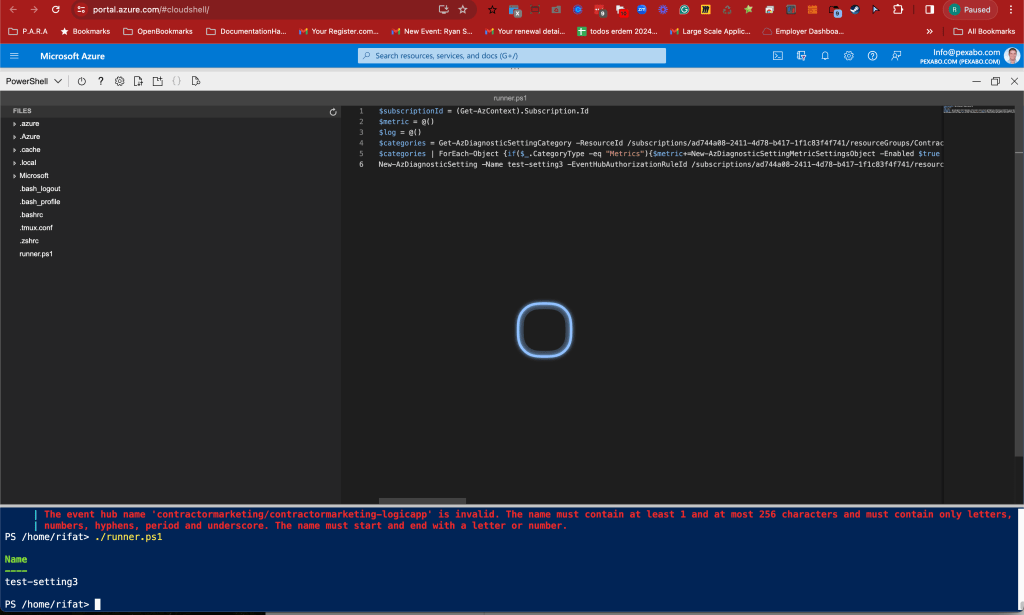

runner ps1
bigger action can be run
Longer script testing is there
cloud runner took time
$subscriptionId = (Get-AzContext).Subscription.Id
$metric = @()
$log = @()
$categories = Get-AzDiagnosticSettingCategory -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport
$categories | ForEach-Object {if($.CategoryType -eq "Metrics"){$metric+=New-AzDiagnosticSettingMetricSettingsObject -Enabled $true -Category $.Name} else{$log+=New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category $_.Name}}
New-AzDiagnosticSetting -Name test-setting -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics -Log $log -Metric $metric

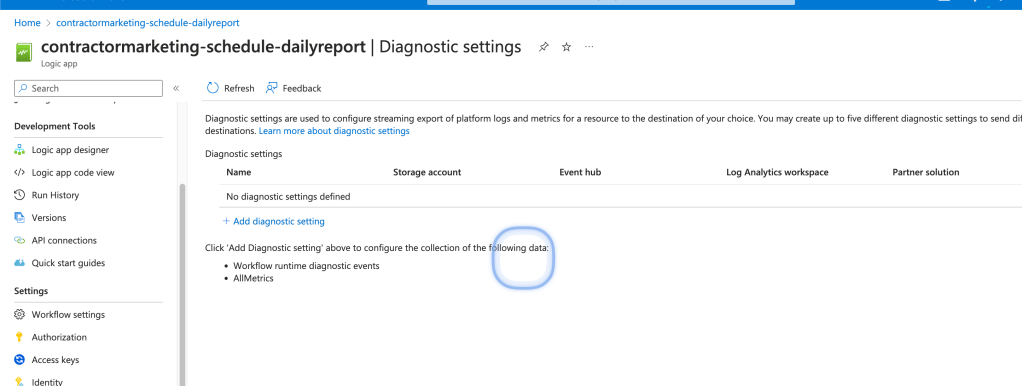

Missing settings

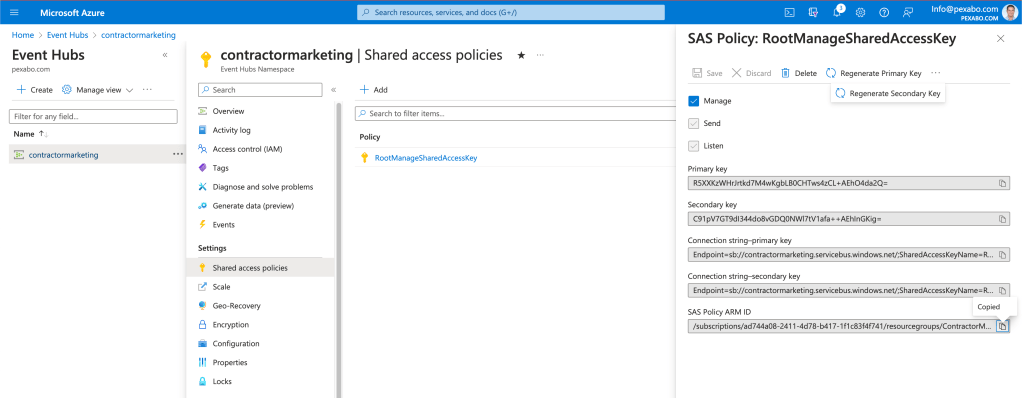

arm id
too many settings

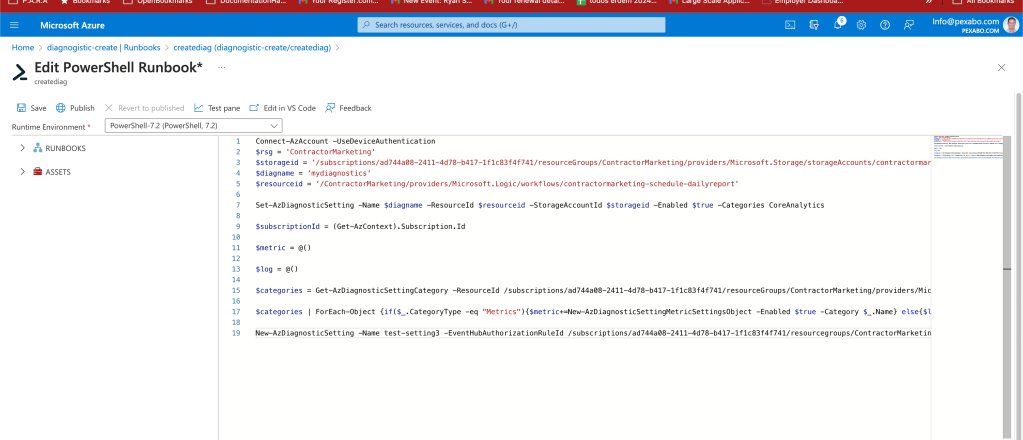

$subscriptionId = (Get-AzContext).Subscription.Id
$metric = @()
$log = @()
$categories = Get-AzDiagnosticSettingCategory -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport
$categories | ForEach-Object {if($.CategoryType -eq "Metrics"){$metric+=New-AzDiagnosticSettingMetricSettingsObject -Enabled $true -Category $.Name} else{$log+=New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category $_.Name}}
New-AzDiagnosticSetting -Name test-setting3 -EventHubAuthorizationRuleId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/ContractorMarketing/providers/Microsoft.EventHub/namespaces/contractormarketing/authorizationrules/RootManageSharedAccessKey -EventHubName contractormarketing-logicapp -StorageAccountId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Storage/storageAccounts/contractormarketing -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics -Log $log -Metric $metric

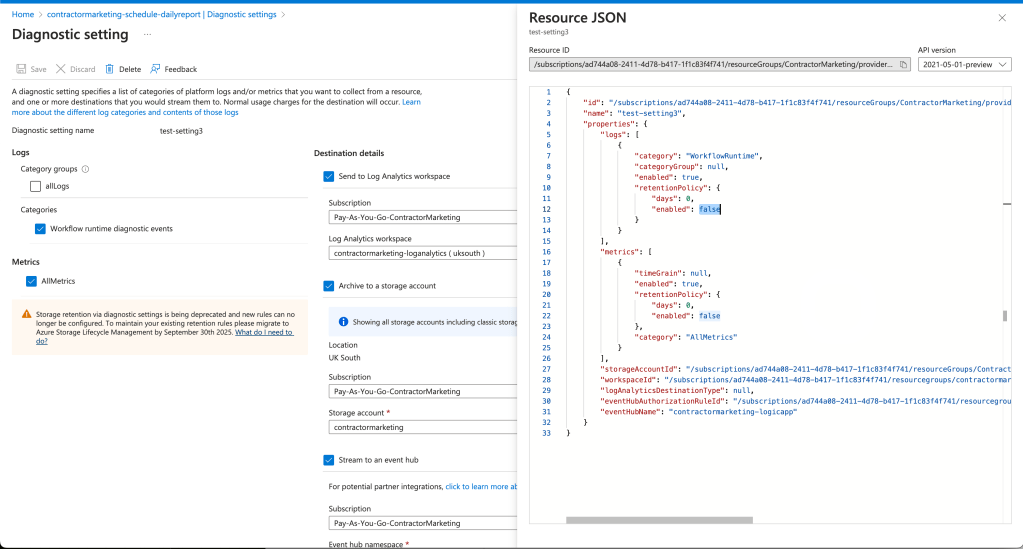

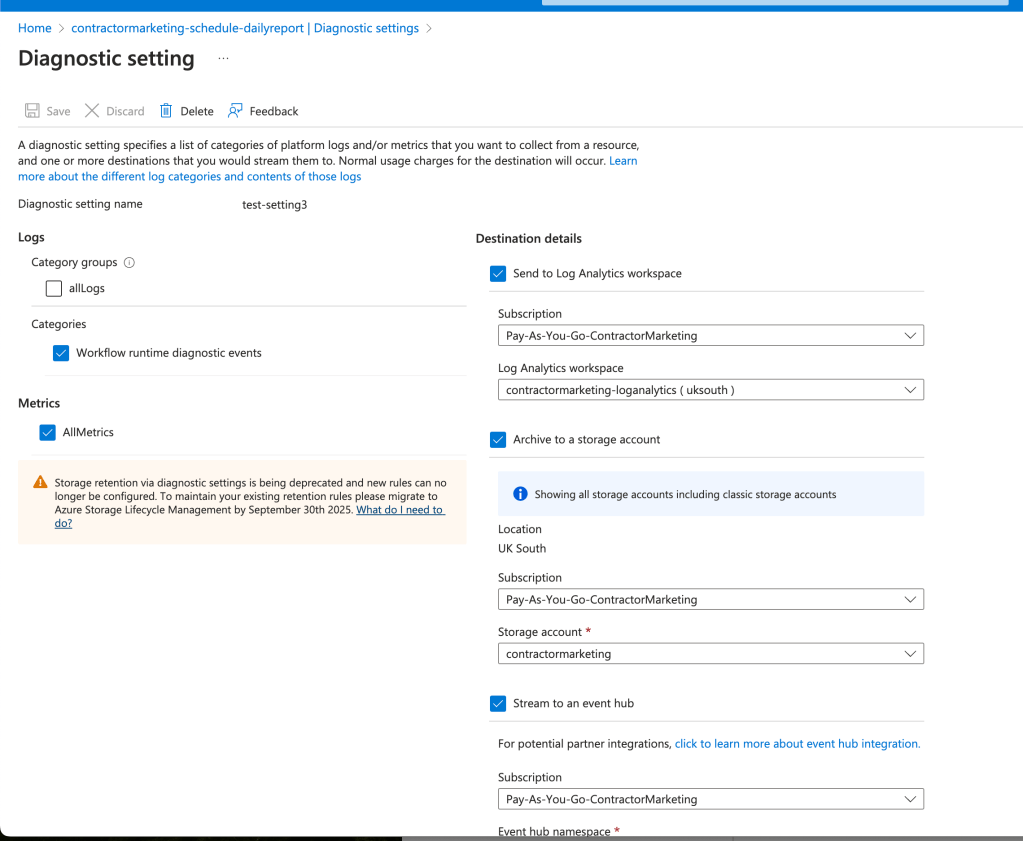

other than alllogs selected
go with what you can

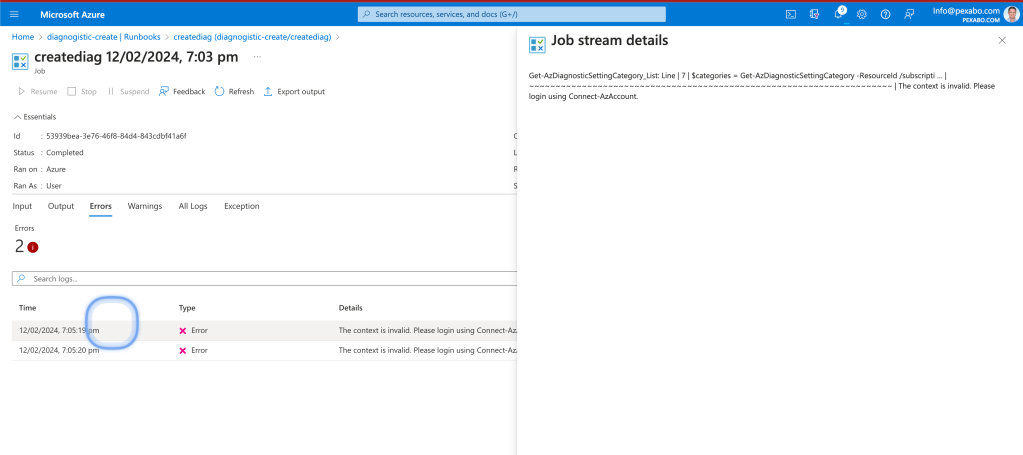

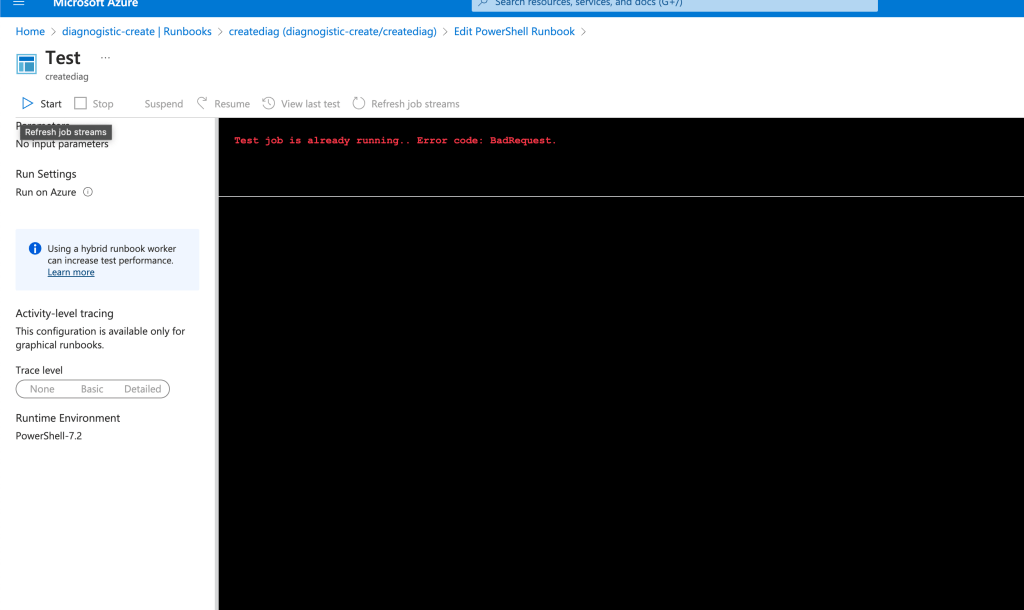

still cant run something new?

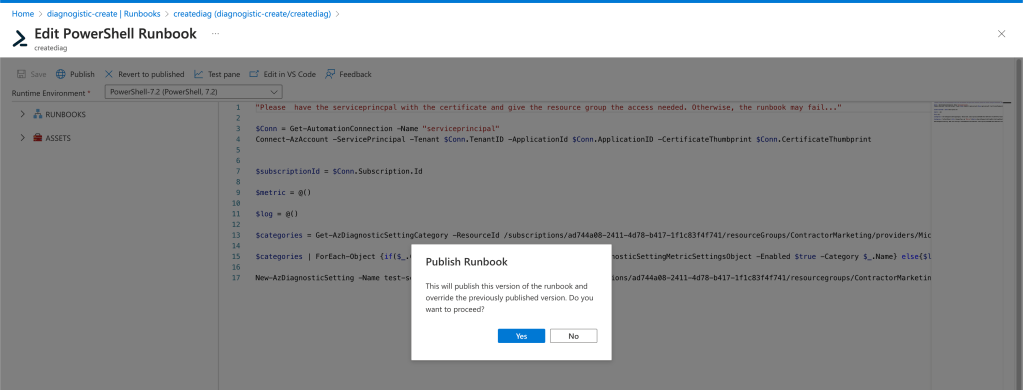

republish to overwrite and rerun
better errors
maybe i connect it
added to the top

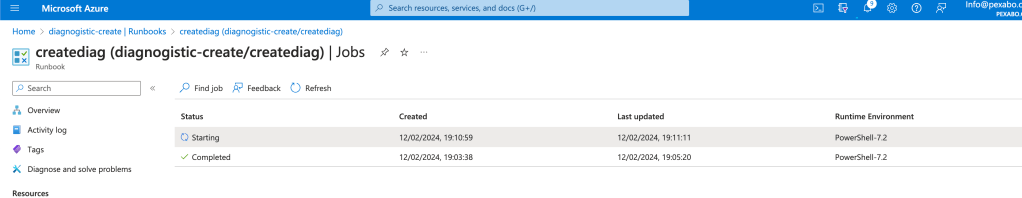

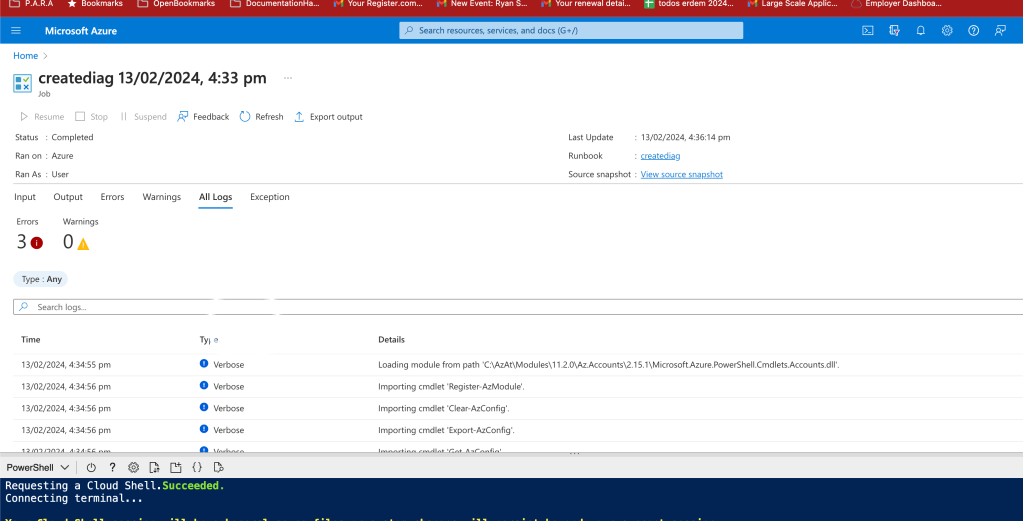

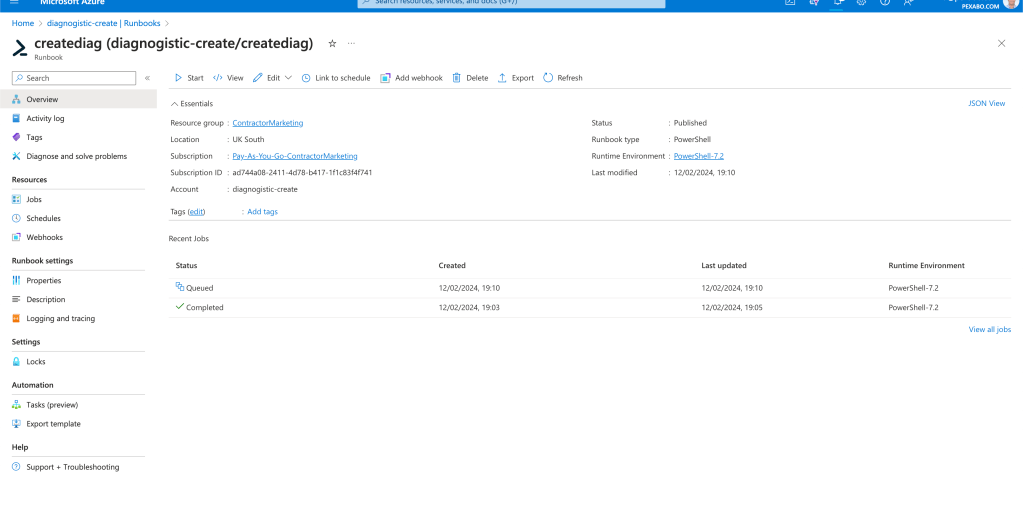

at least i can see the runs
much longer runtime
automation run has issues

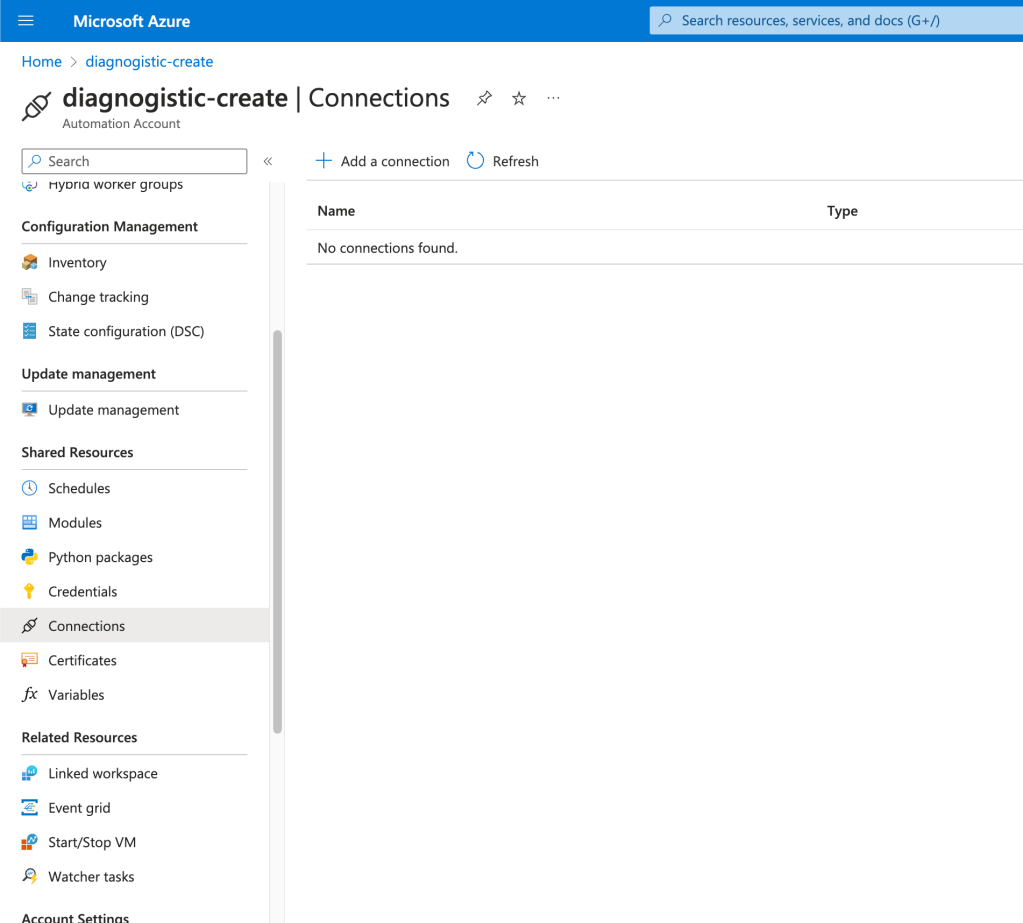

the connections it has

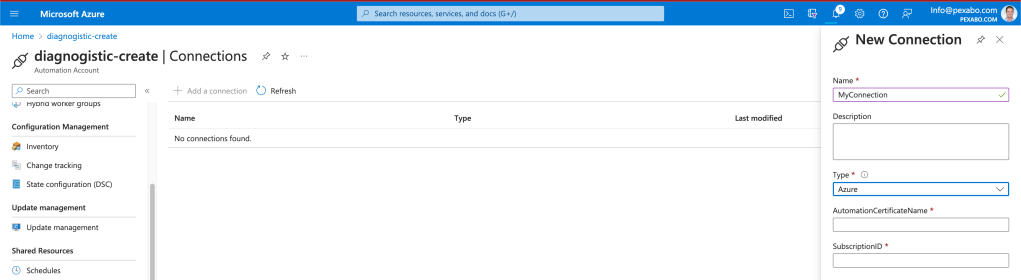

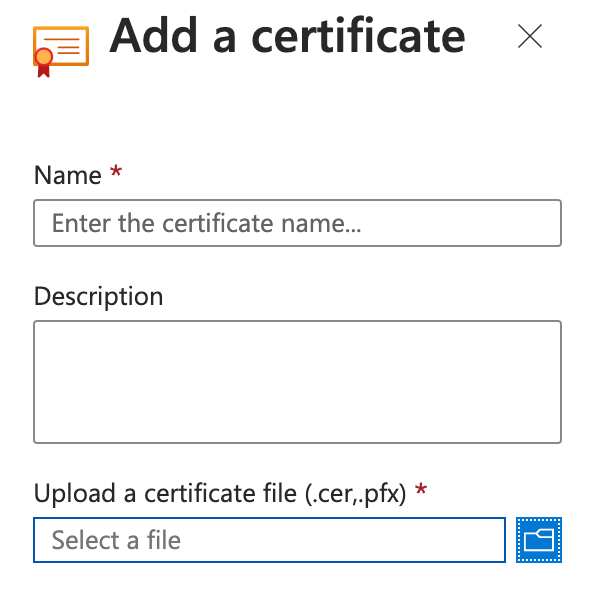

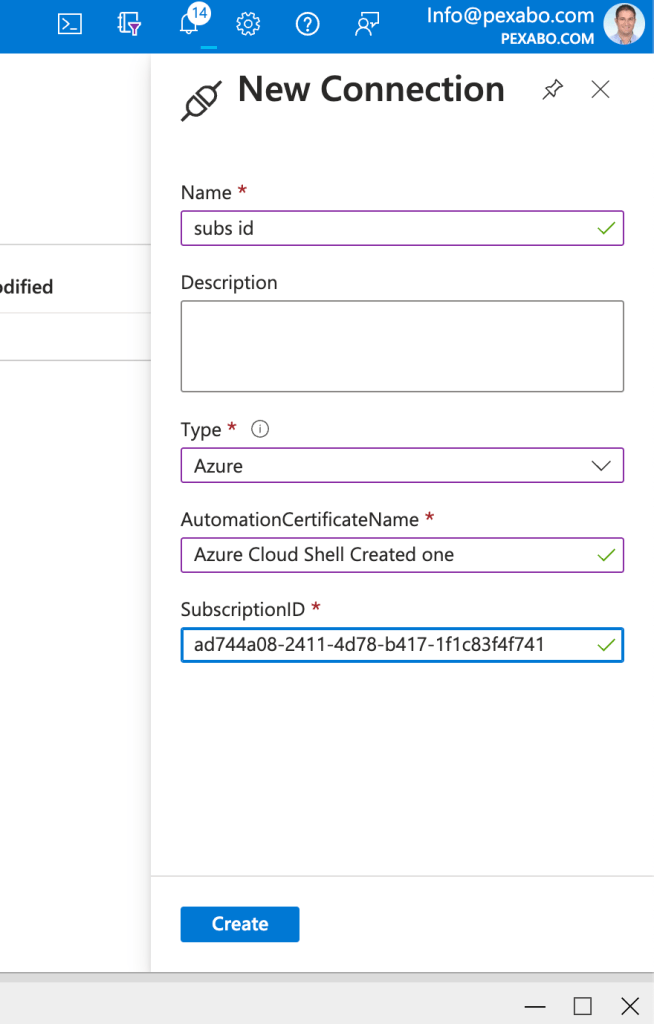

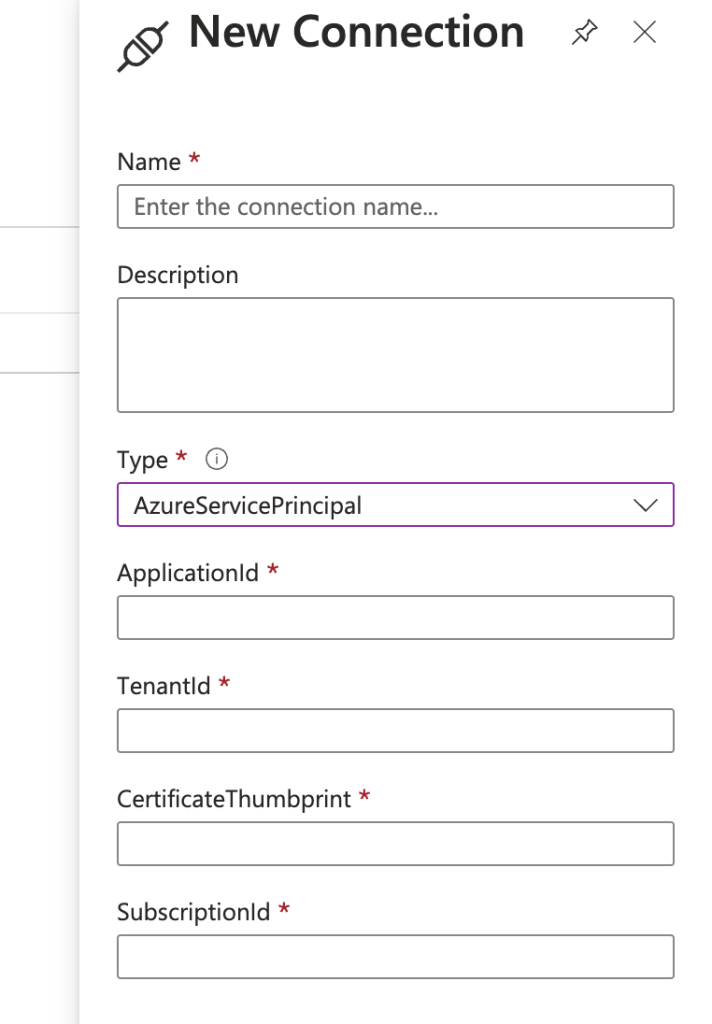

Add Connection
here we need a cert
https://github.com/Huachao/azure-content/blob/master/articles/automation/automation-certificates.md
this one can not create it

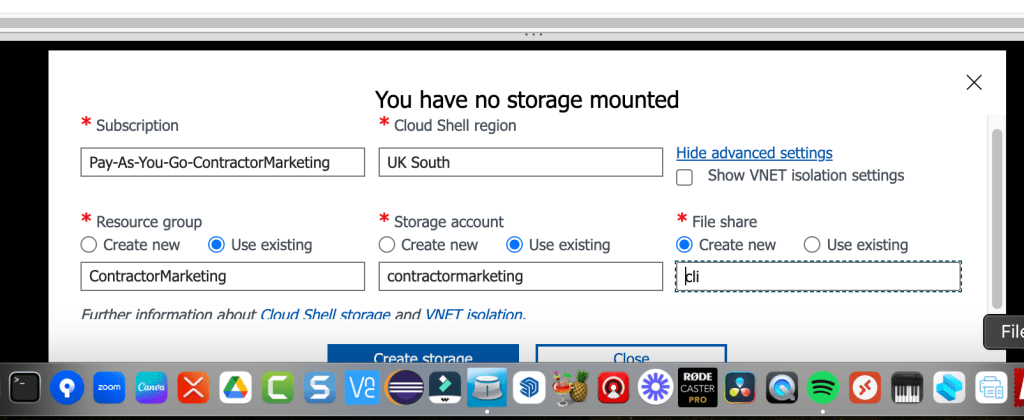

Open cloud shell to try it

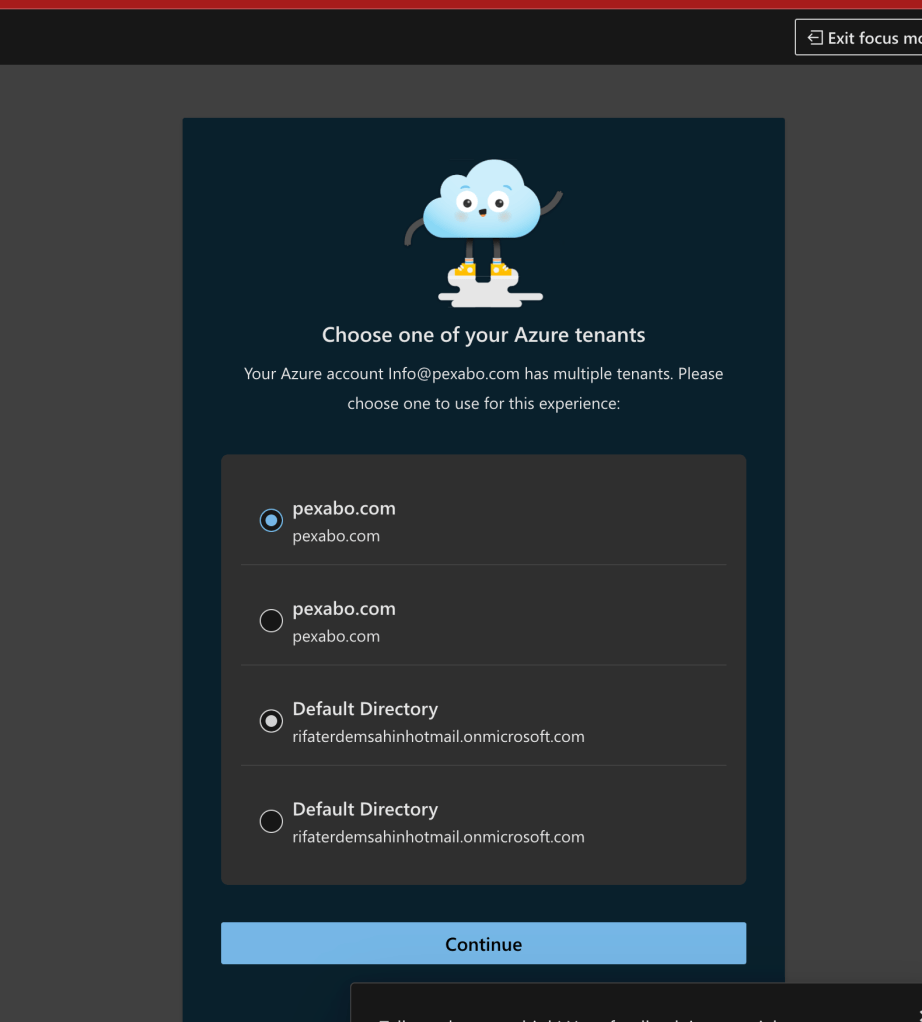

tenant selection
based on a resource group as well
Create the automation account and delete it
certificate uploader should have rights to the folder
Longer time to create

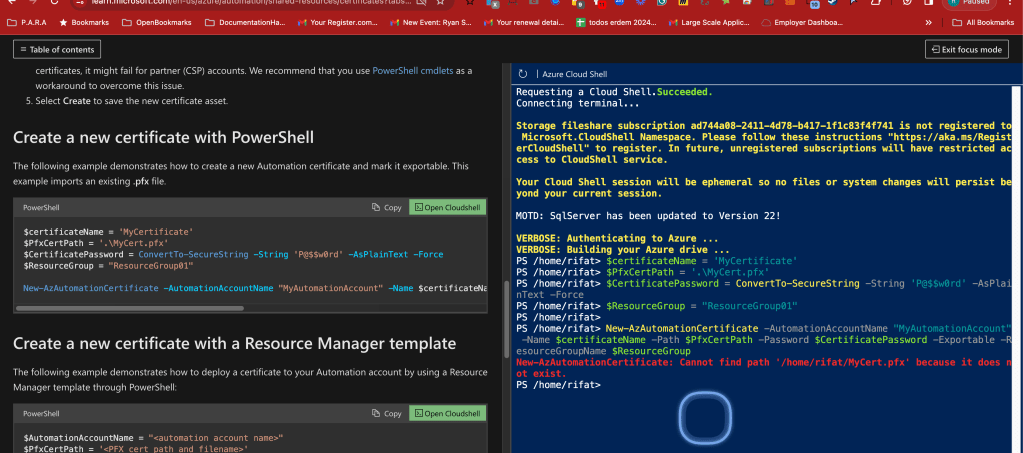

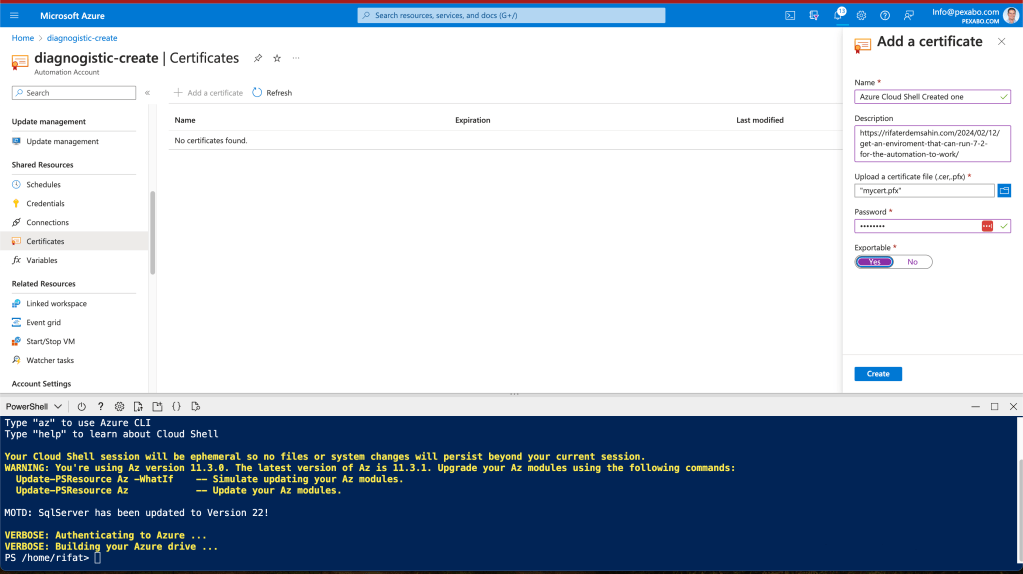

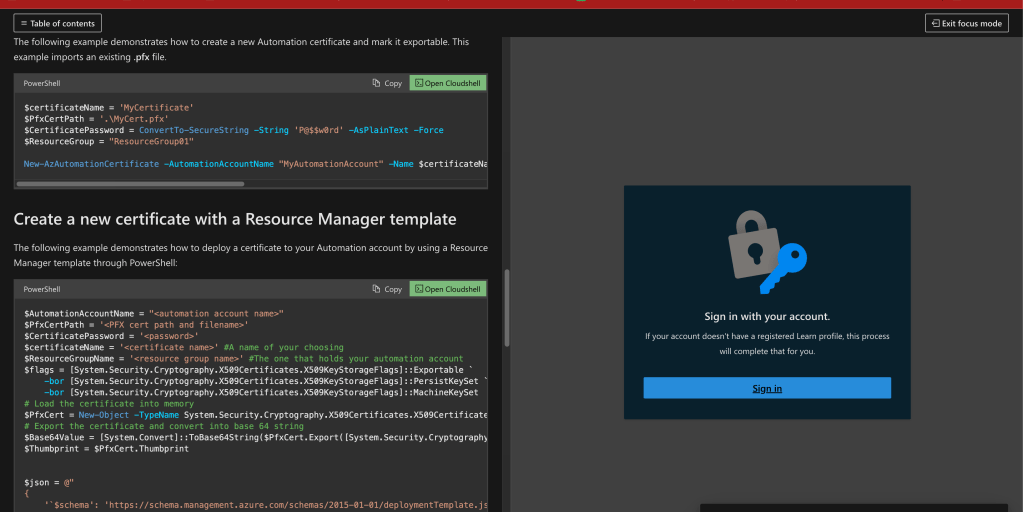

$certName = 'MyCertificate'
$certPath = '.\MyCert.pfx'
$certPwd = ConvertTo-SecureString -String 'YY.....' -AsPlainText -Force

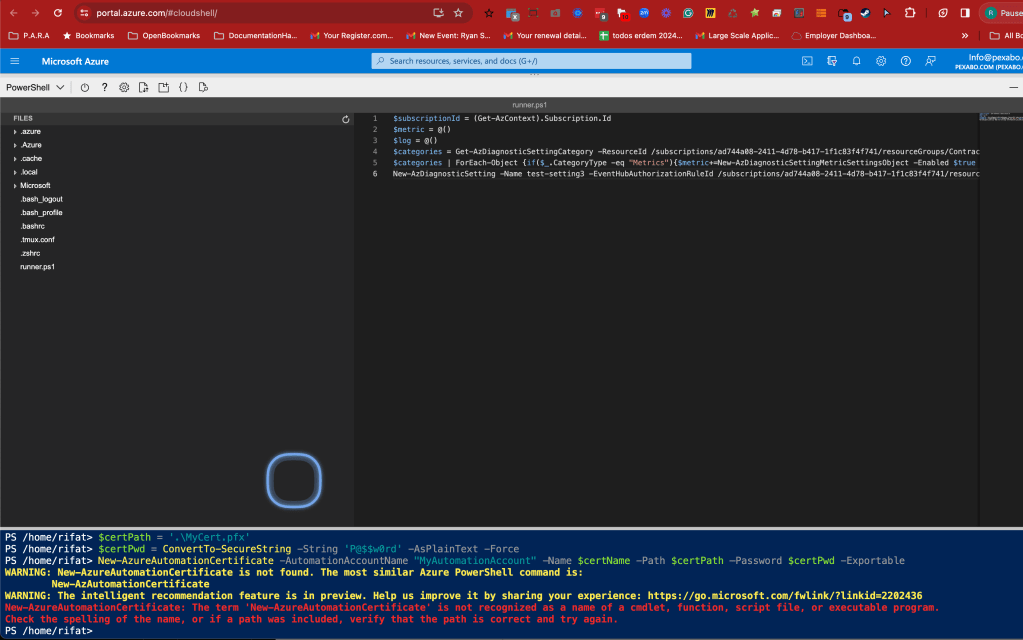

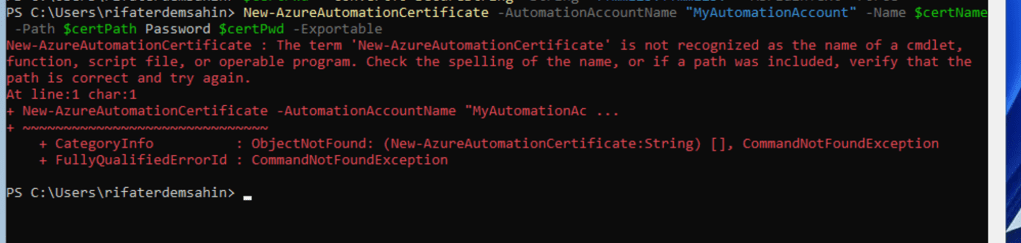

New-AzureAutomationCertificate -AutomationAccountName "MyAutomationAccount" -Name $certName -Path $certPath –Password $certPwd -Exportable
in 5 i am in

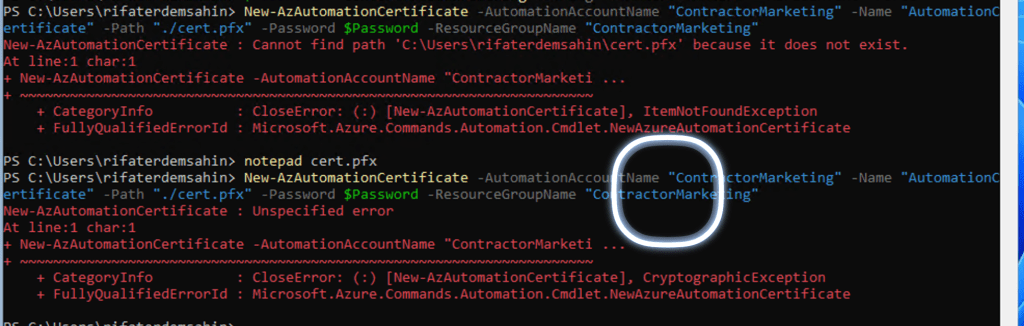

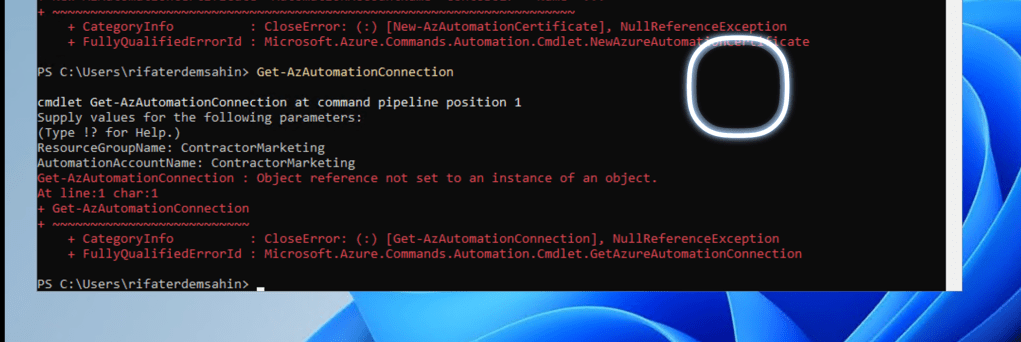

again the same error

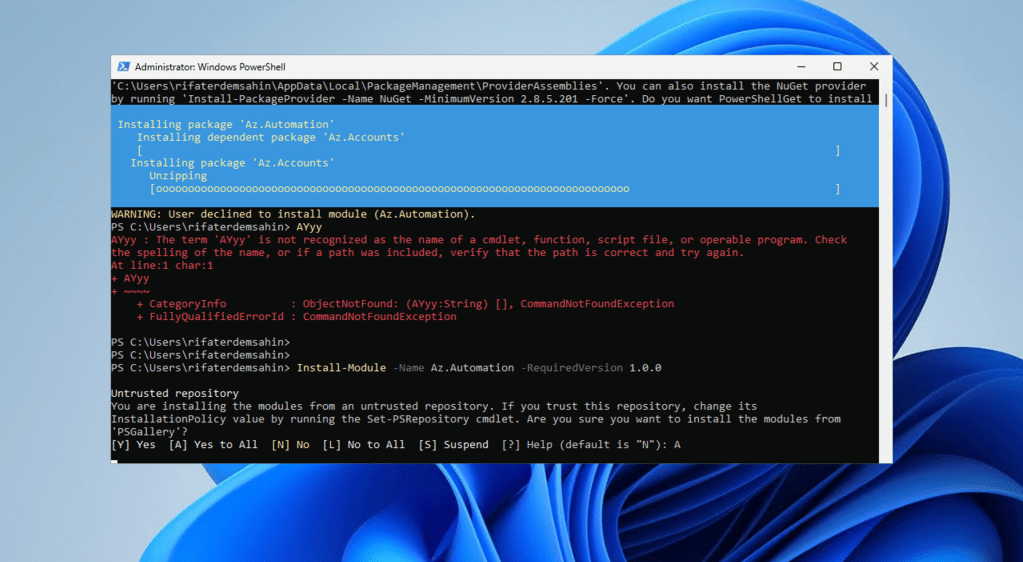

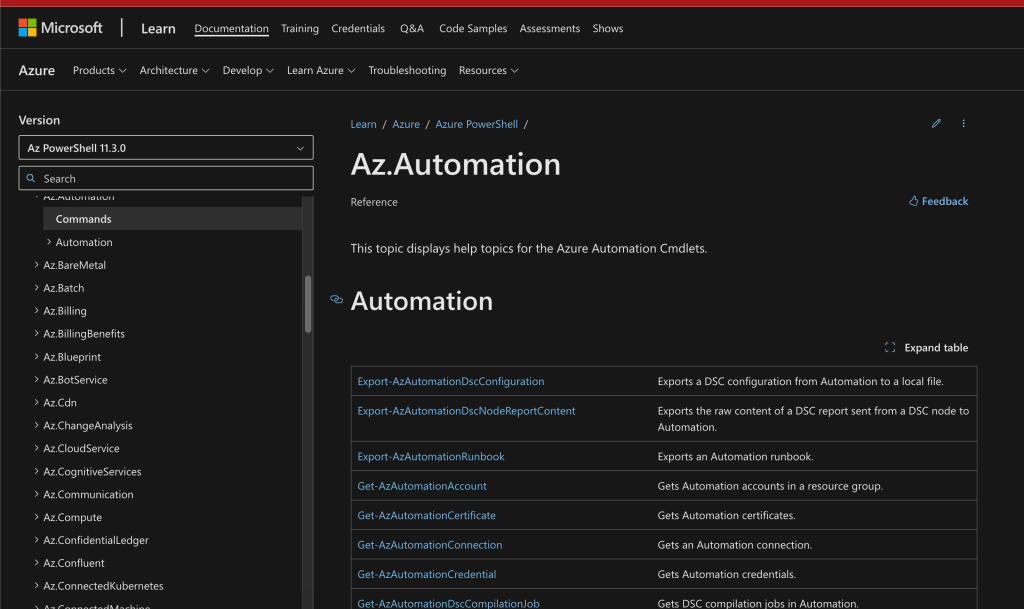

install Az.Automation
correct one gets installed by ease
can not create it in the cloud as well
Feels like a none connetion error
First principles

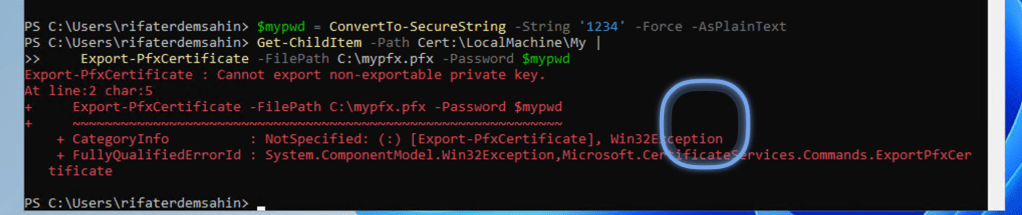

Creating the pfx file also did not work
maybe a valid one has to be there

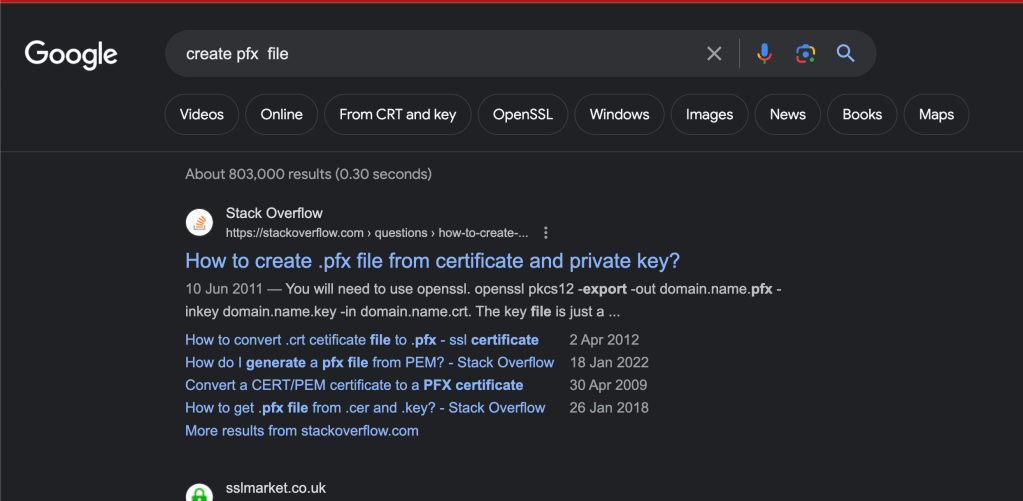

creating your certificate file
https://www.advancedinstaller.com/what-is-pfx-certificate.html
Read from scratch

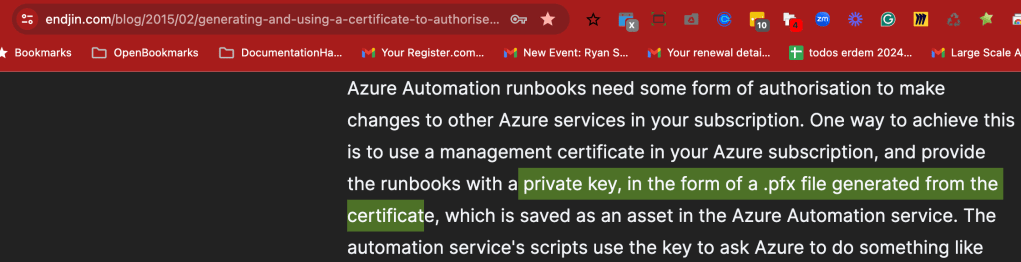

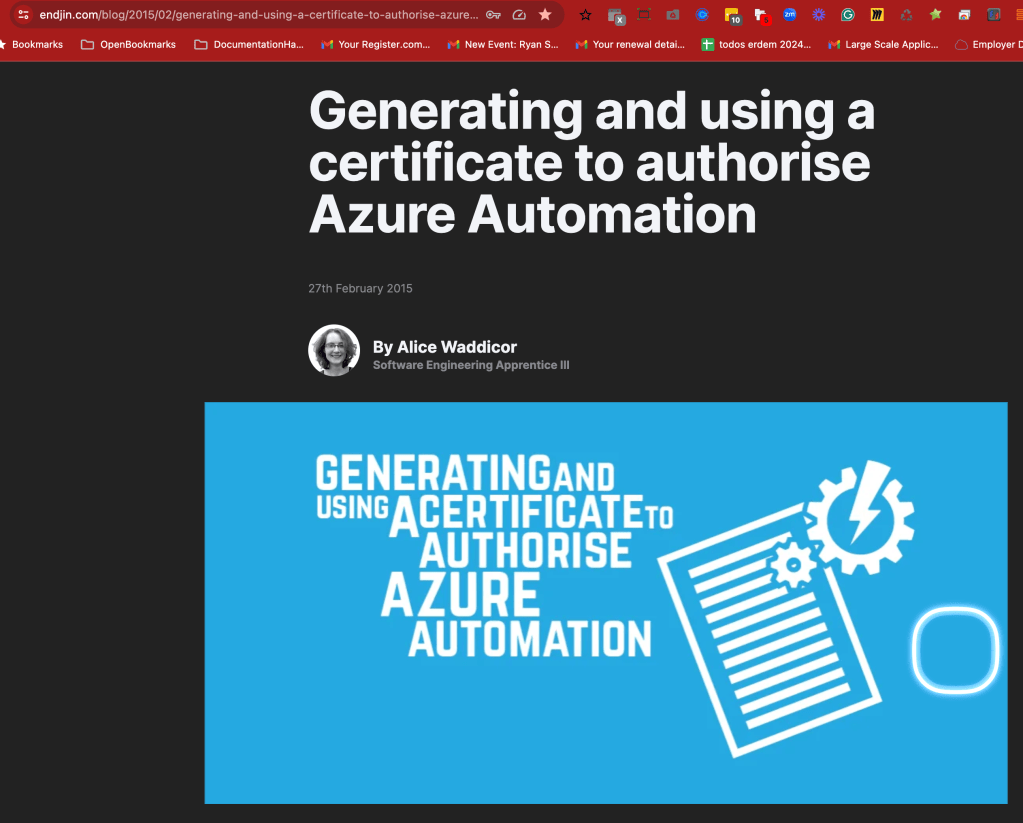

https://endjin.com/blog/2015/02/generating-and-using-a-certificate-to-authorise-azure-automation
certificate creation

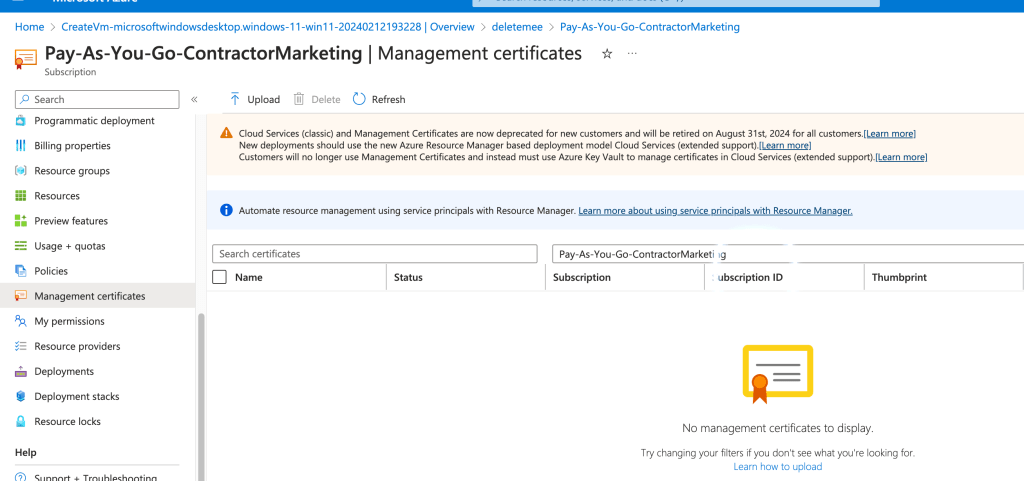

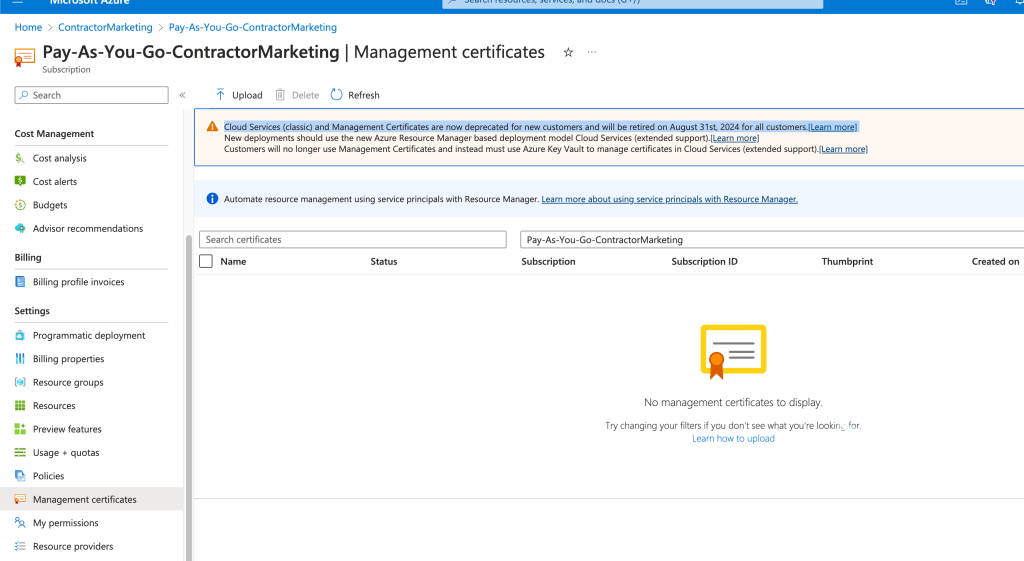

There is also changes in the back for the security

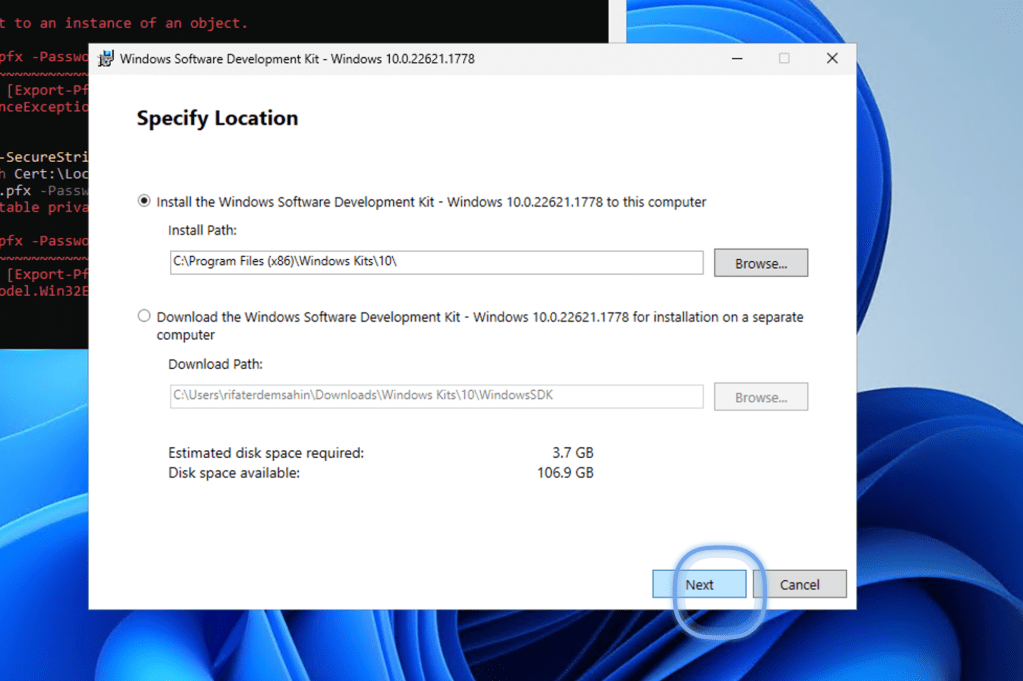

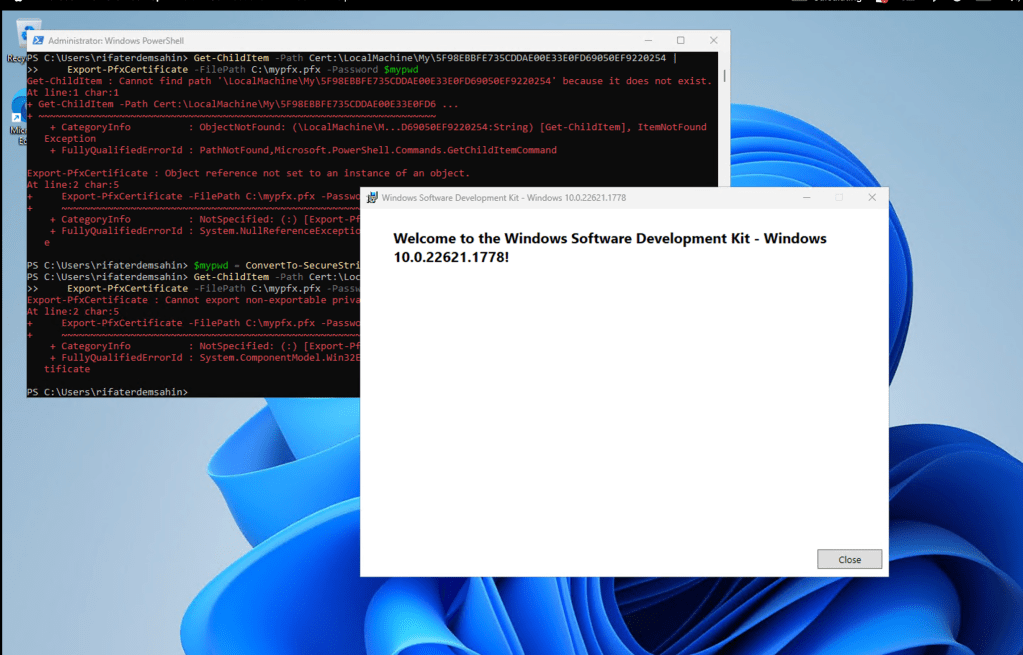

Dev kit
good packing with problem solution fit
https://endjin.com/blog/2015/02/generating-and-using-a-certificate-to-authorise-azure-automation
powershell did not work

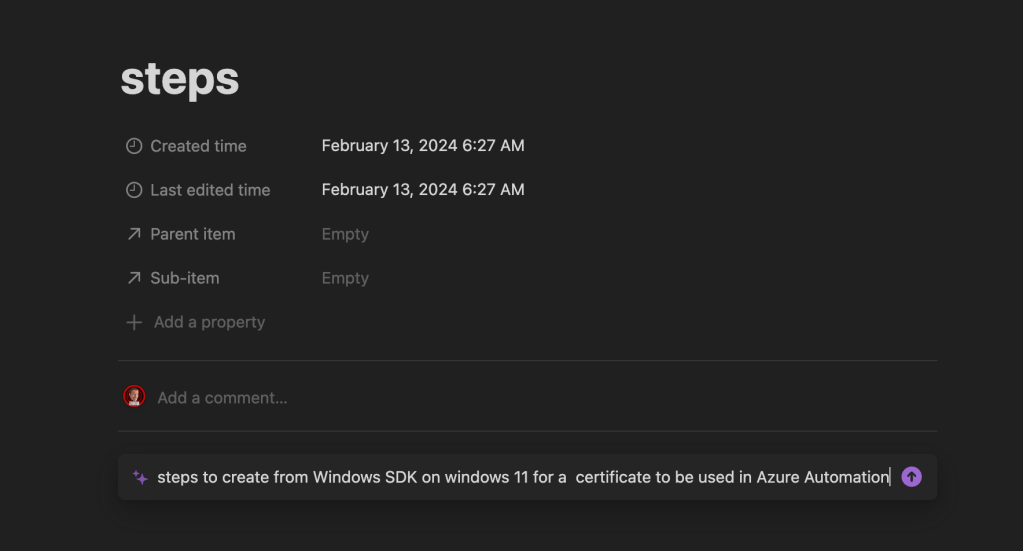

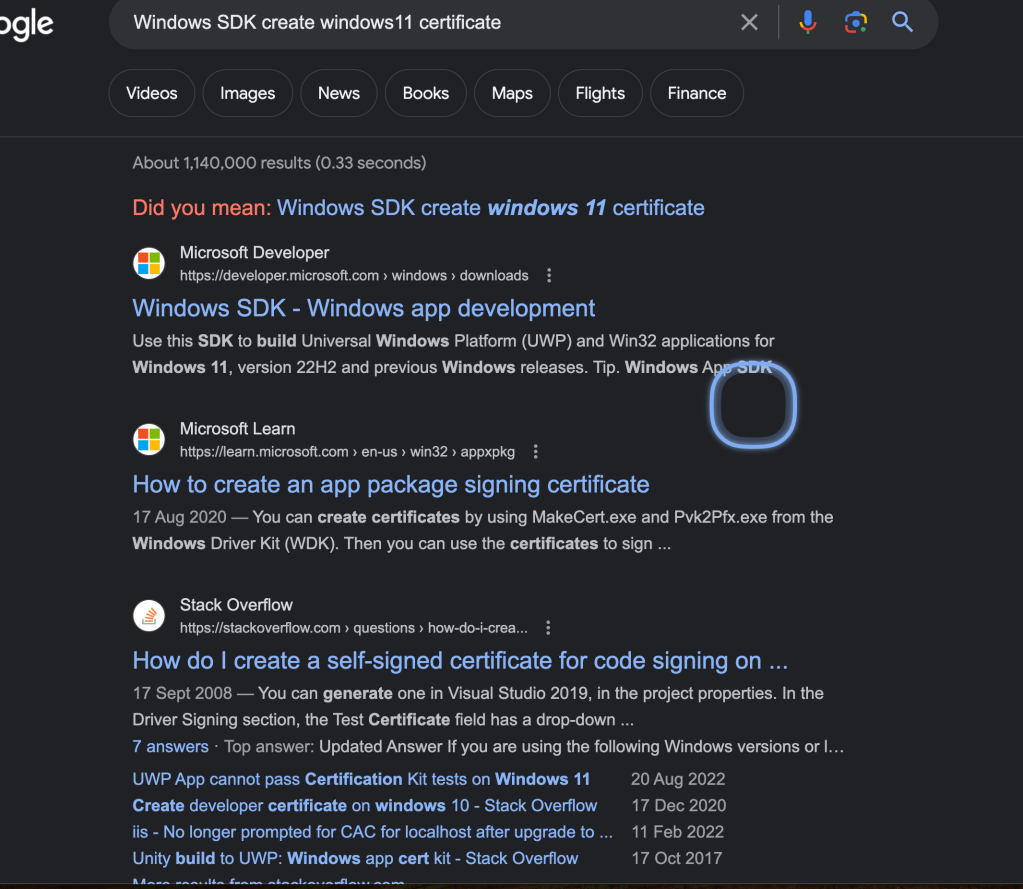

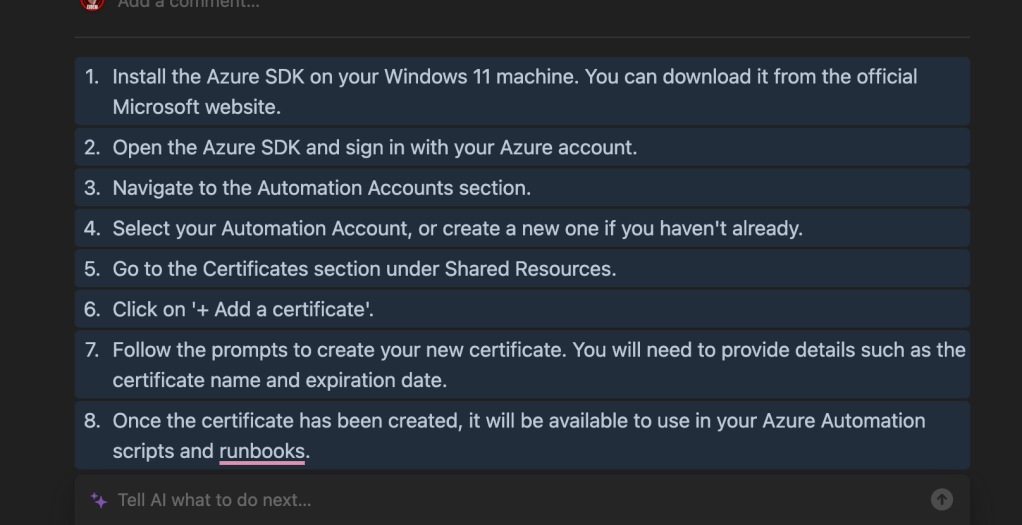

google might not be the great answer check gpt

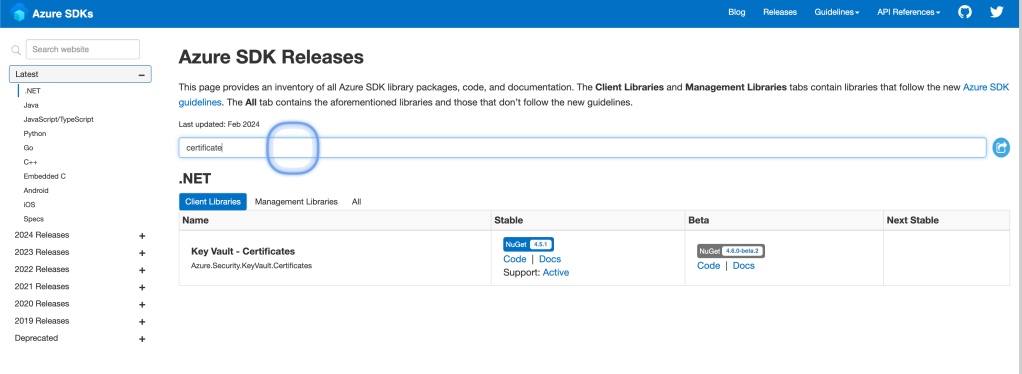

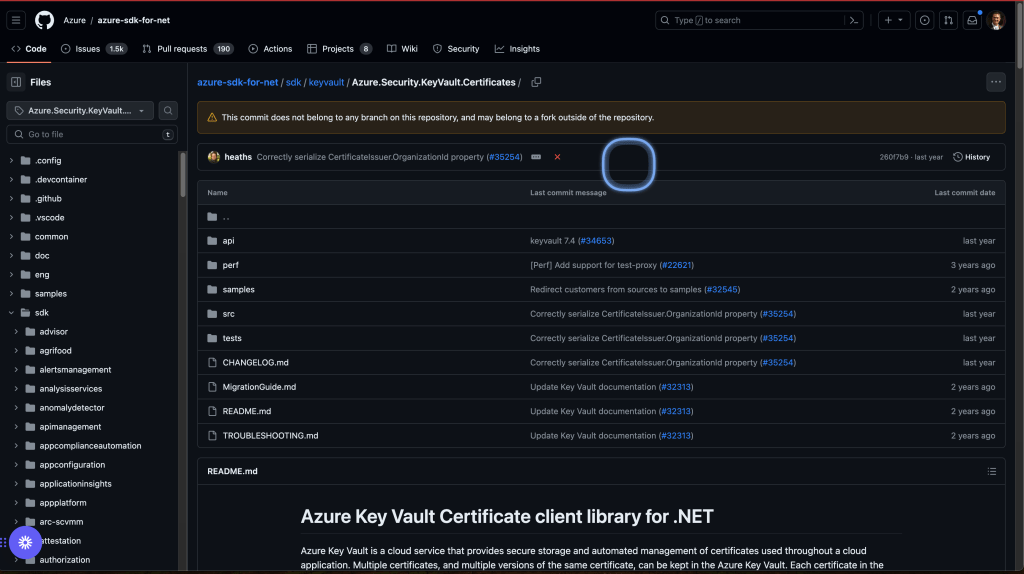

difference it is Azure SDK
https://azure.github.io/azure-sdk/releases/latest/dotnet.html
feels most modern
https://learn.microsoft.com/en-gb/dotnet/api/overview/azure/security.keyvault.certificates-readme?view=azure-dotnet

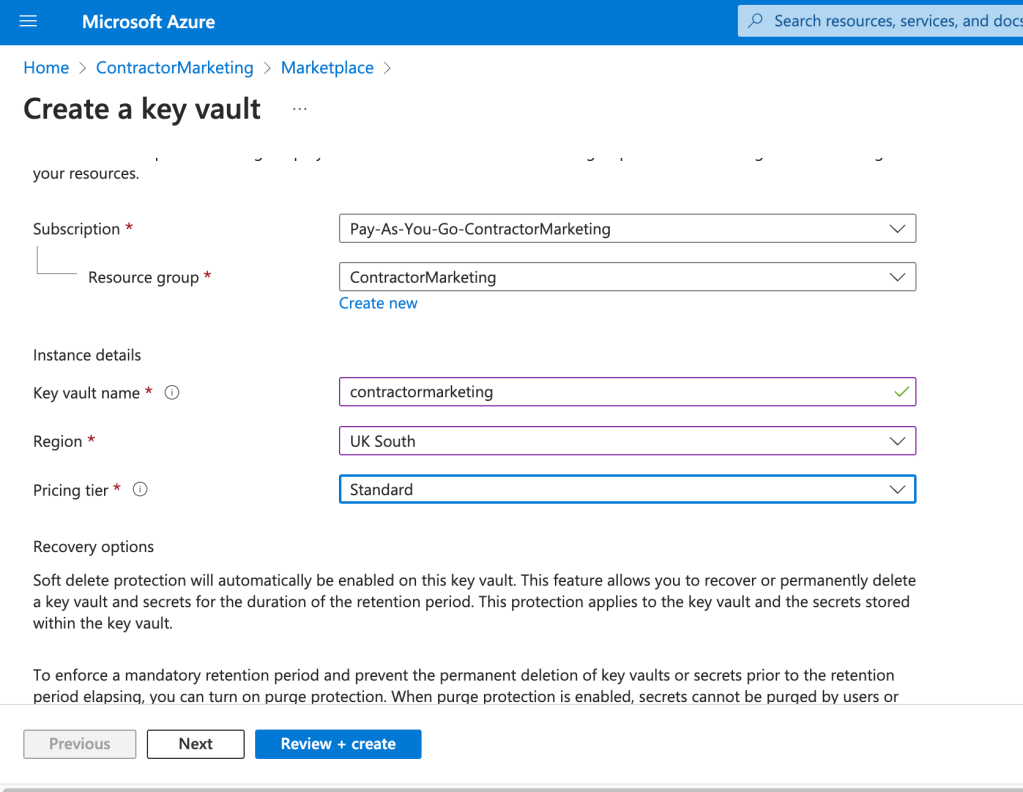

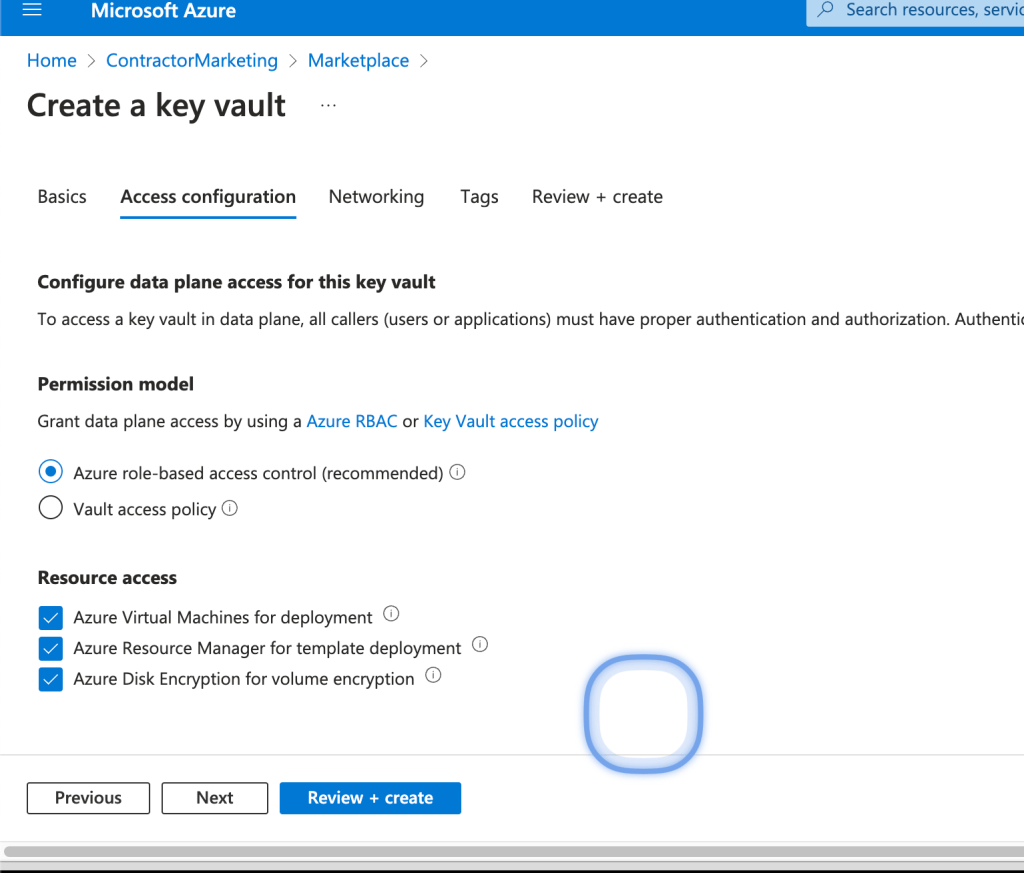

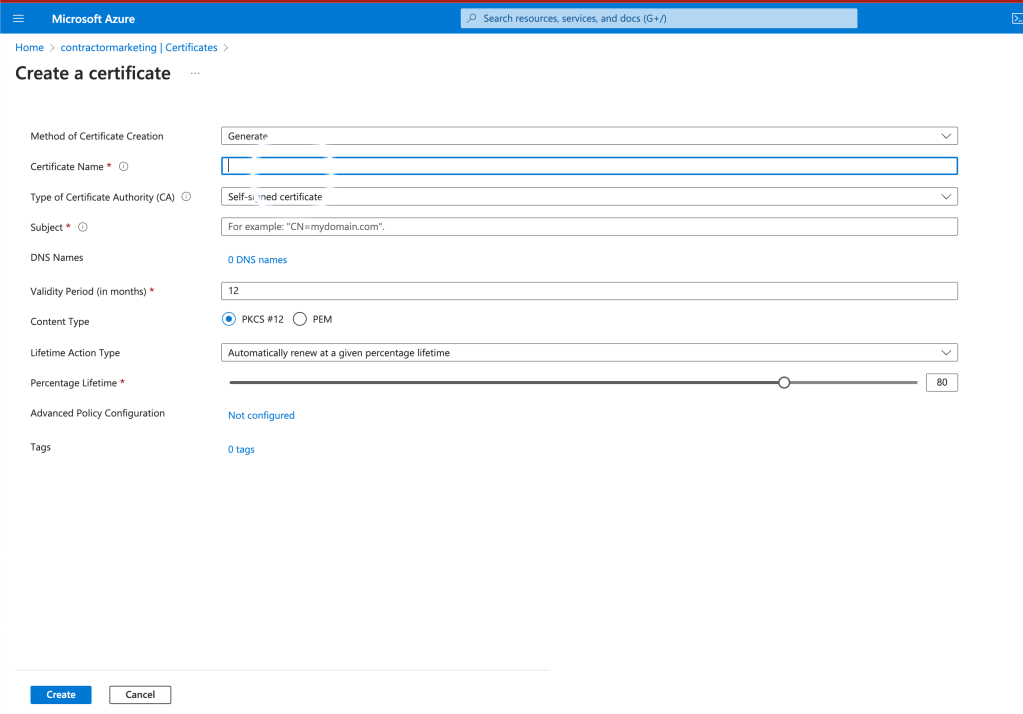

have a keyvault
now there is create and chat option
this could be promising > during the day

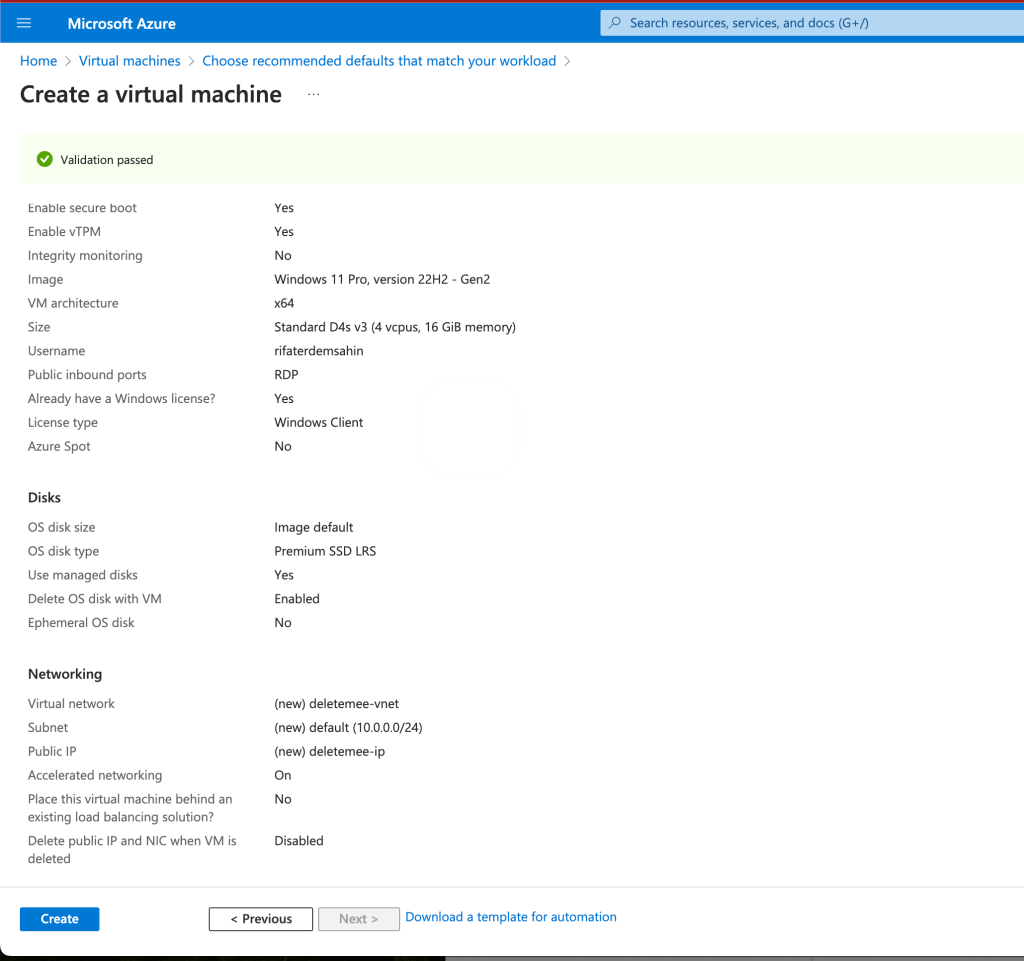

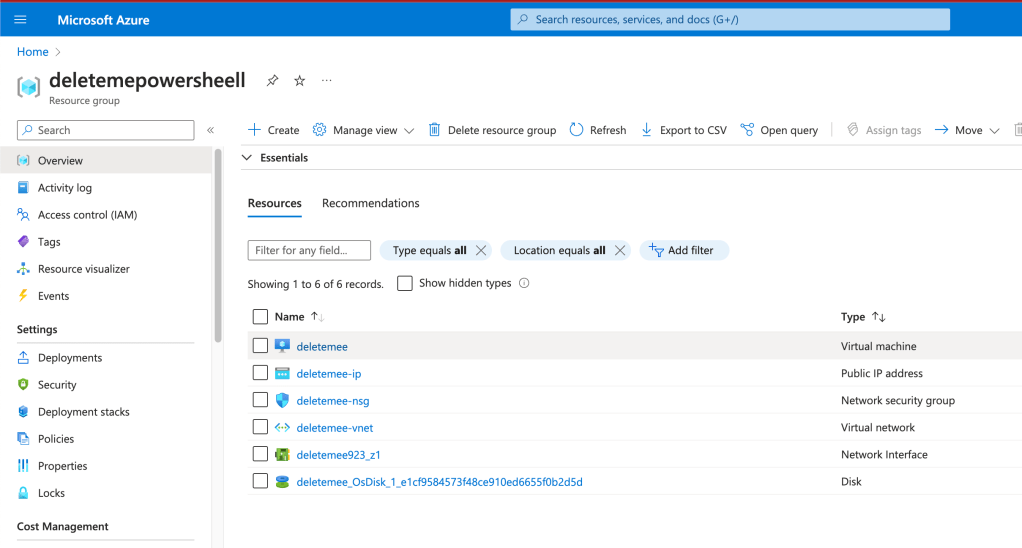

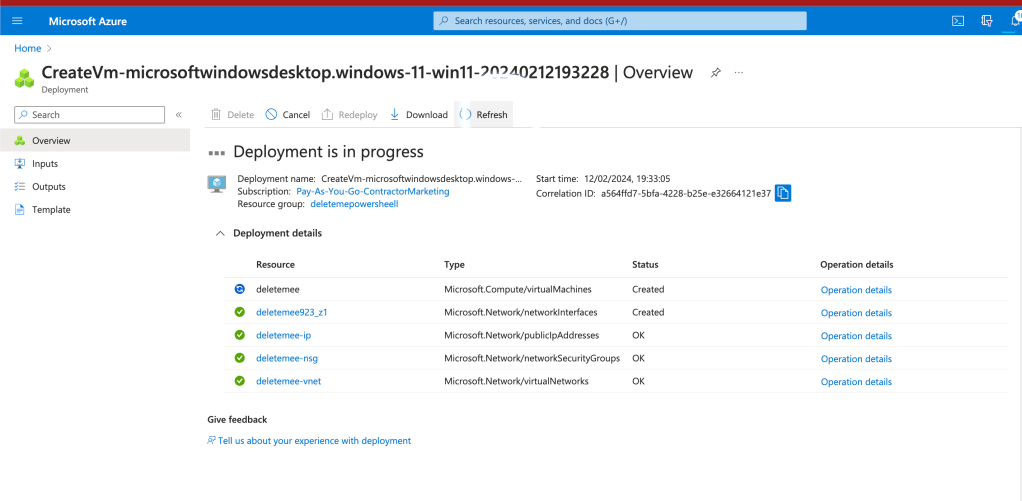

I do not wanna use a VM to create a key where i forget it on

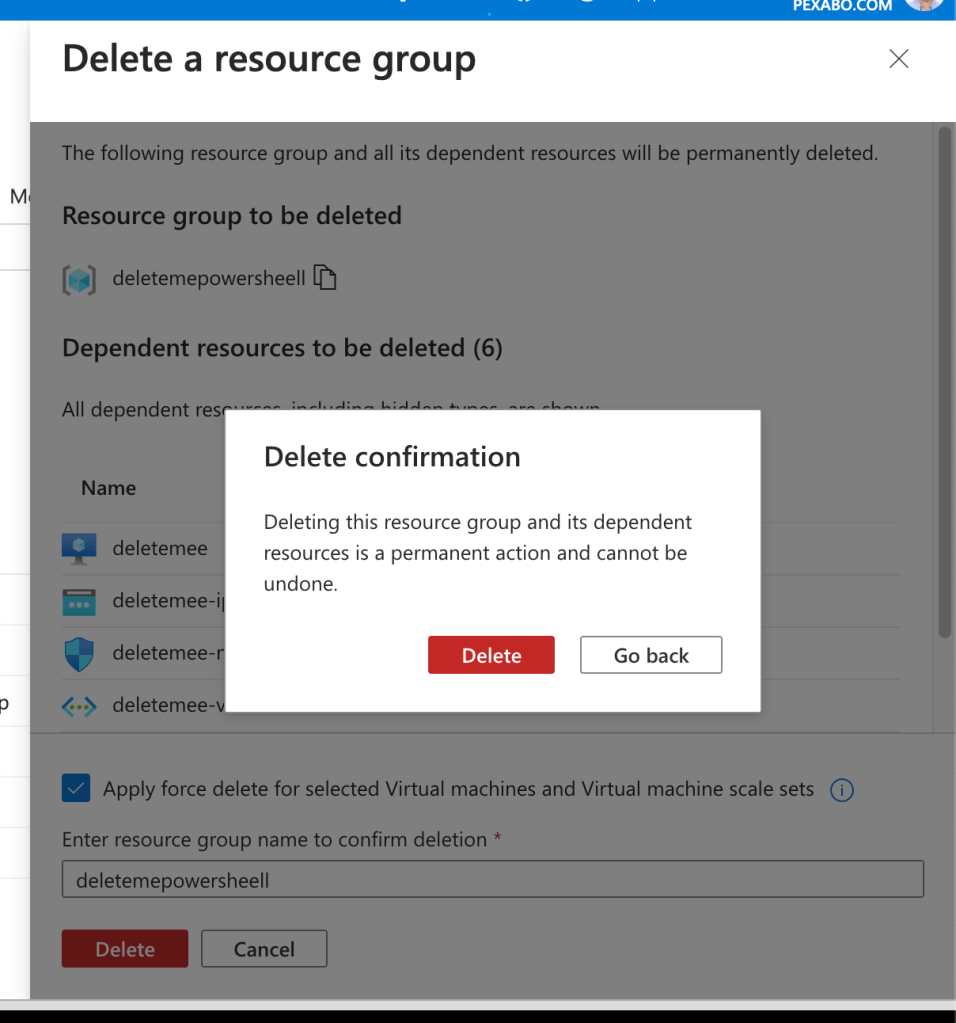

I am deleting it.
Deleted it > if i can create the certificate in the cloud shell that works

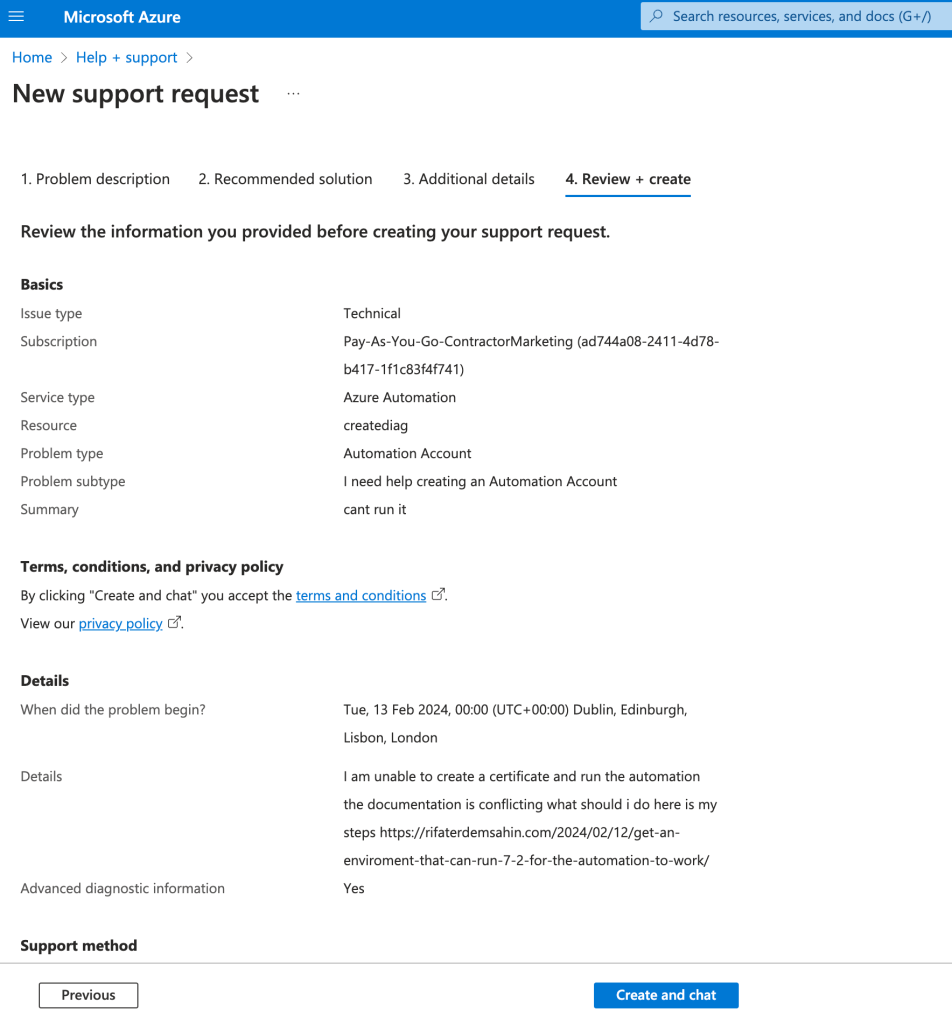

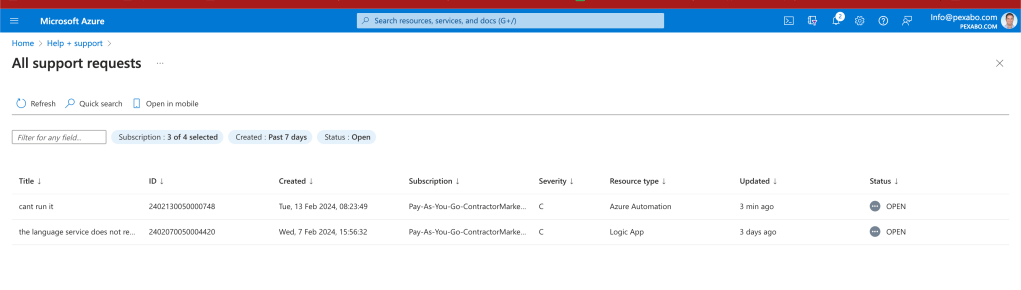

Active tickets to be there to be in the handson action > leverage the support

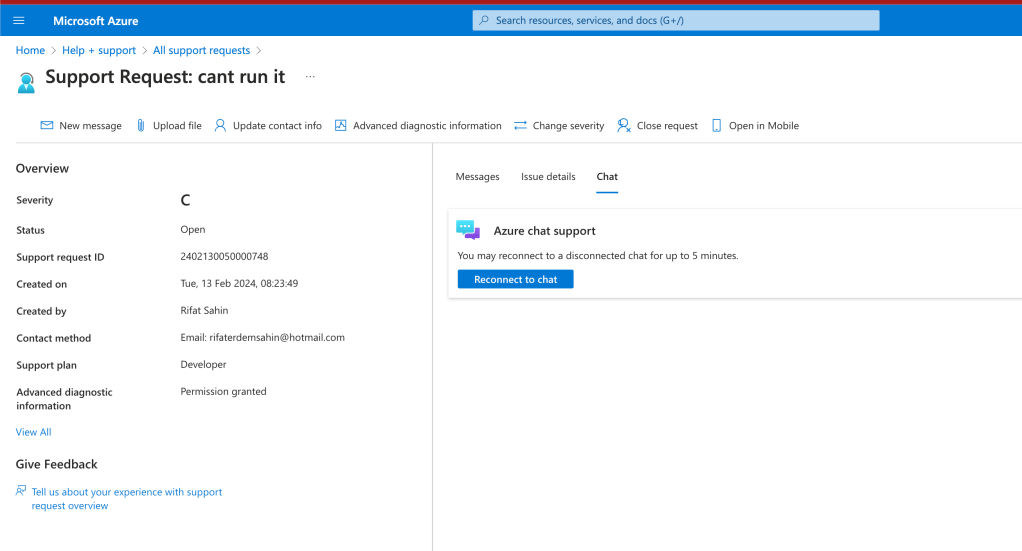

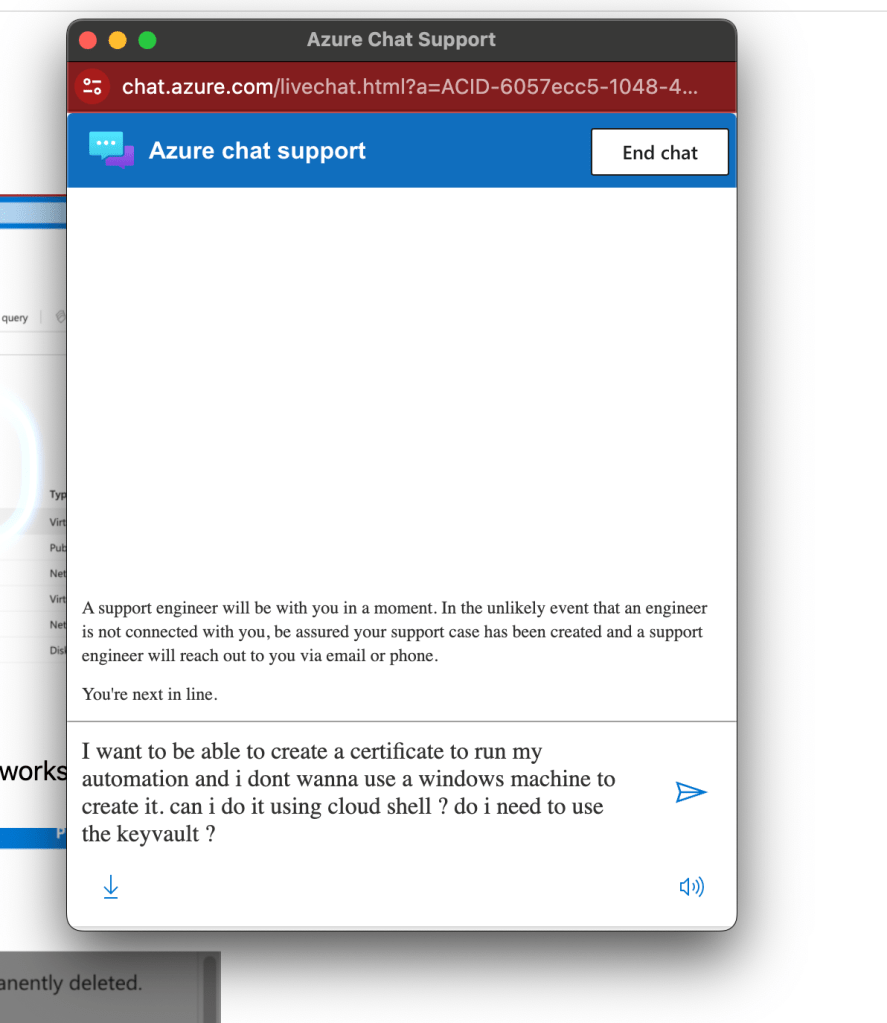

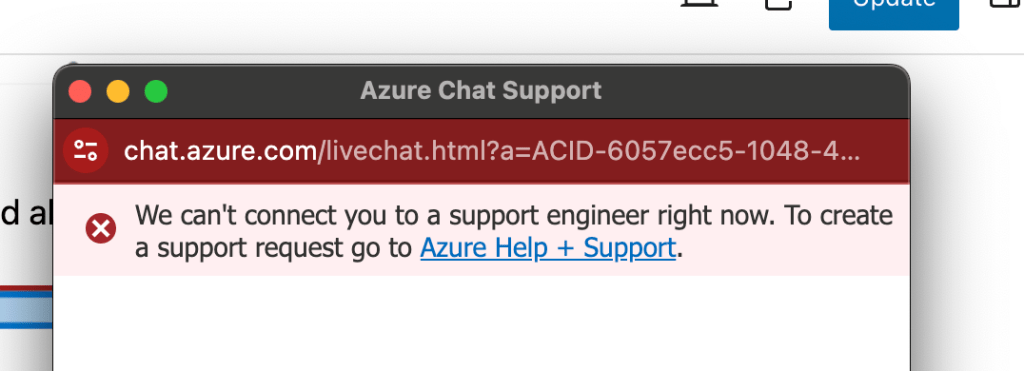

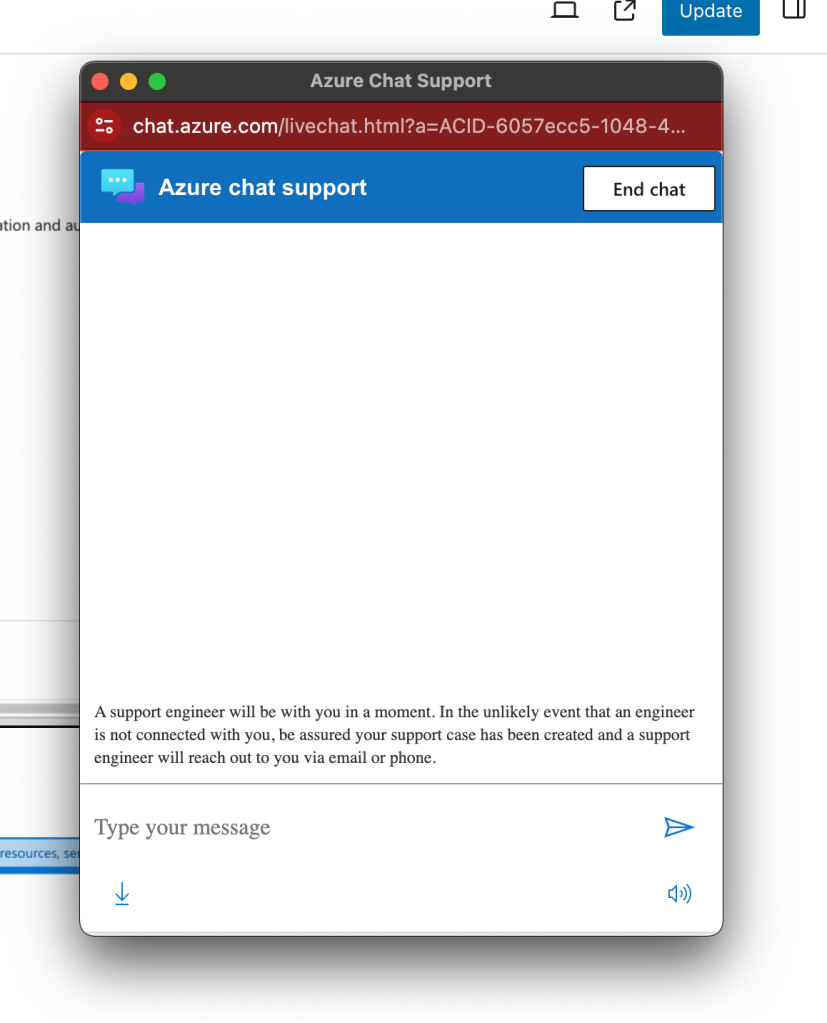

Chat is the new support type microsoft working in the background all the time
someone tried it
https://techcommunity.microsoft.com/t5/itops-talk-blog/how-to-create-a-self-signed-certificate-in-azure-using-cloud/ba-p/401403
reality it would always fail and you got to be in the state of always fixing it
2019 and looks like it works
Similar testing with the gpt so the search and the gpt has to be mixed
from none structured world to a structured one

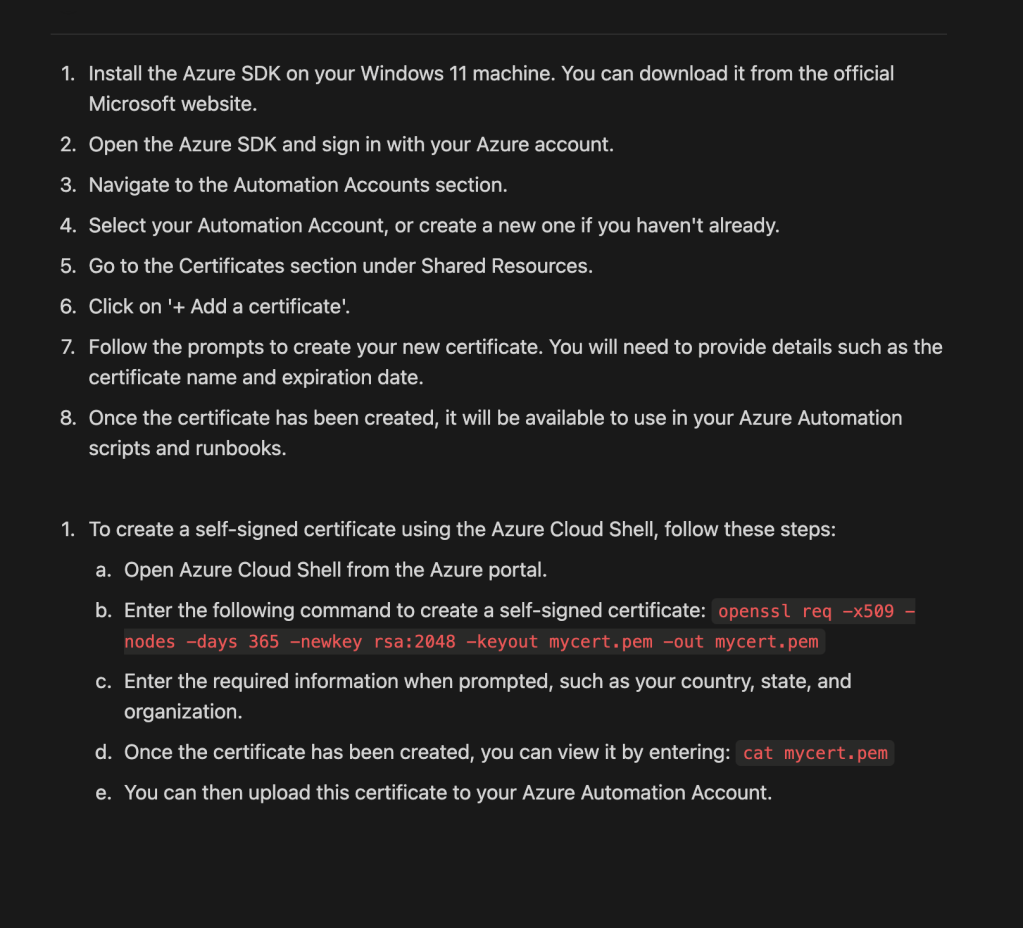

try to go over the gpt

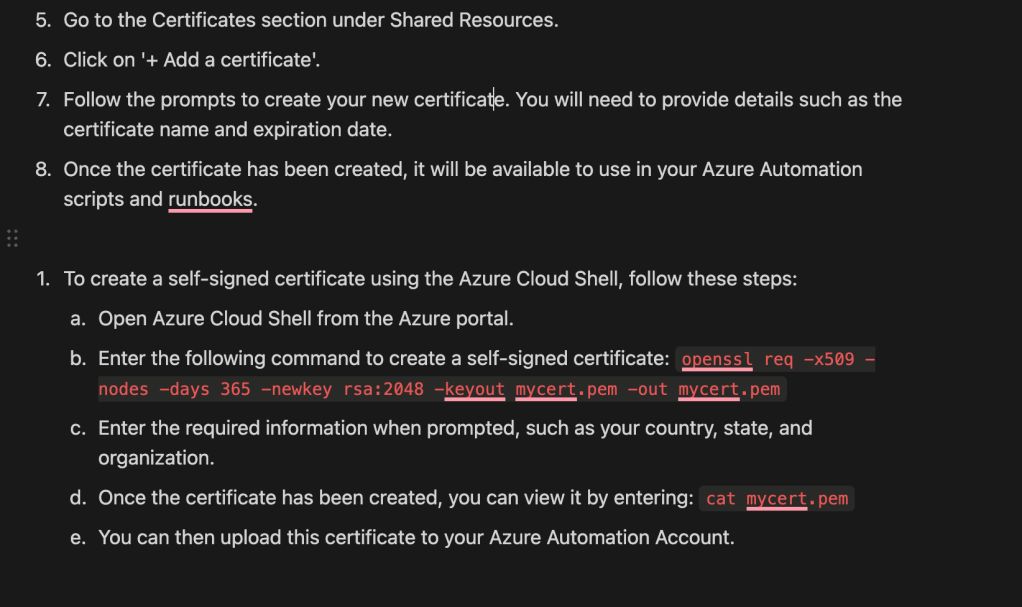

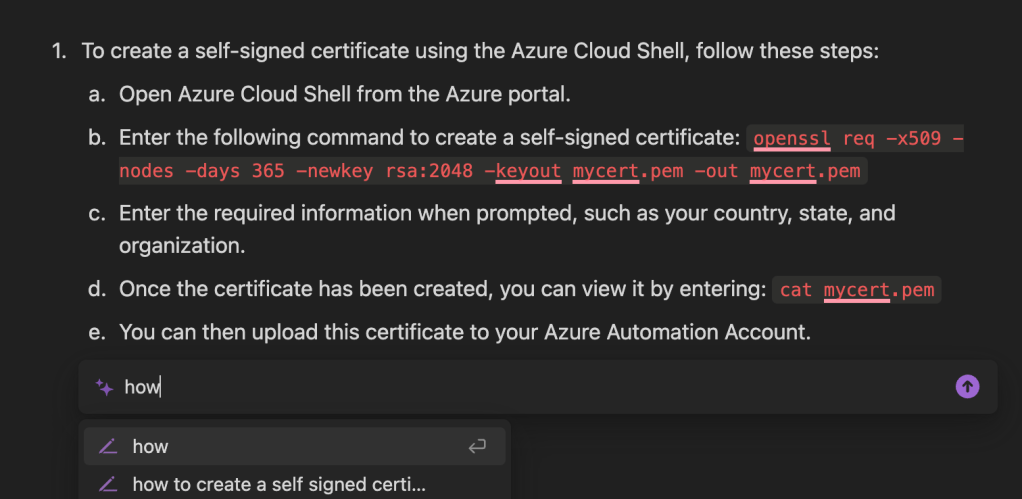

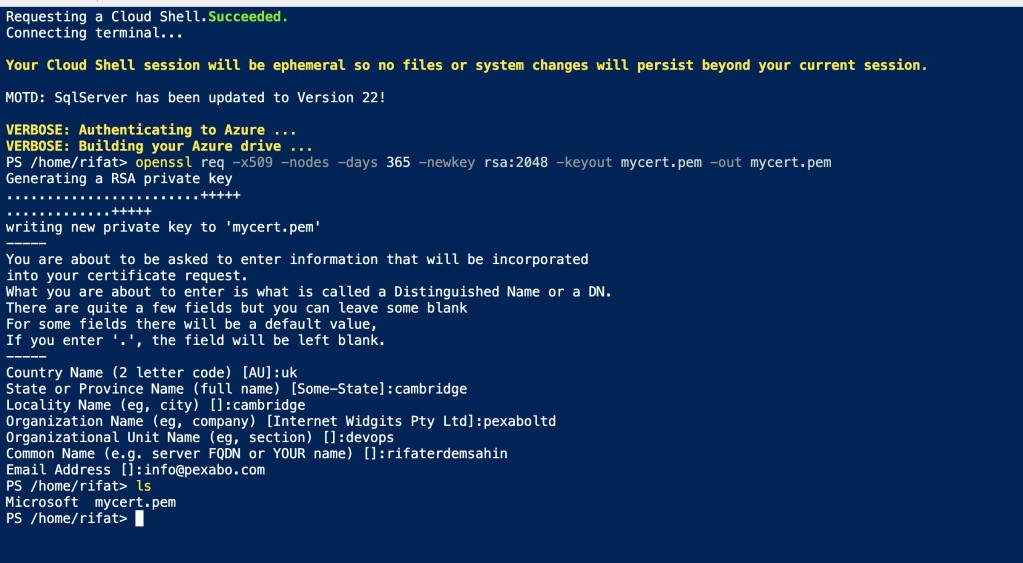

Created a cert as pem
private key and certificate packed together
Shared resources lets do it

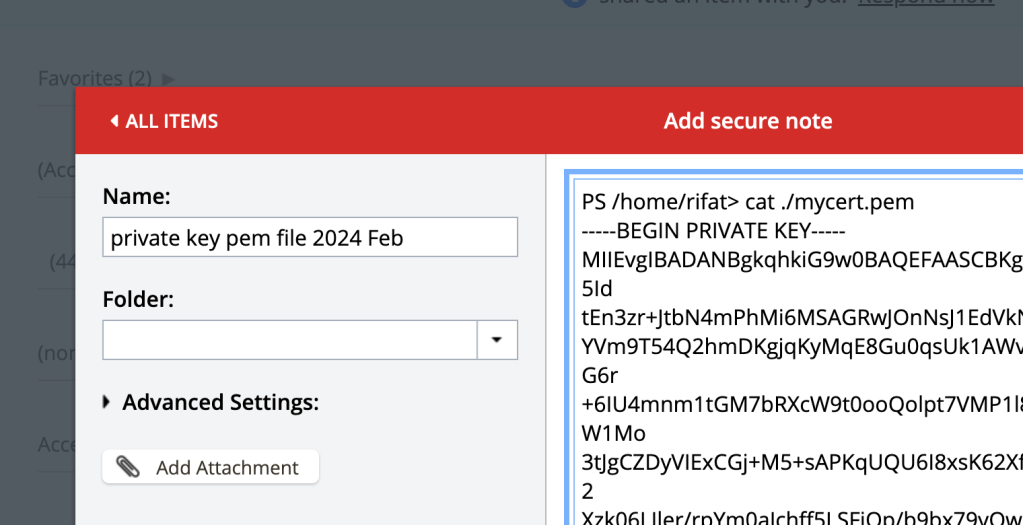

First try it with lastpass

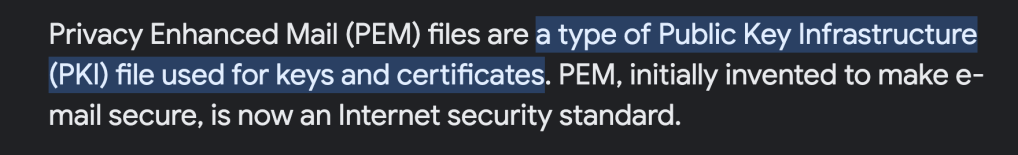

Privacy Enhanced Mail (PEM) files are a type of Public Key Infrastructure (PKI) file used for keys and certificates. PEM, initially invented to make e-mail secure, is now an Internet security standard.

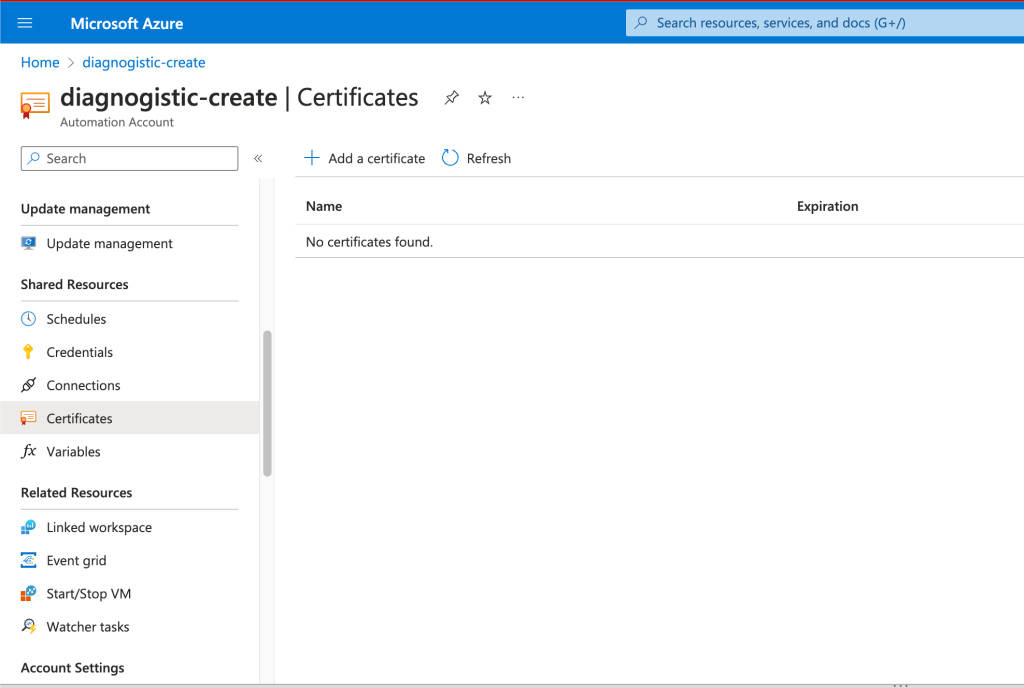

Certificate here
type different

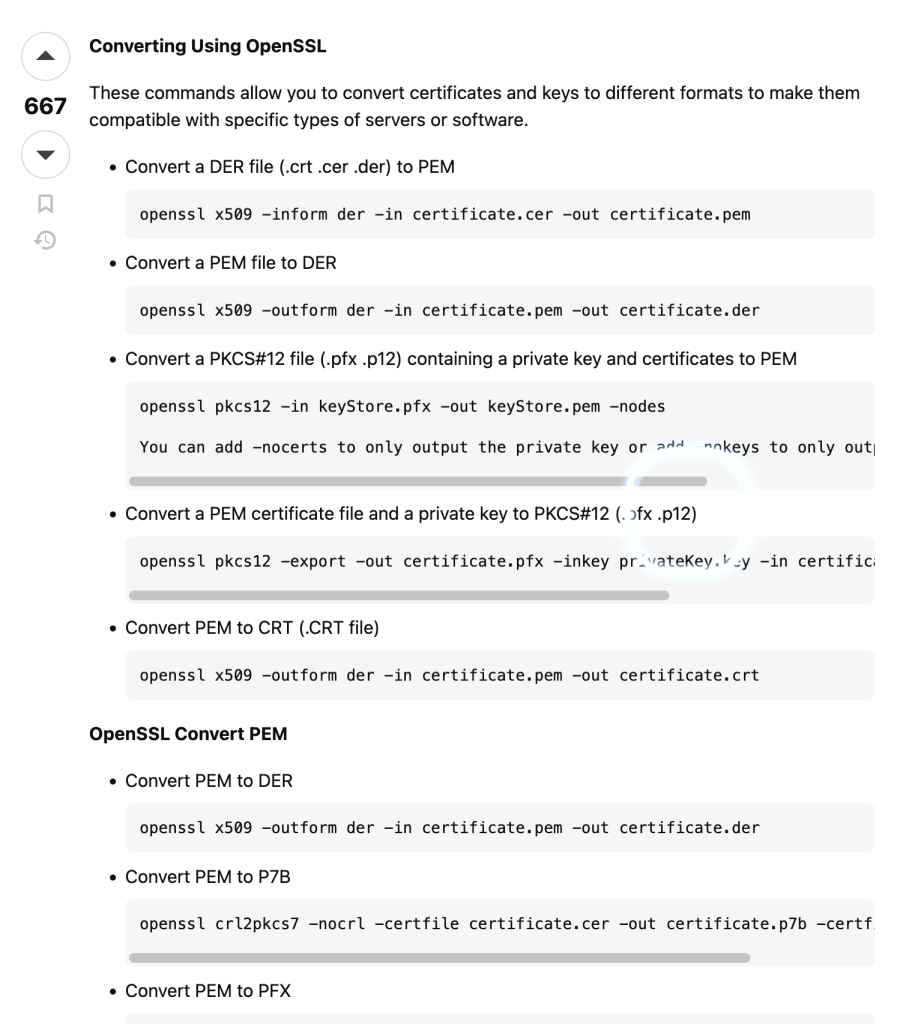

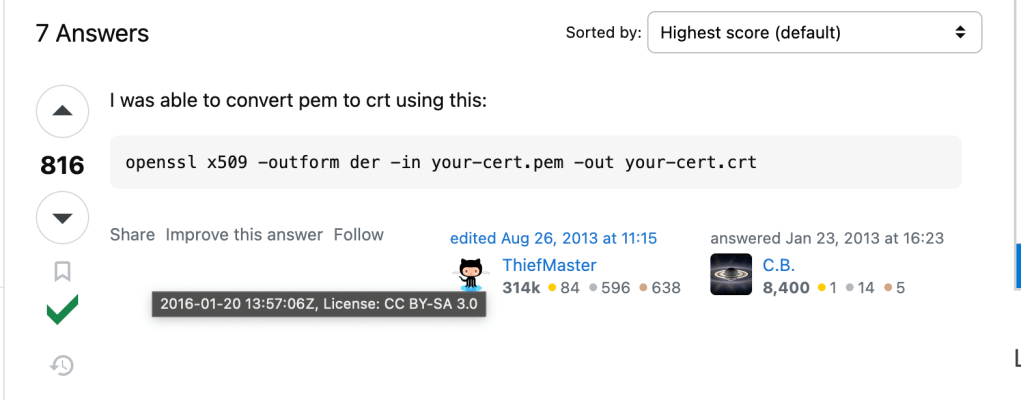

https://stackoverflow.com/questions/13732826/convert-pem-to-crt-and-key

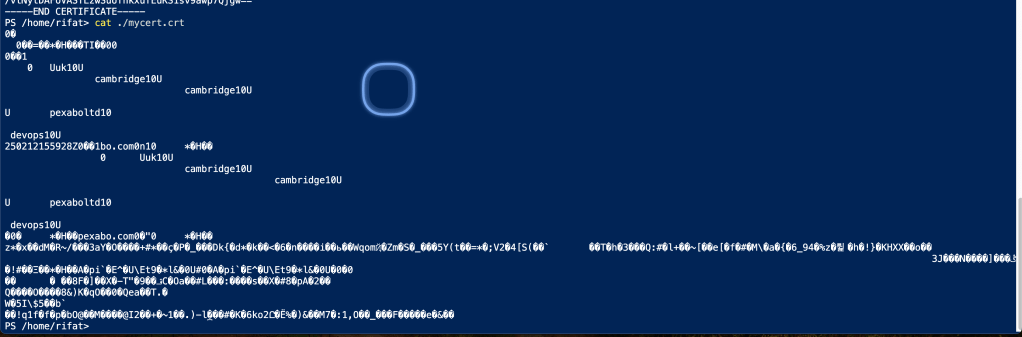

PS /home/rifat> openssl x509 -outform der -in mycert.pem -out mycert.crt
PS /home/rifat> ls
Microsoft mycert.crt mycert.pem
PS /home/rifat>
CRT format is different
different

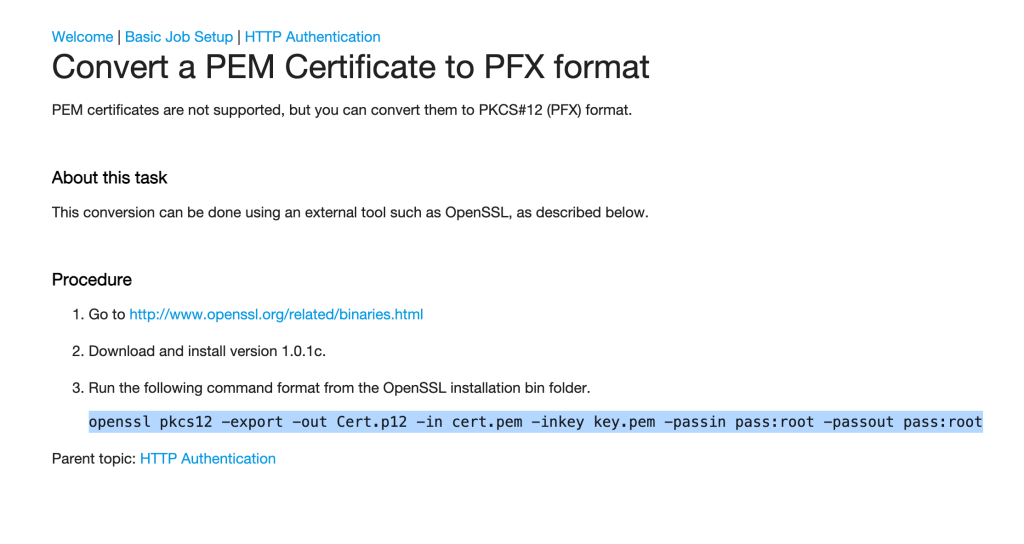

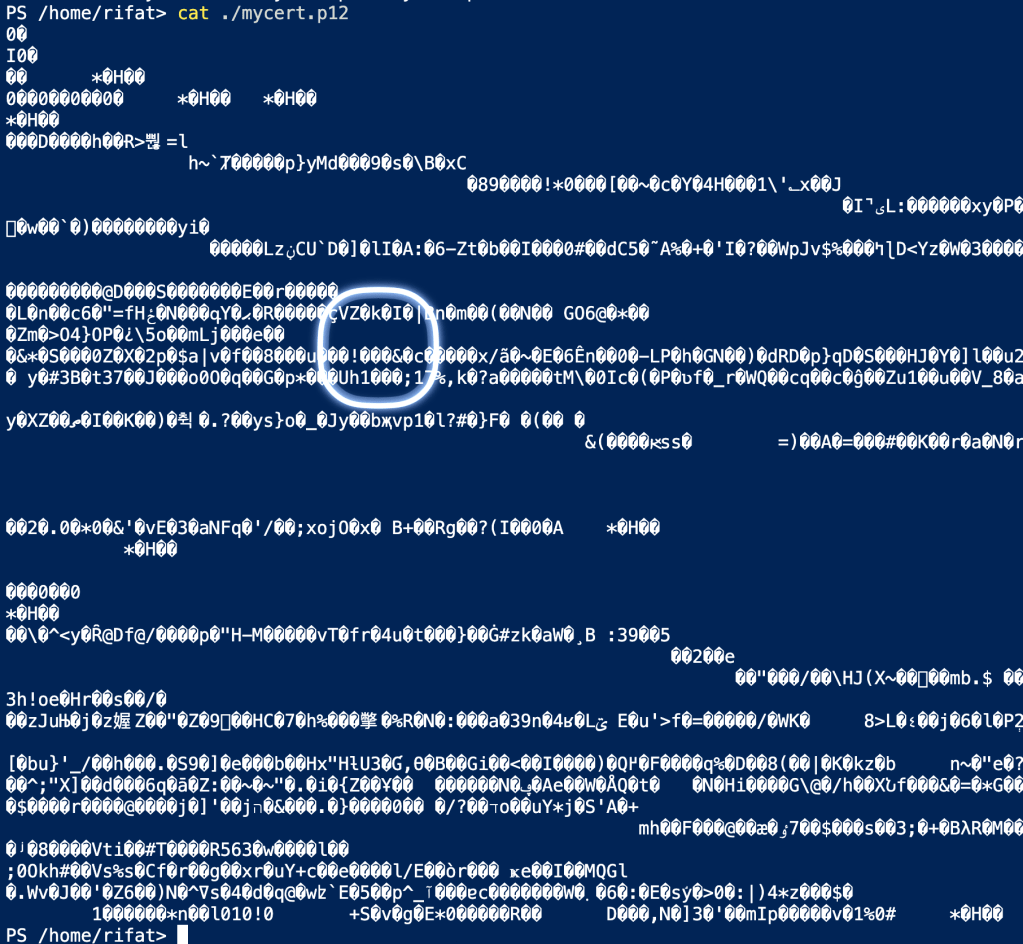

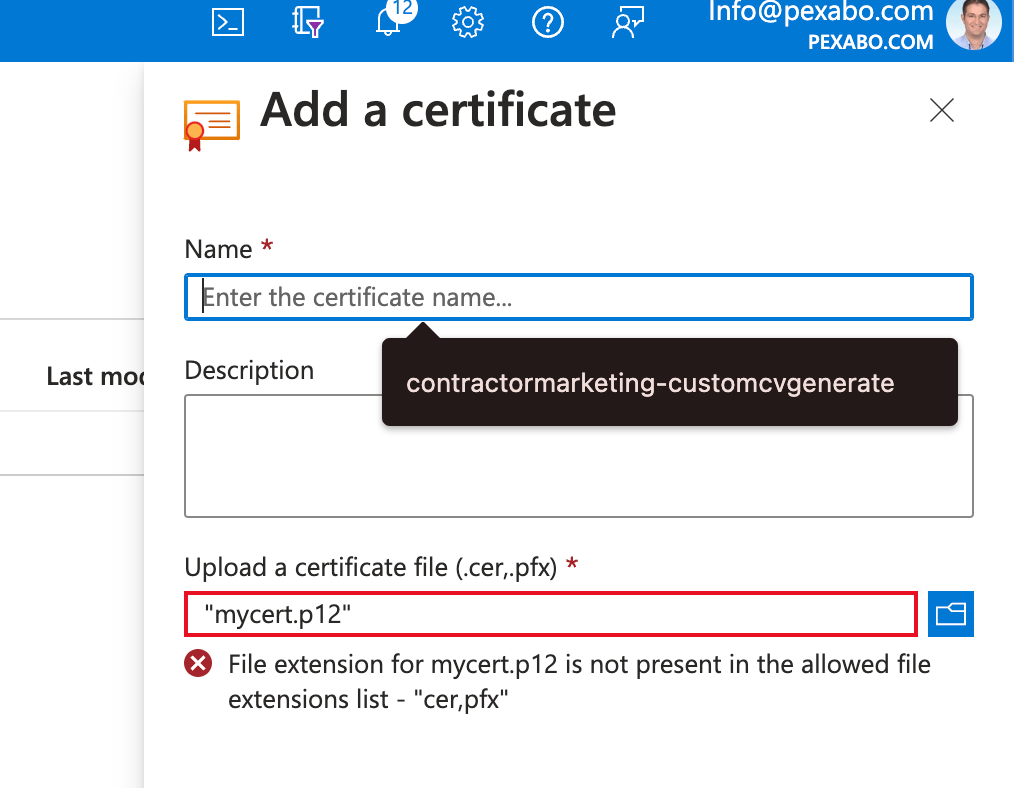

p12 file is also different
without a tool

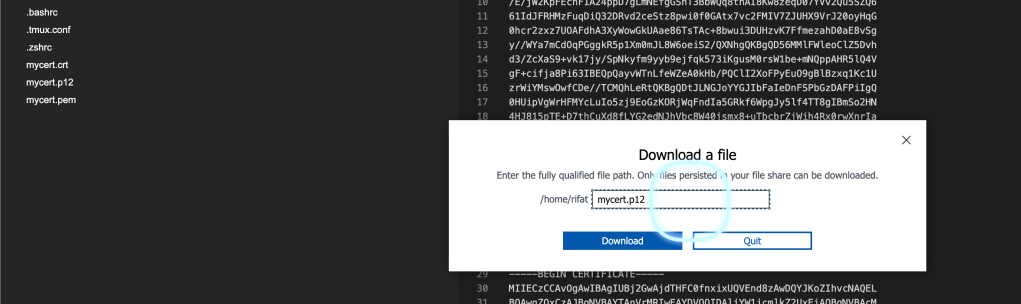

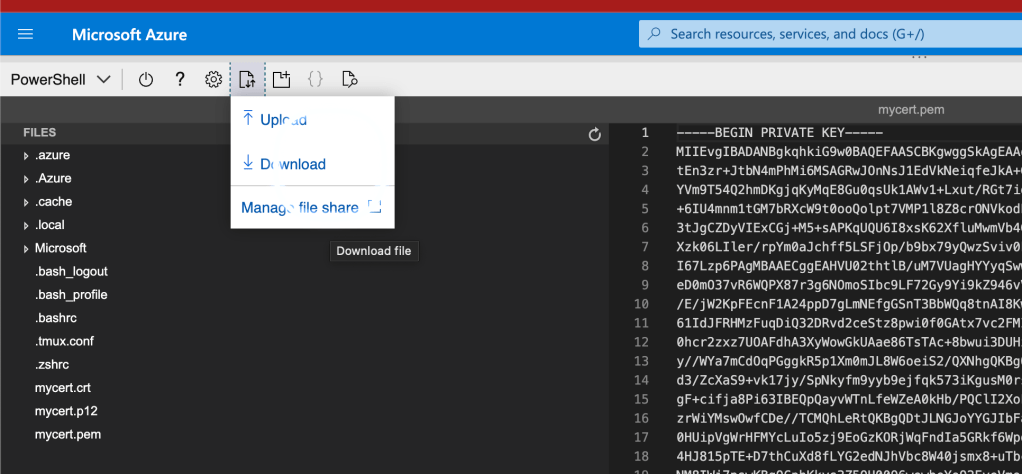

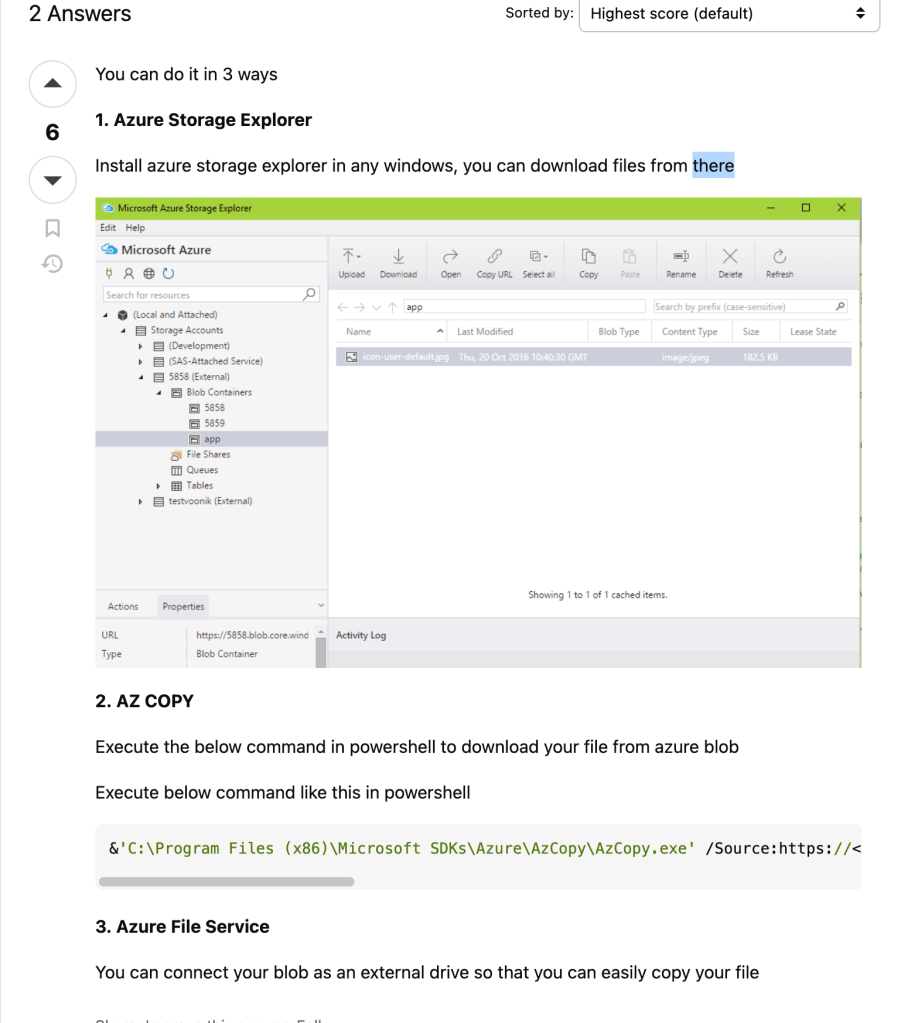

Practical file download is there
ending has an issue
Explain how i did it here
Created the link ?
There are rules
Online creation is there as well

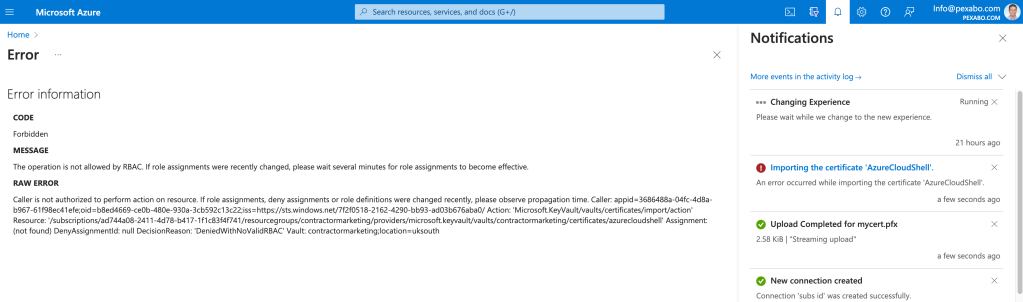

You need the rights to be able to import?
fails
Service principal could be easier

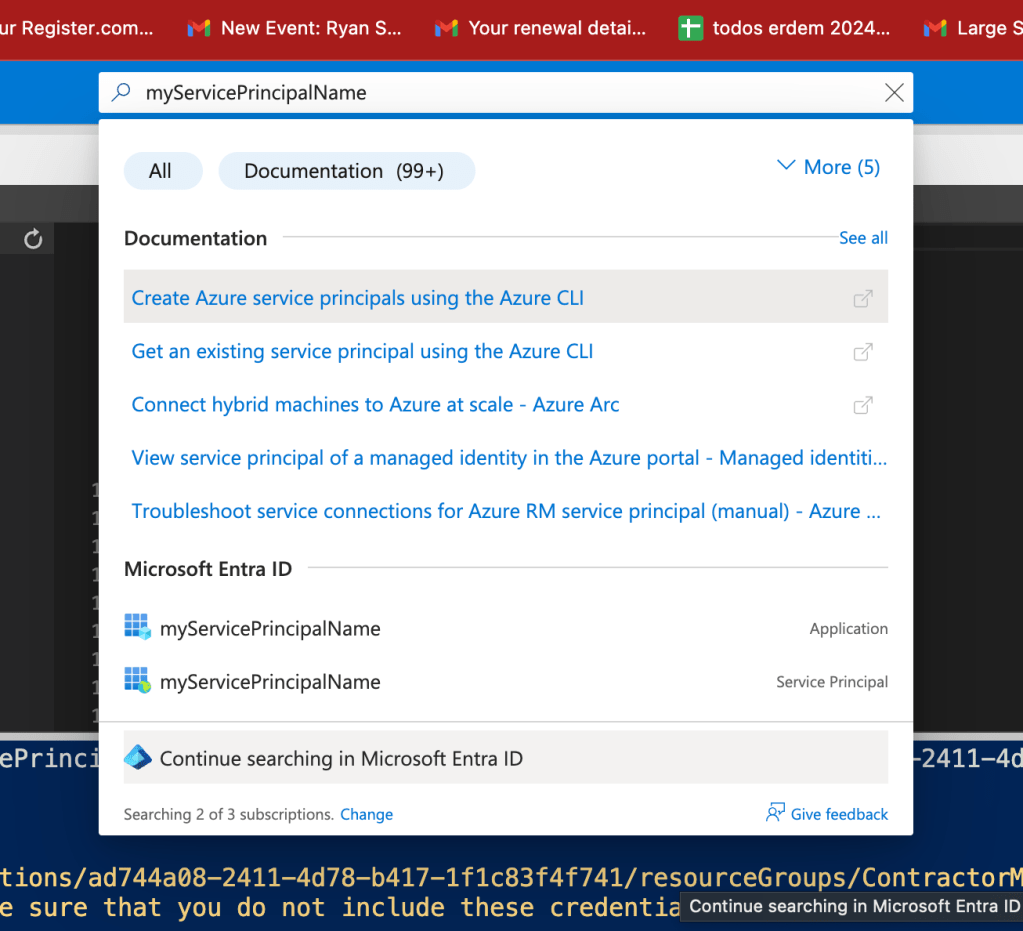

PS /home/rifat> az ad sp create-for-rbac --name myServicePrincipalName --role reader --scopes /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing
info created by itself and shared once
at least saved
Service principal creation is practical >> as it gives the info
a minute to run so that is not a big deal and service principal created by Azure cloud shell easier >>> no files management just paste into last pass
No certificate was found in the certificate store with thumbprint
maybe thumbprint is taken from AD
not there but hidden

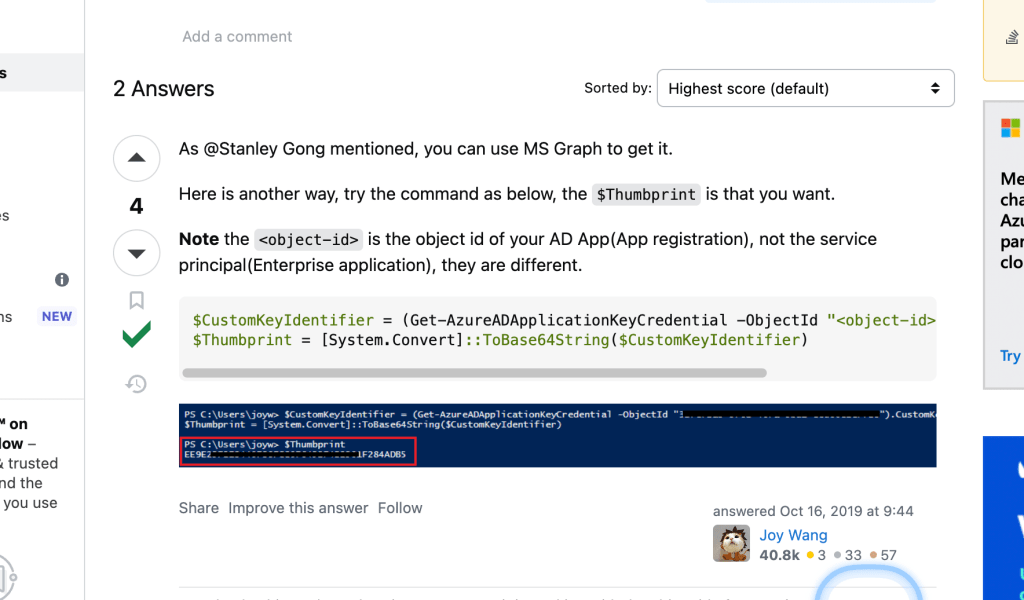

$CustomKeyIdentifier = (Get-AzureADApplicationKeyCredential -ObjectId "
$Thumbprint = [System.Convert]::ToBase64String($CustomKeyIdentifier)
maybe i need it before adding the cert it wont work
pem file added to the user >>> so there is maybe 2 level
1.level create the user >>> have one username and pass
2.level have a certificate that means that is your user. which has the certificate and private key in it.
powershell has so many modules to work right have the system working
script runners have hard time

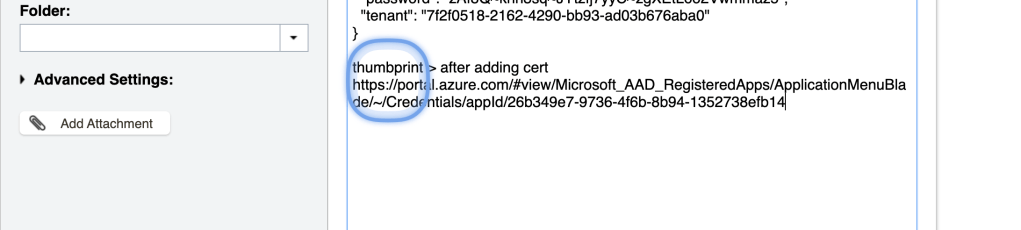

thumprint is here
https://portal.azure.com/#view/Microsoft_AAD_RegisteredApps/ApplicationMenuBlade/~/Credentials/appId/26b349e7-9736-4f6b-8b94-1352738efb14

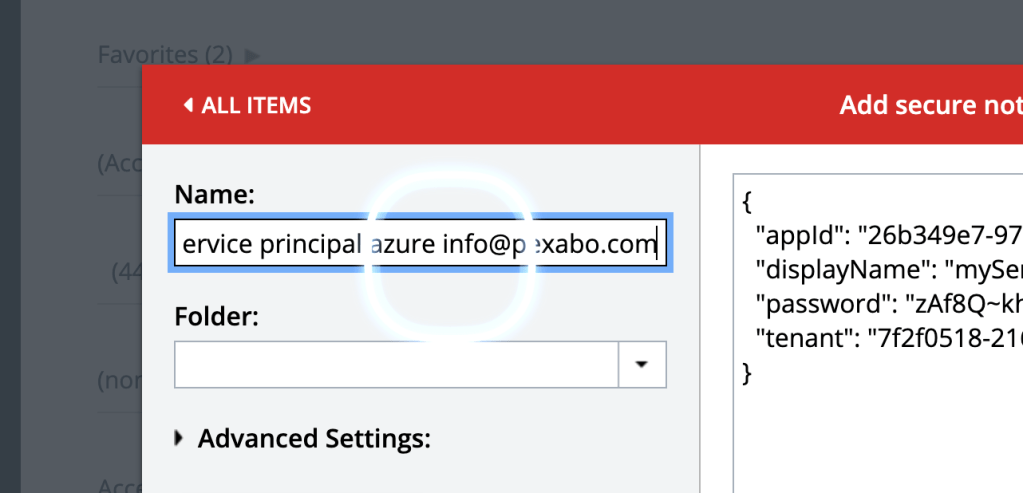

added to the last pass
now after the certiciate only one error is there

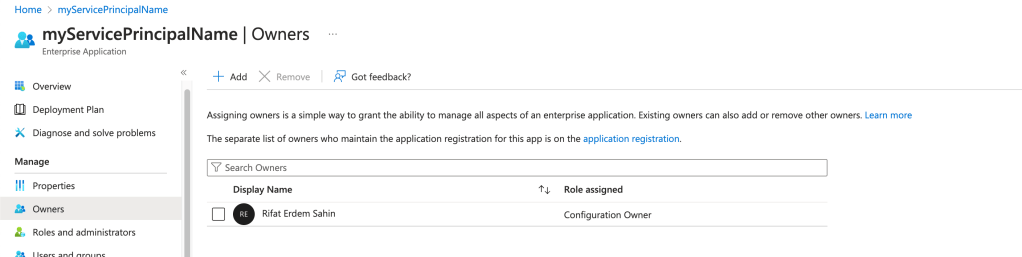

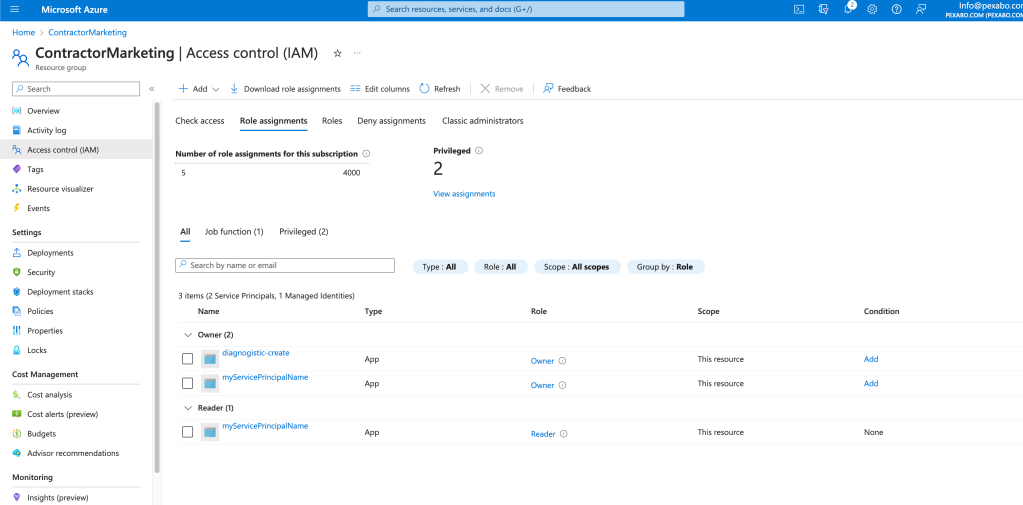

owner or role adding ?

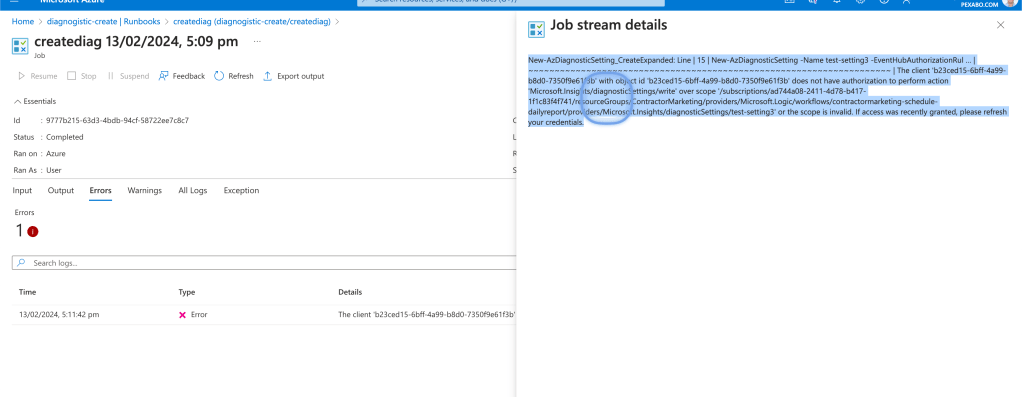

New-AzDiagnosticSetting_CreateExpanded: Line | 15 | New-AzDiagnosticSetting -Name test-setting3 -EventHubAuthorizationRul … | ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ | The client 'b23ced15-6bff-4a99-b8d0-7350f9e61f3b' with object id 'b23ced15-6bff-4a99-b8d0-7350f9e61f3b' does not have authorization to perform action 'Microsoft.Insights/diagnosticSettings/write' over scope '/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport/providers/Microsoft.Insights/diagnosticSettings/test-setting3' or the scope is invalid. If access was recently granted, please refresh your credentials.

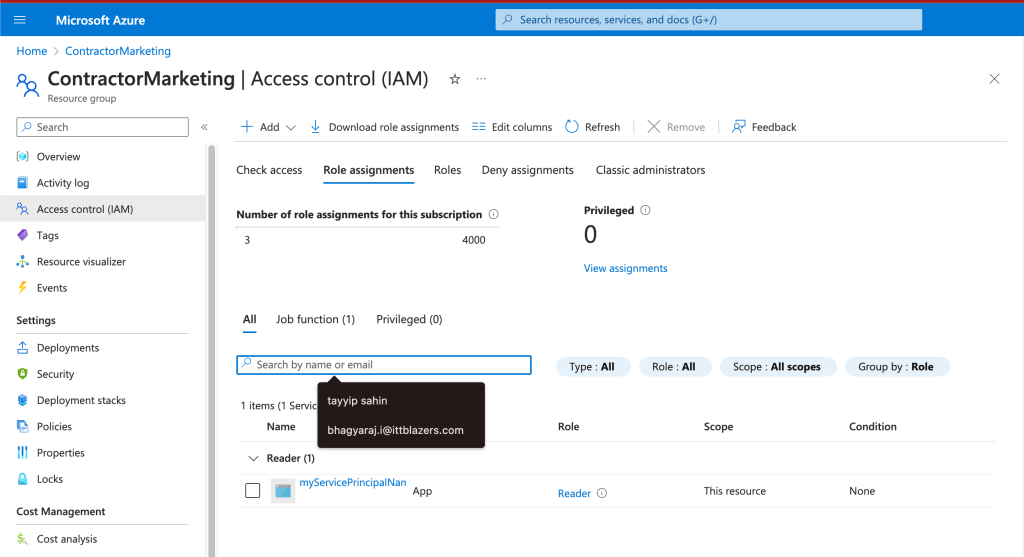

Just a reader >

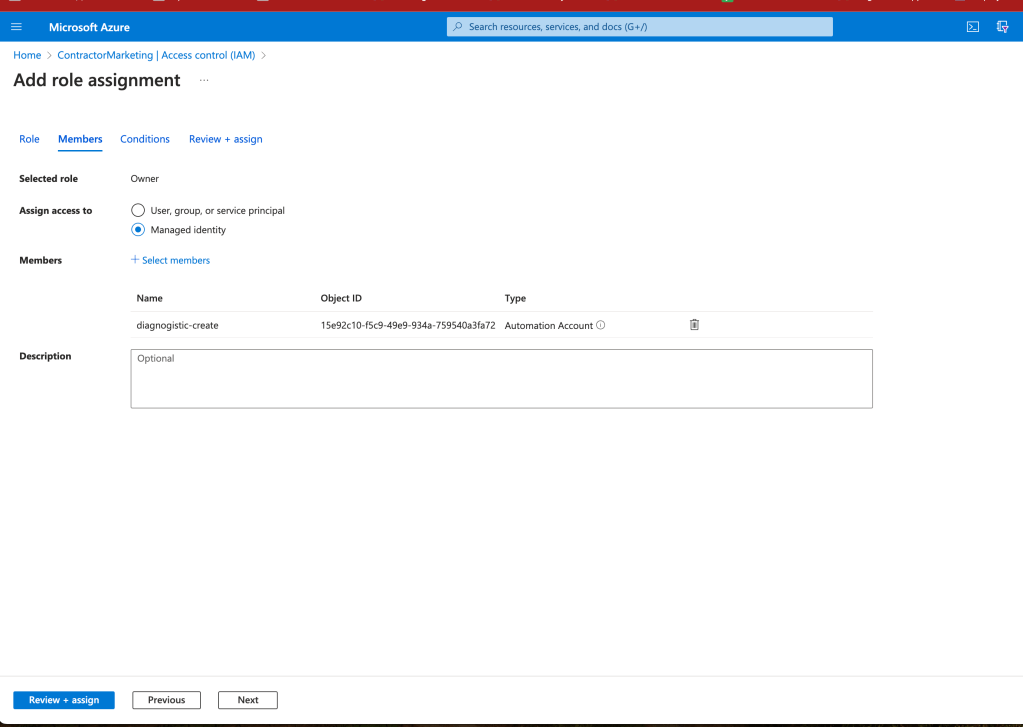

Make it a contributor and an owner
THEY ARE BOTH IN
detail of key creation >>> 2 way action
1) i created service principal ( json ) >> cloud shell
2)create the pem key >>> clould shelll
3) convert the pem to crt file

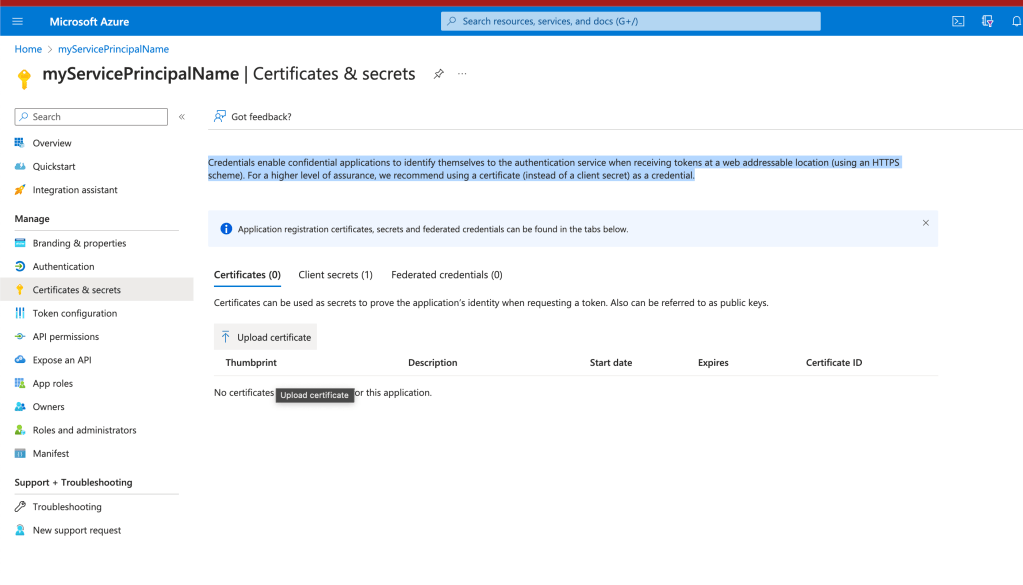

4)uploaded the crt to certificated of the serviceprincipal (got thumbprint )
5)created a connection in automation account with serviceprincal ( used thumbprint )
6)added the code to the automation using the connection

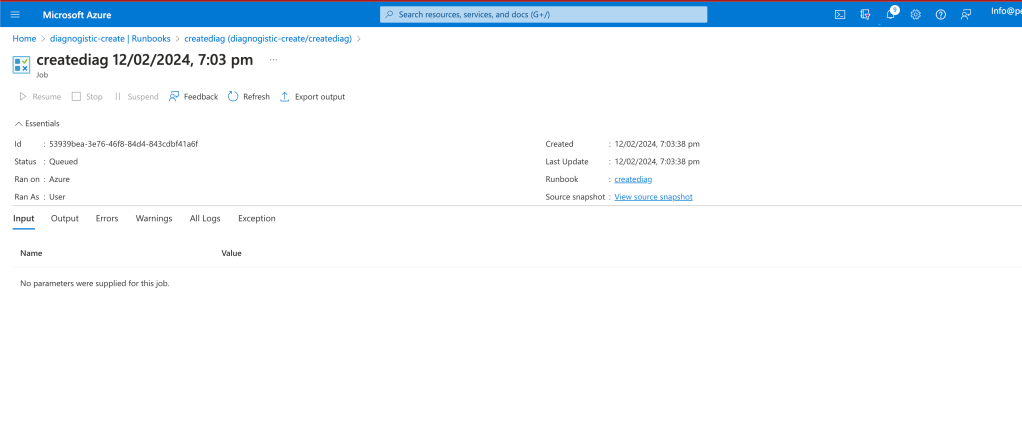

Waited in the queue and rerun

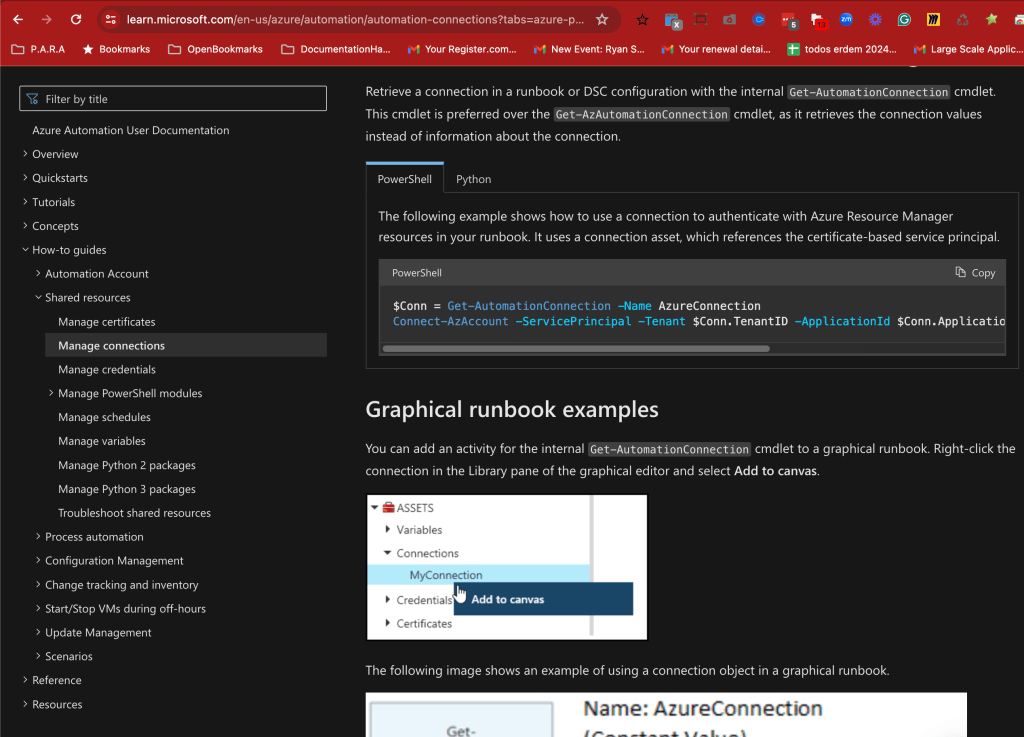

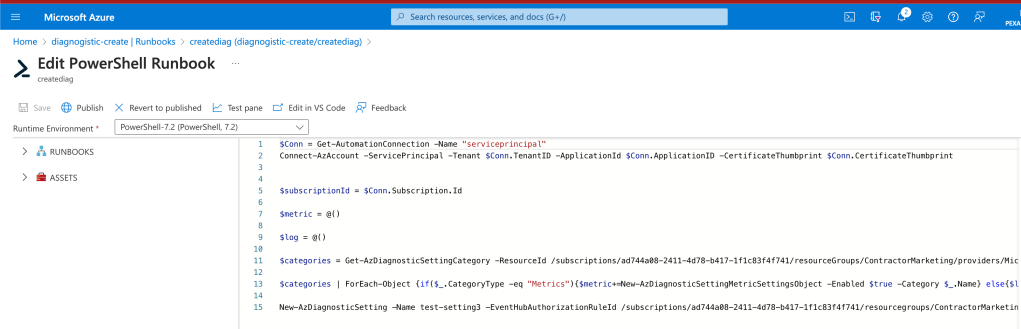

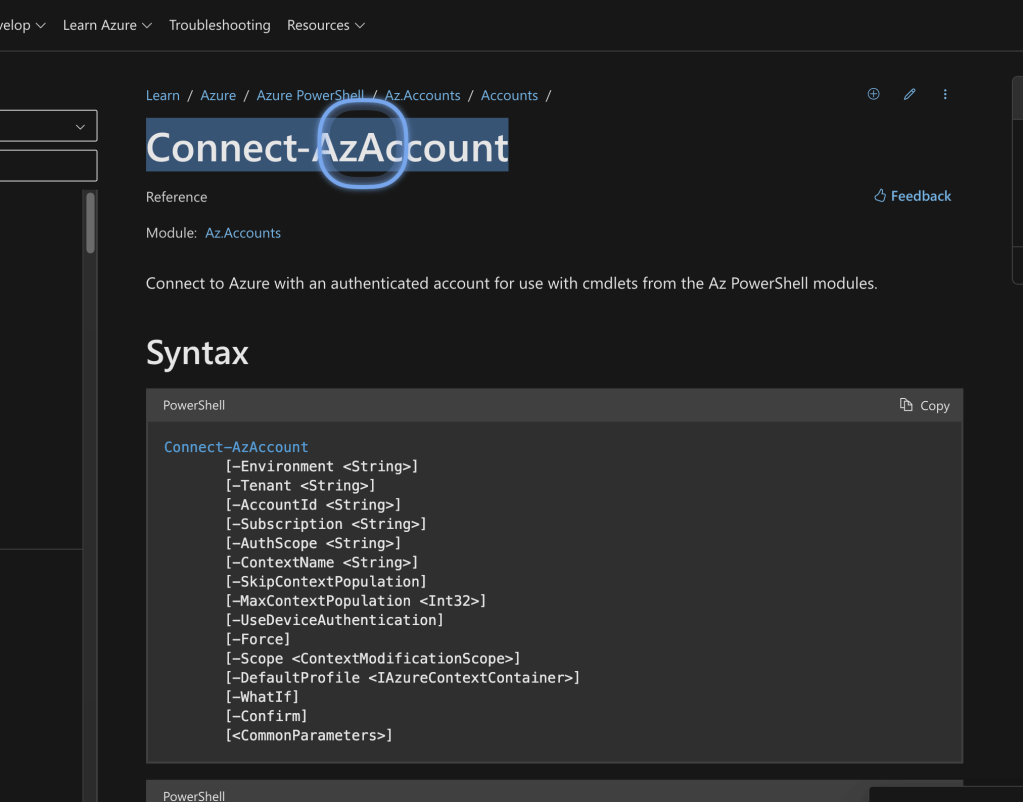

`$Conn = Get-AutomationConnection -Name "serviceprincipal"
Connect-AzAccount -ServicePrincipal -Tenant $Conn.TenantID -ApplicationId $Conn.ApplicationID -CertificateThumbprint $Conn.CertificateThumbprint
$subscriptionId = $Conn.Subscription.Id
$metric = @()
$log = @()
$categories = Get-AzDiagnosticSettingCategory -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport
$categories | ForEach-Object {if($.CategoryType -eq "Metrics"){$metric+=New-AzDiagnosticSettingMetricSettingsObject -Enabled $true -Category $.Name} else{$log+=New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category $_.Name}}
New-AzDiagnosticSetting -Name test-setting3 -EventHubAuthorizationRuleId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/ContractorMarketing/providers/Microsoft.EventHub/namespaces/contractormarketing/authorizationrules/RootManageSharedAccessKey -EventHubName contractormarketing-logicapp -StorageAccountId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Storage/storageAccounts/contractormarketing -ResourceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/contractormarketing-schedule-dailyreport -WorkspaceId /subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics -Log $log -Metric $metric`

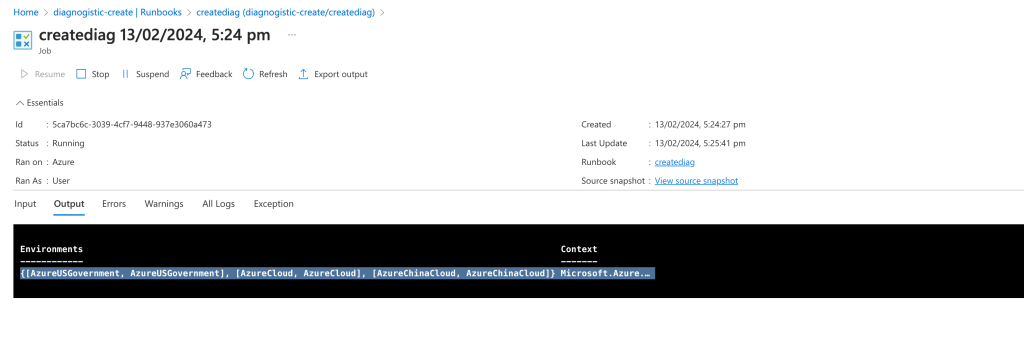

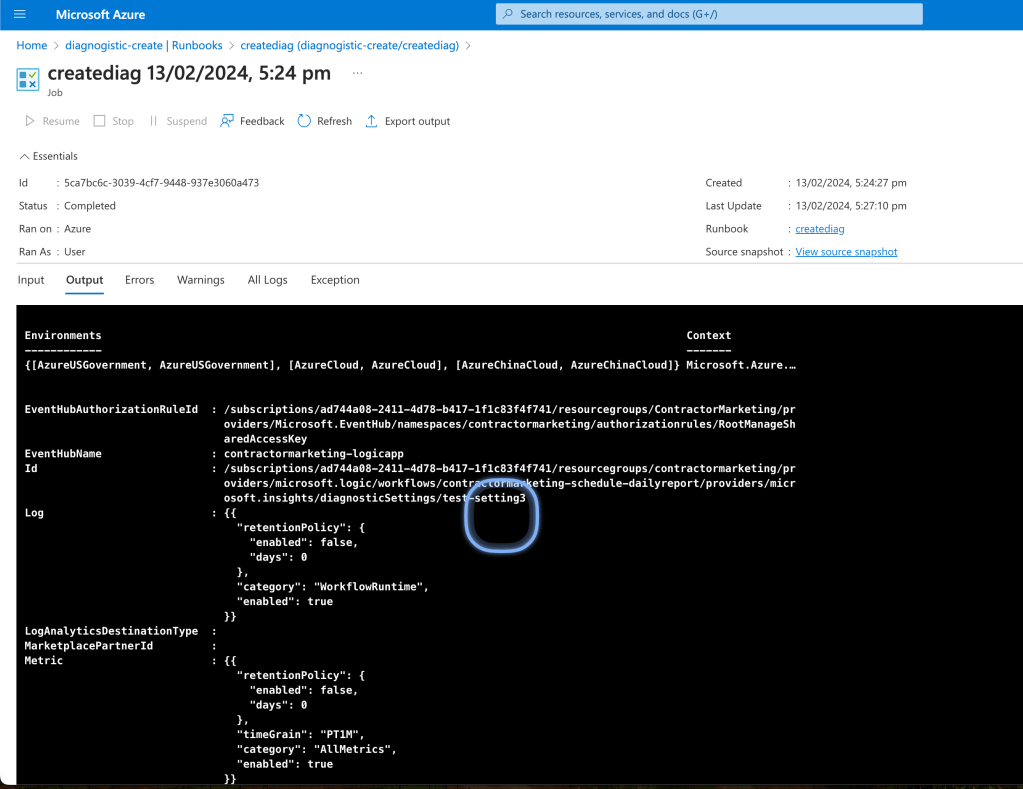

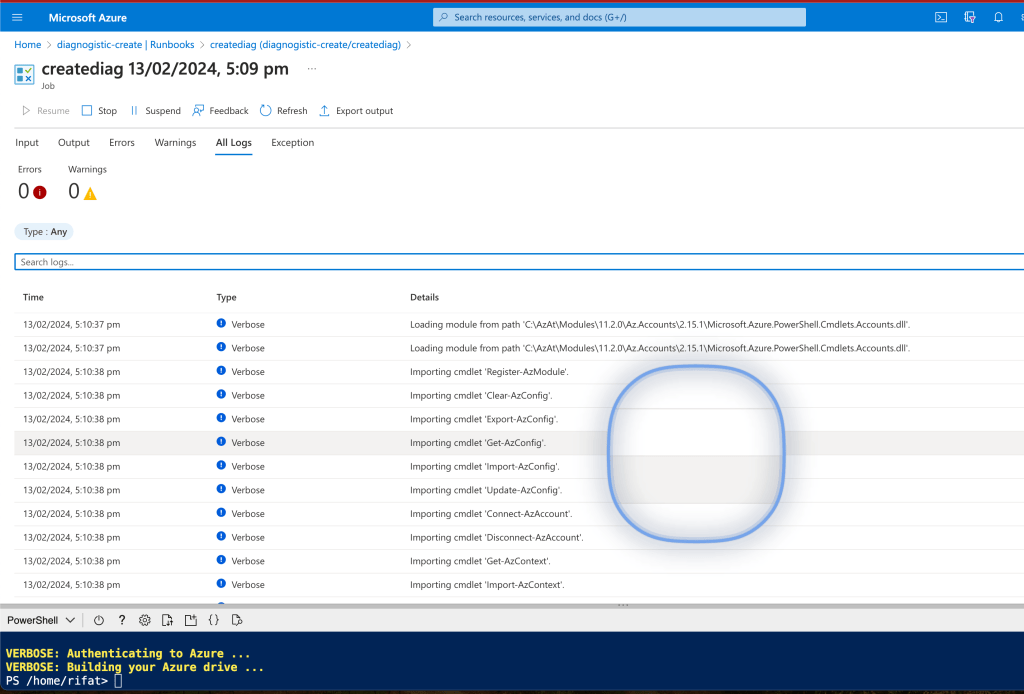

first time it is getting connected
so much hassle for this
$Conn = Get-AutomationConnection -Name "serviceprincipal"
Connect-AzAccount -ServicePrincipal -Tenant $Conn.TenantID -ApplicationId $Conn.ApplicationID -CertificateThumbprint $Conn.CertificateThumbprint
Connection works >>> as it has it all and the password is protected over the certificate as we know the thumbprint for the cert
Created this know we need to take in a parameter and run this 46 times and in future diagnogistics that we need and be able to debug our serverless applications

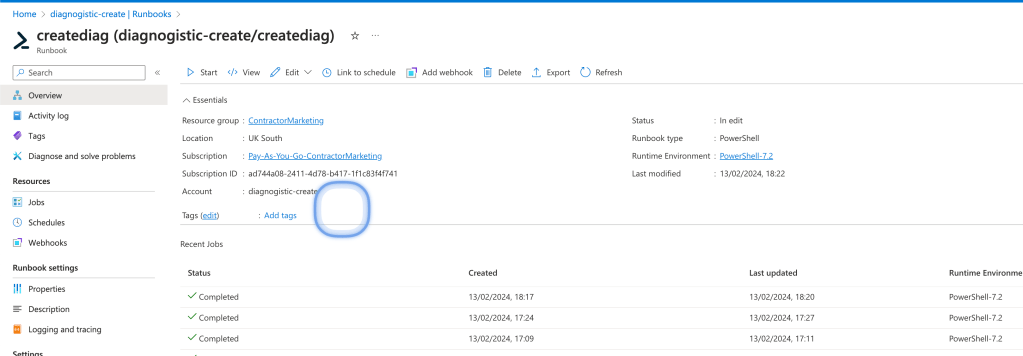

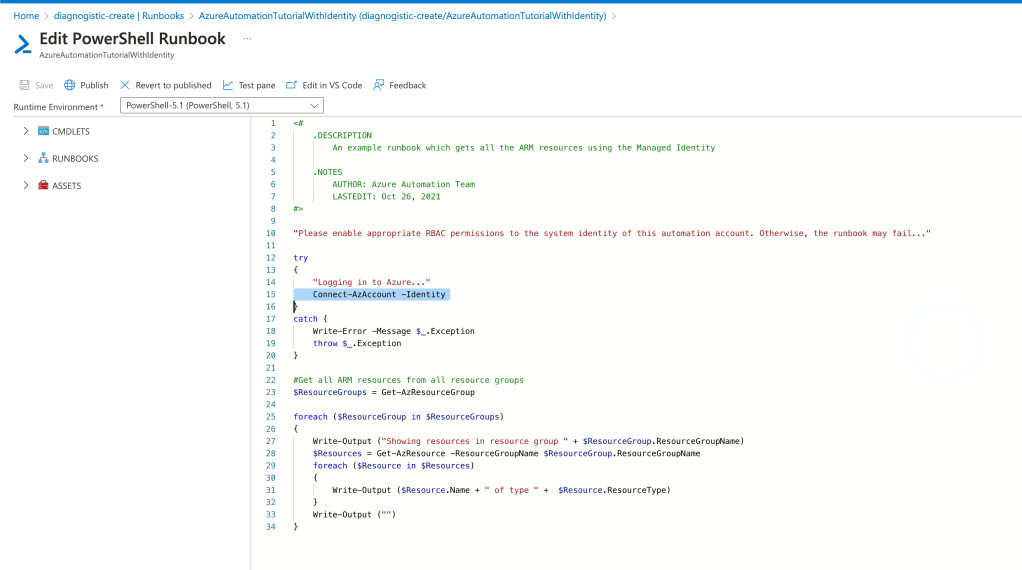

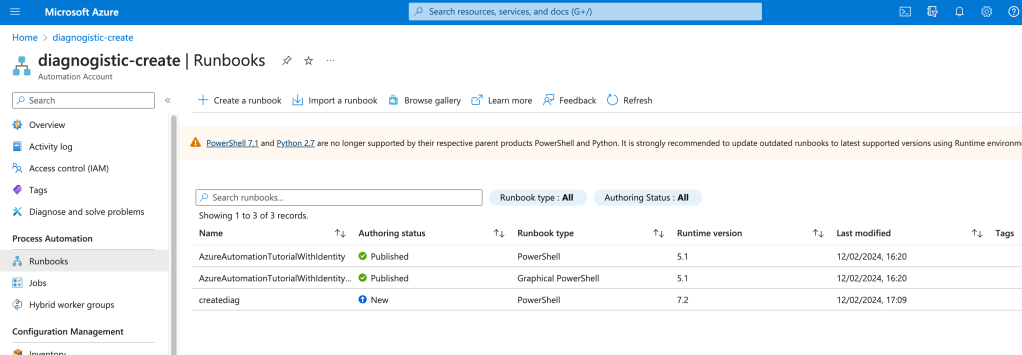

There are also other run books there

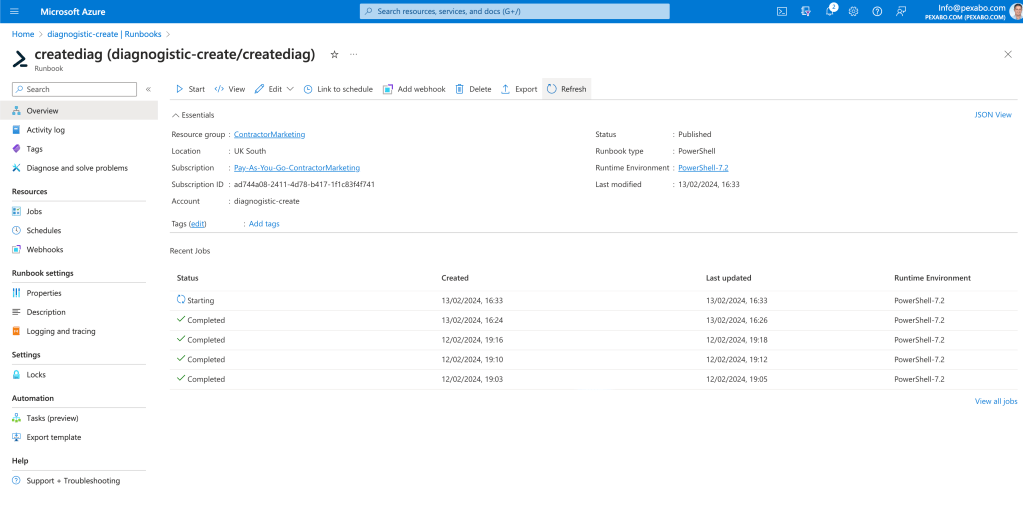

top line is powershell added
TODOS
todo 1 app paramaters

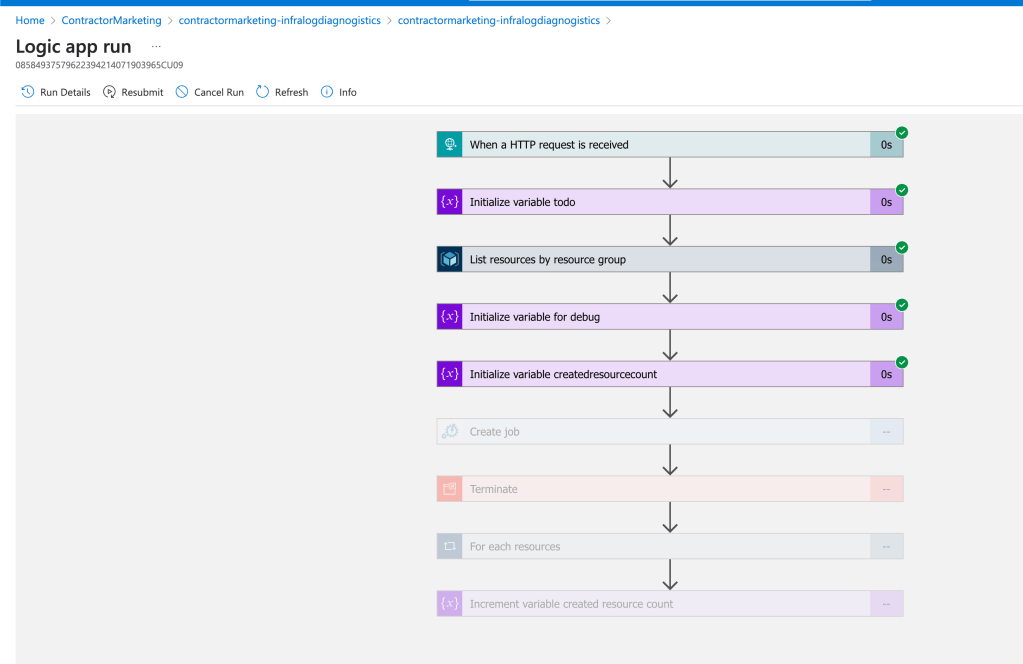

todo2 add this to the logic app
todo3 trigger the logic app create 46 configs

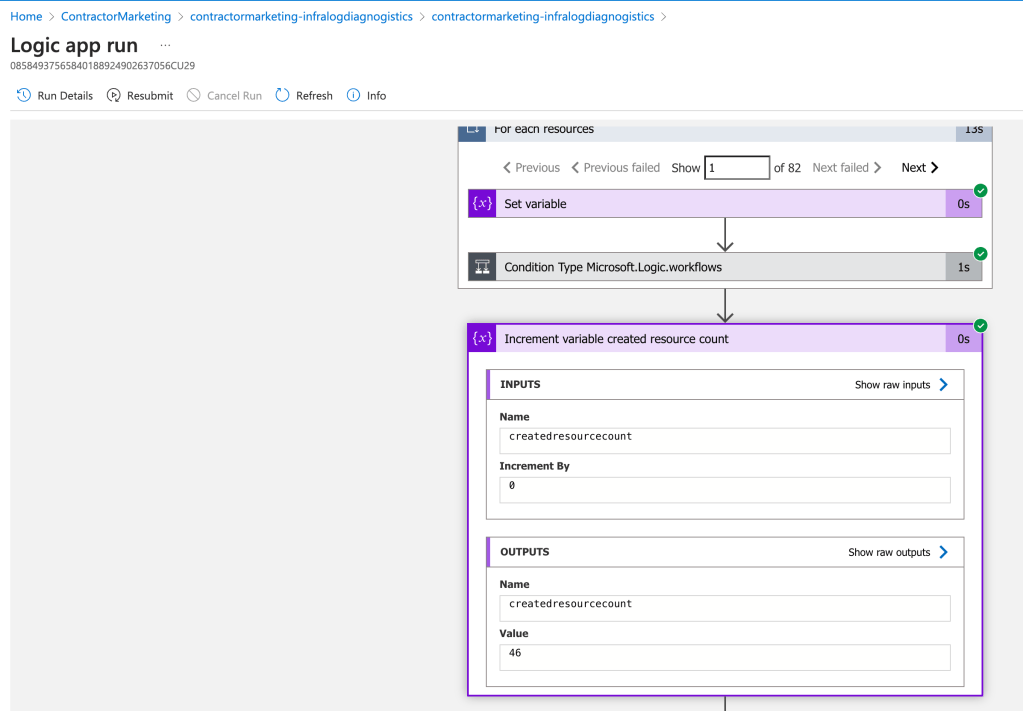

Check if created
Basic
terminate and test a limited scope

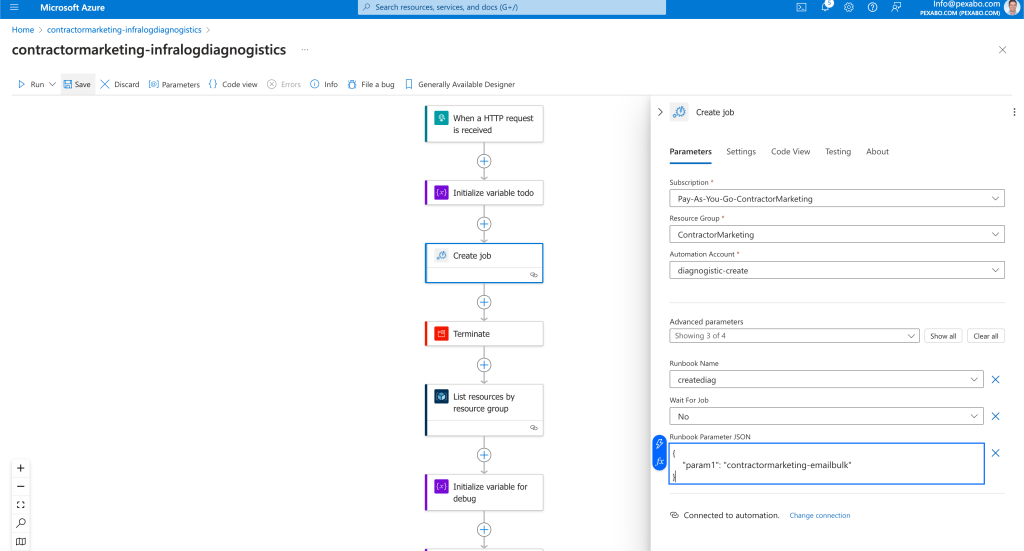

Parameter landing
Todos
todo 1 app paramaters ( inprogress )
todo2 add this to the logic app ( inprogress )
todo3 trigger the logic app create 46 configs ( )

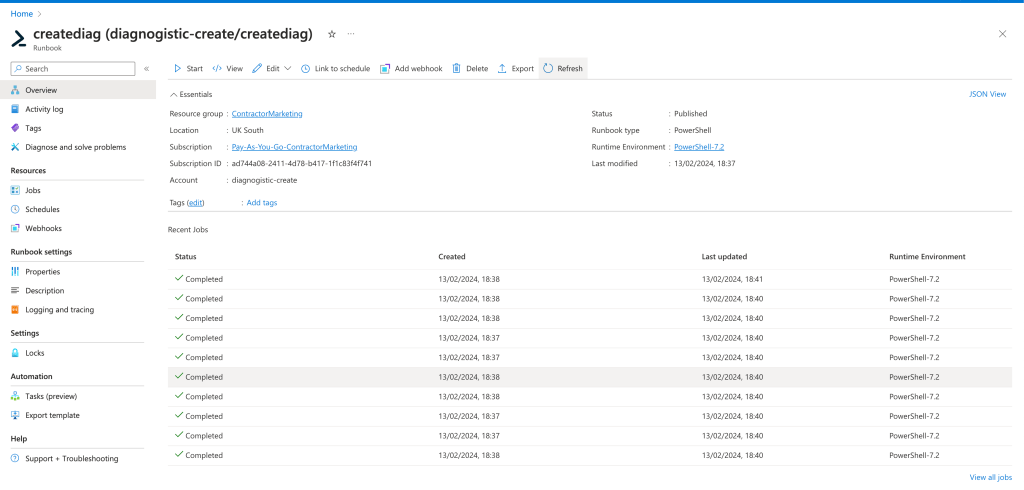

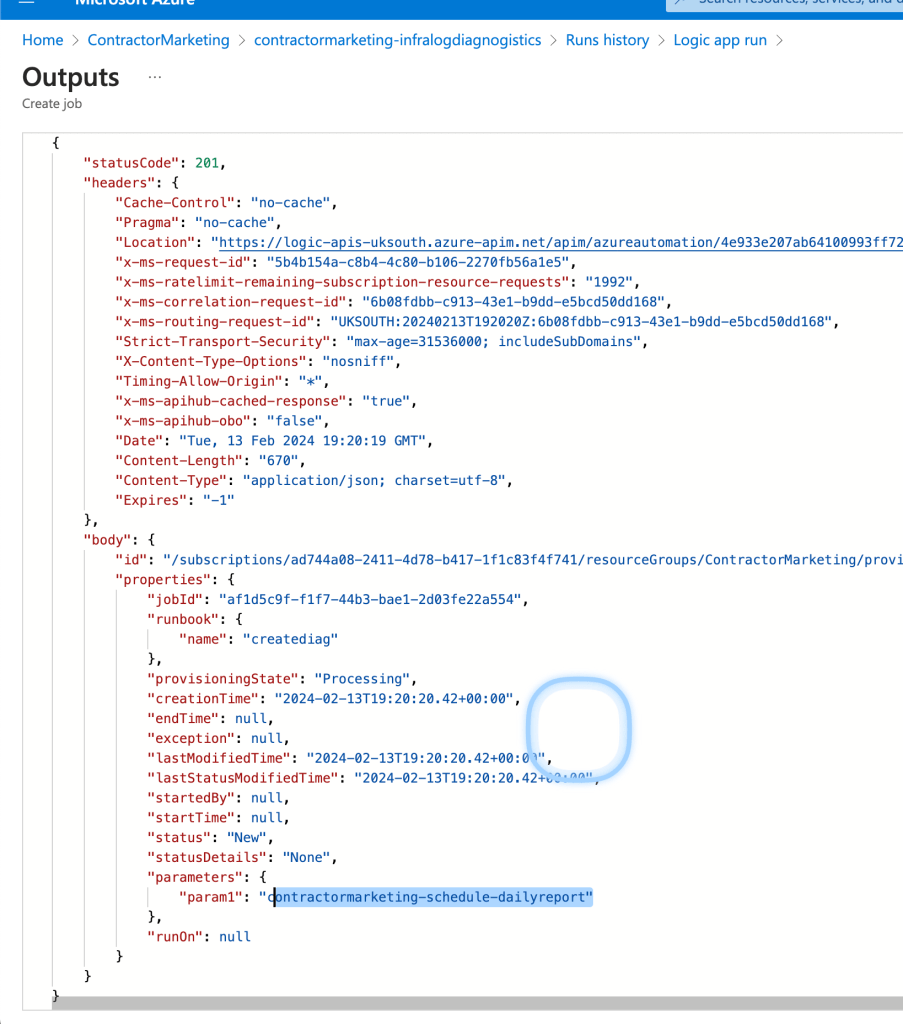

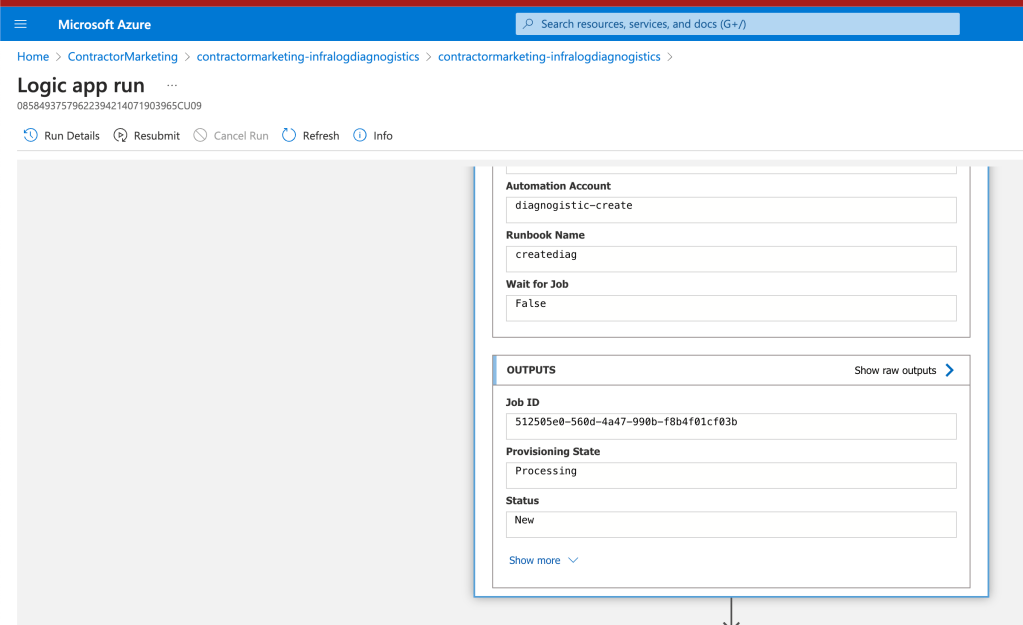

Job ID is the output
3 minute to run to much to debug

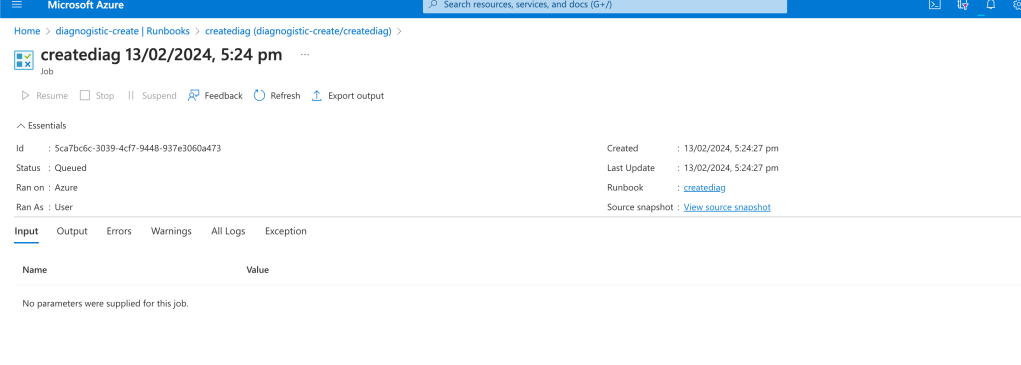

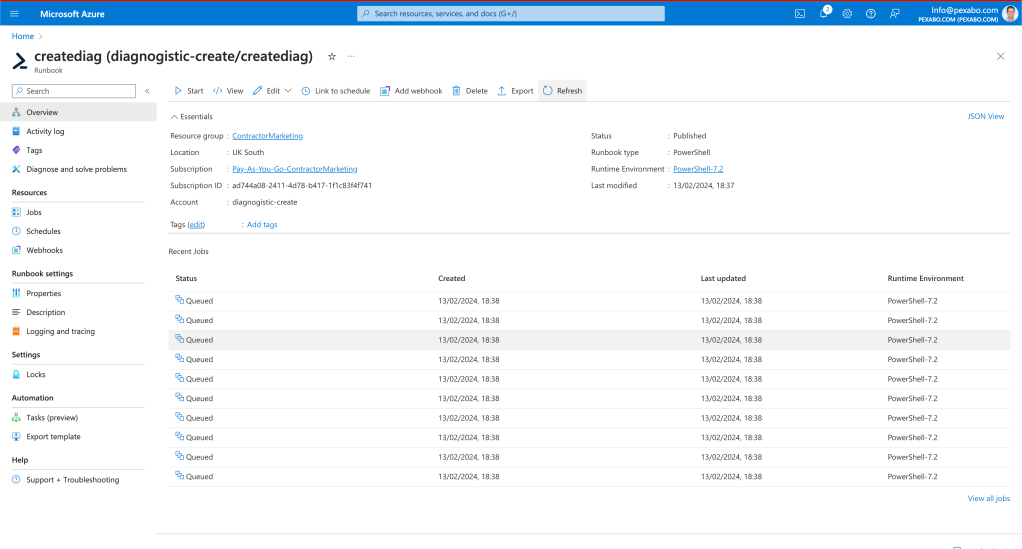

So many queued at the same time
Starting all at the same time
it is not here

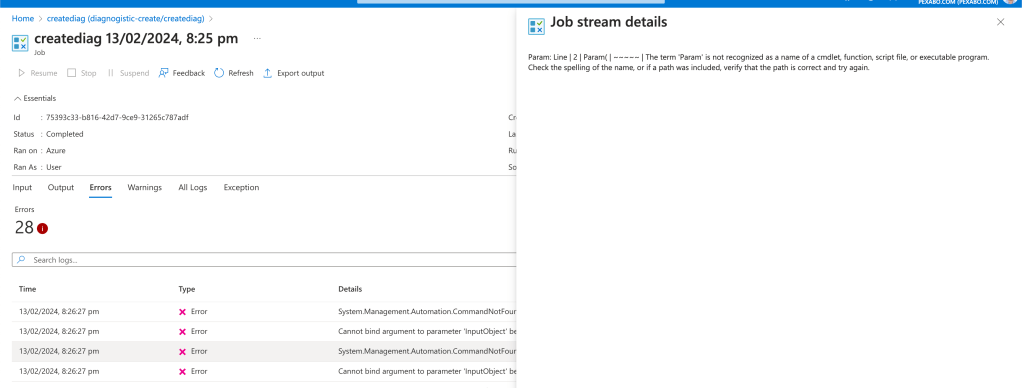

Line 16 error
46 errors piled up

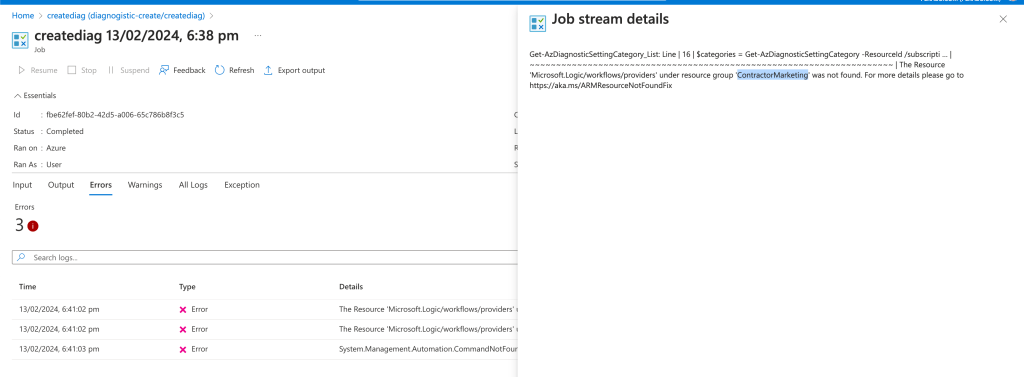

Get-AzDiagnosticSettingCategory_List: Line | 16 | $categories = Get-AzDiagnosticSettingCategory -ResourceId $myresource … | ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ | The Resource 'Microsoft.Logic/workflows/providers' under resource group 'ContractorMarketing' was not found. For more details please go to https://aka.ms/ARMResourceNotFoundFix
param looks empty?
snapshot write is not there

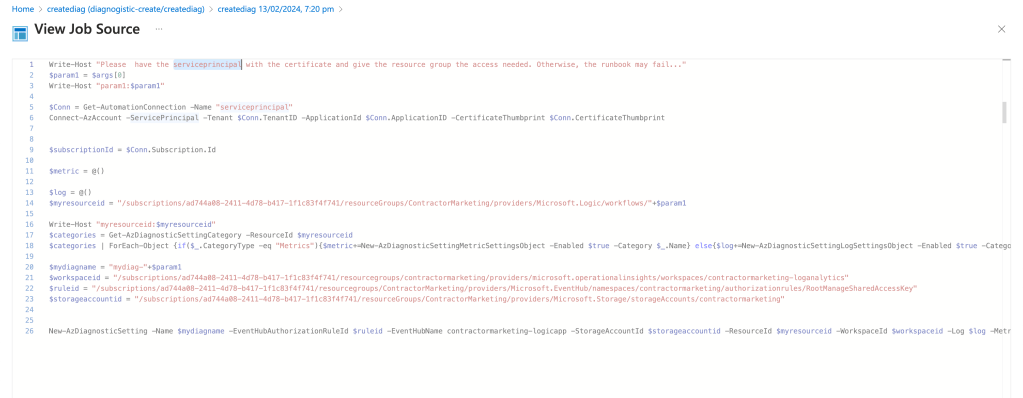

this time the snapshot as published with latest updates
Basic string error is there
https://lazyadmin.nl/powershell/concatenate-string
test basics on cloud shell

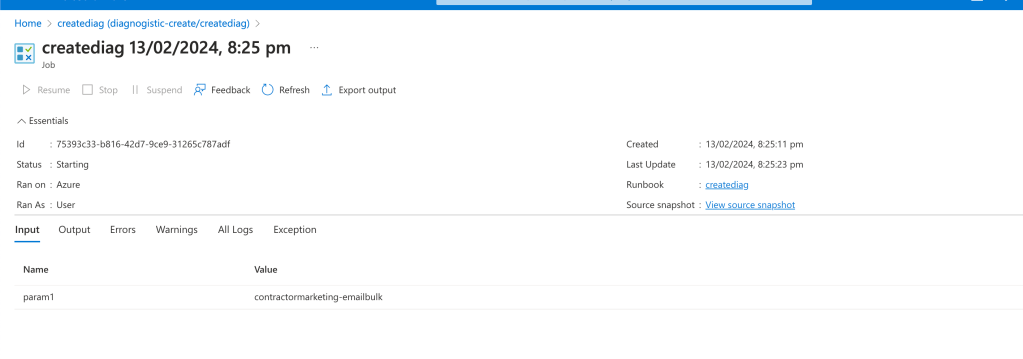

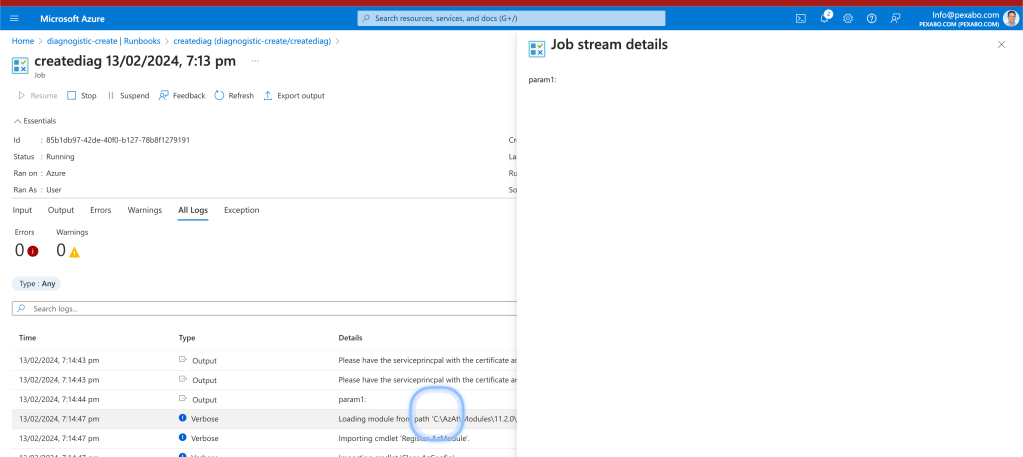

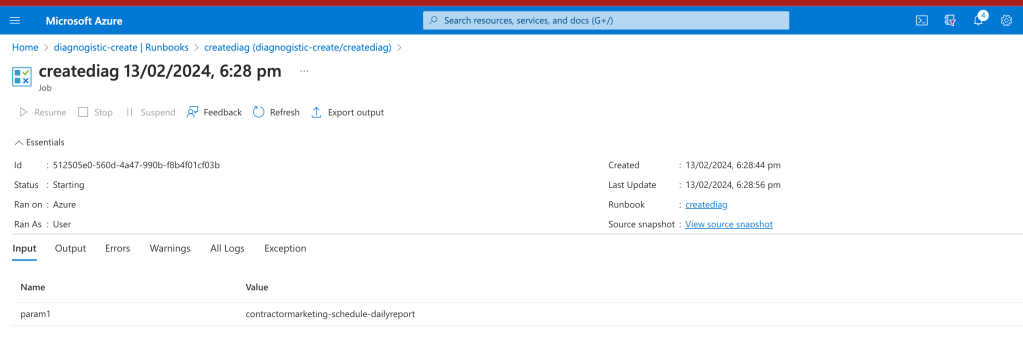

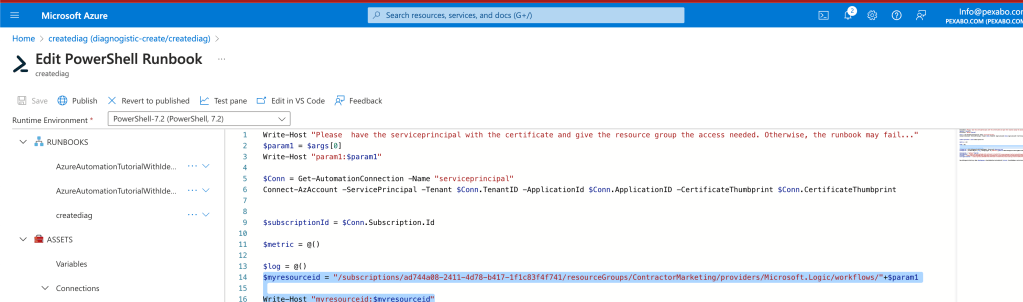

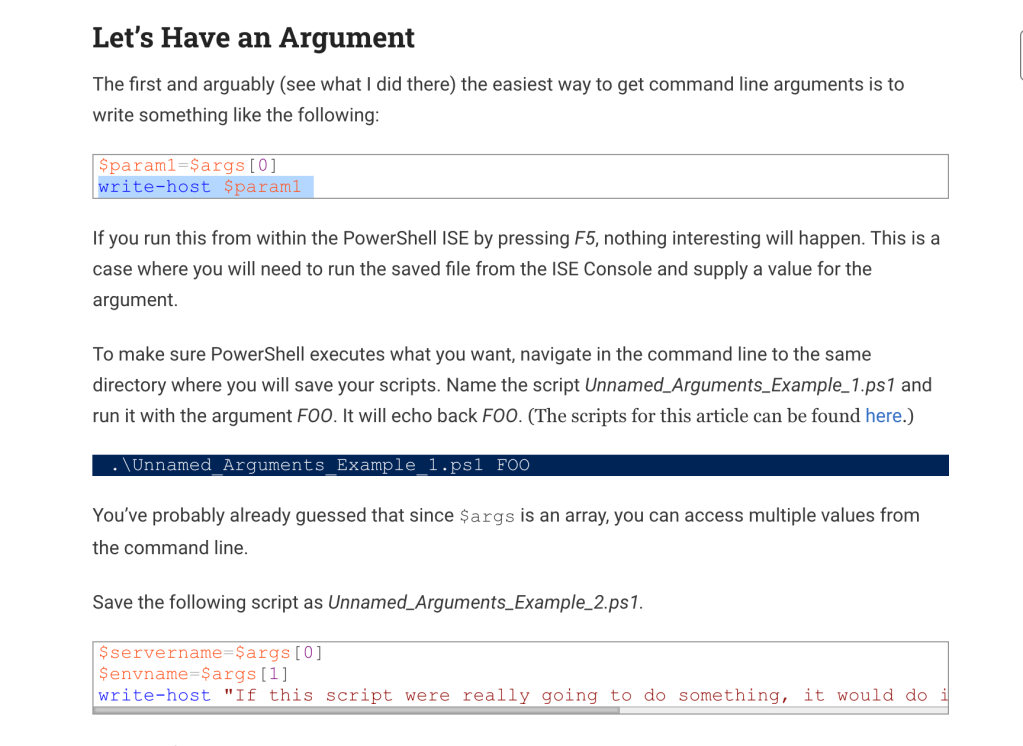

param1 incoming
remove all extras to find where is the error
simplier code
stubbing
meybe better parameters needed

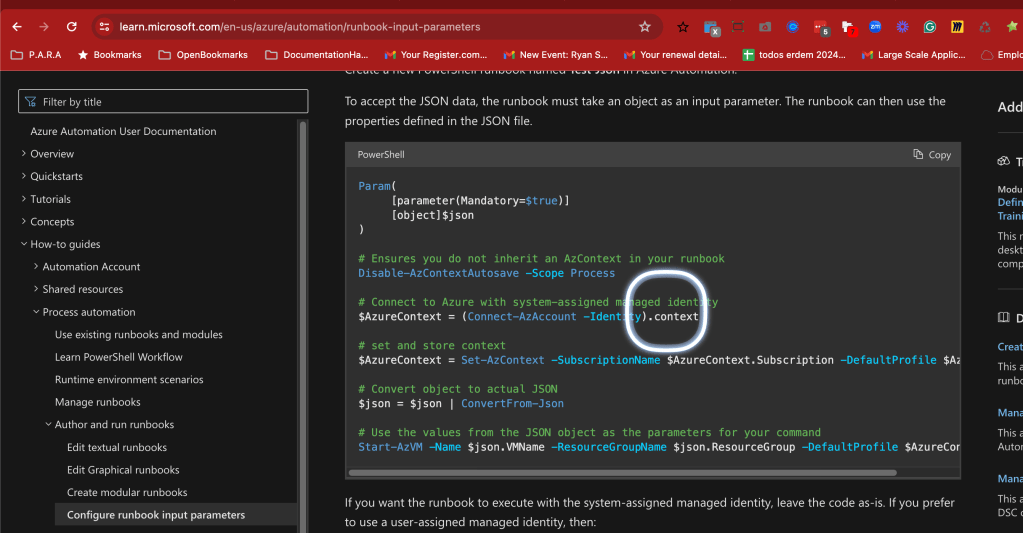

Json reading is different than string reading
Json and string are not the same just the semblance
other errors

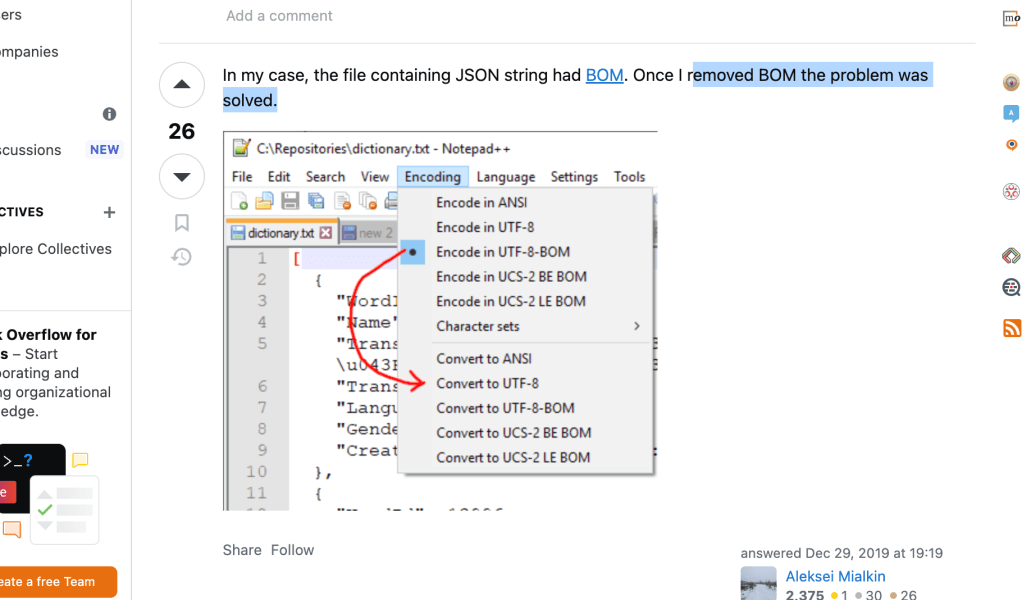

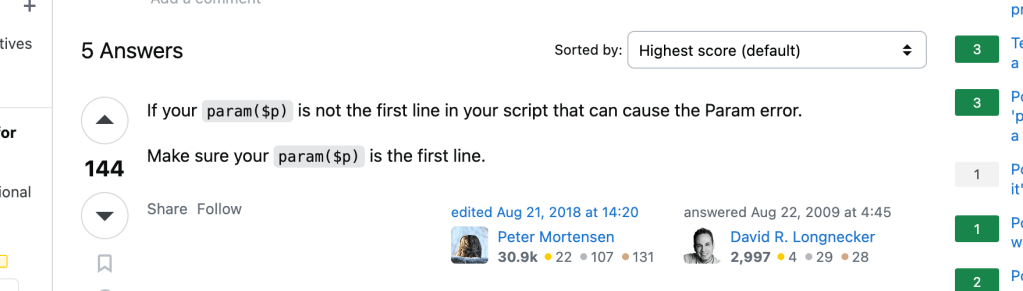

https://stackoverflow.com/questions/1315140/powershell-2-0-and-the-term-param-is-not-recognized-as-the-name-of-a-cmdlet

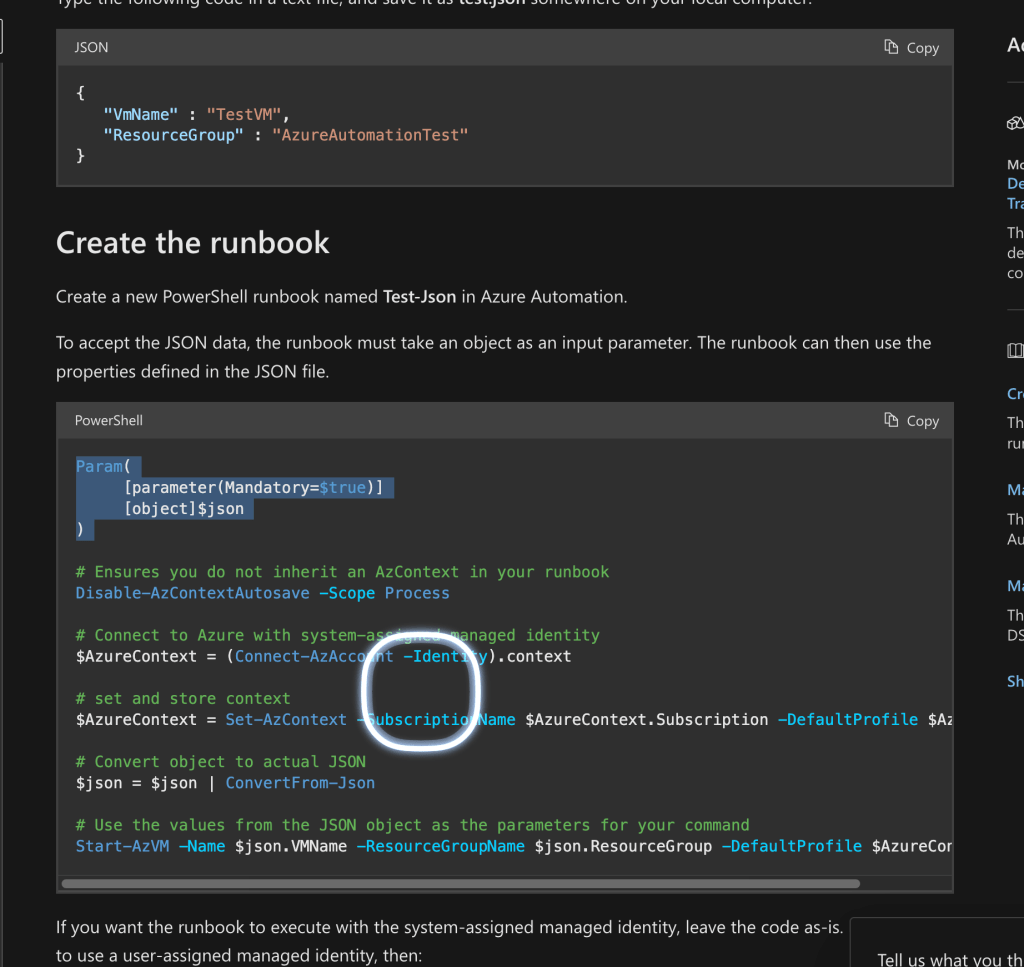

Json

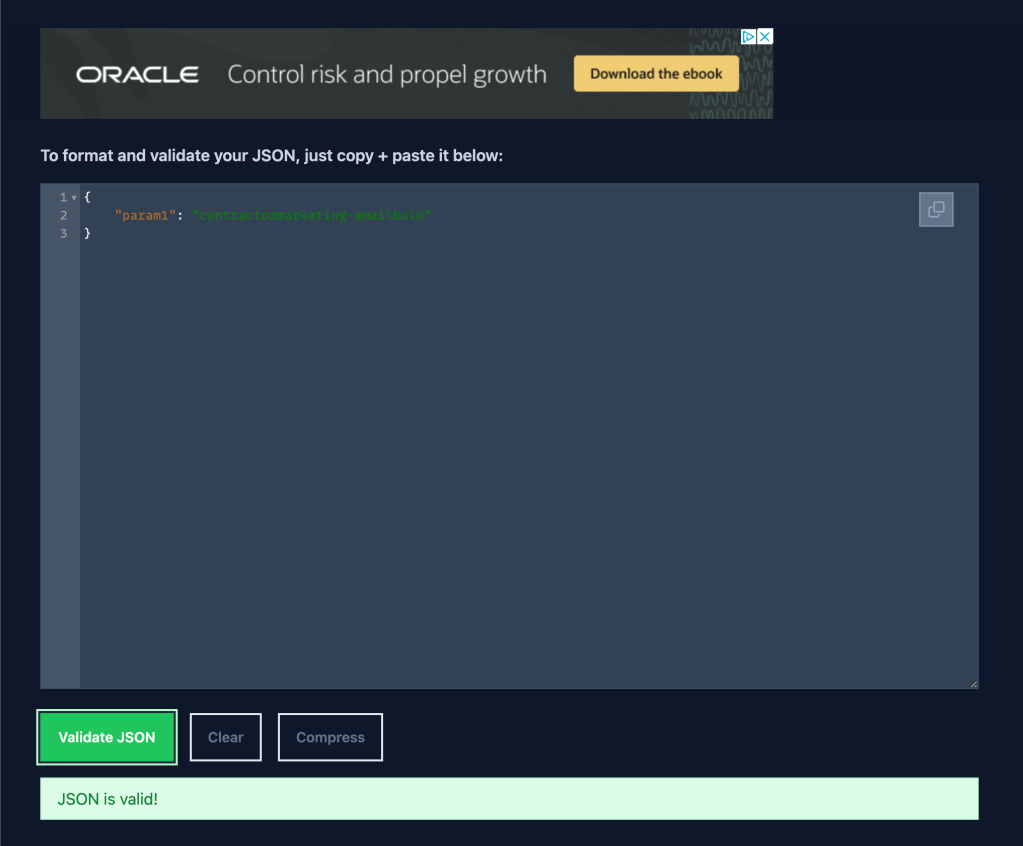

Json valid
webui fails

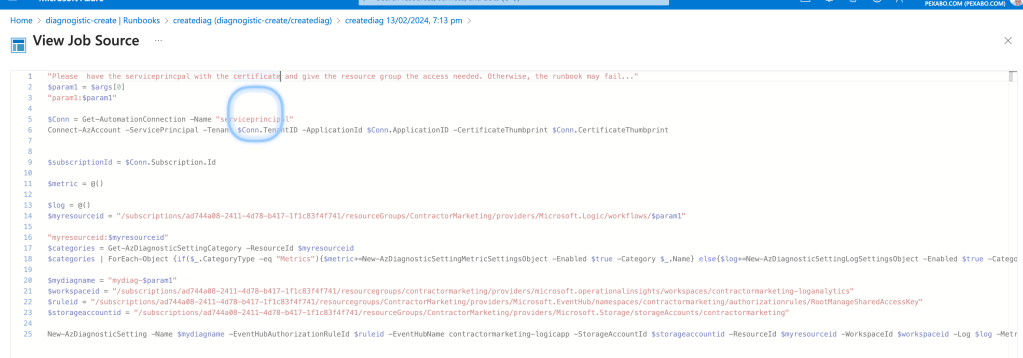

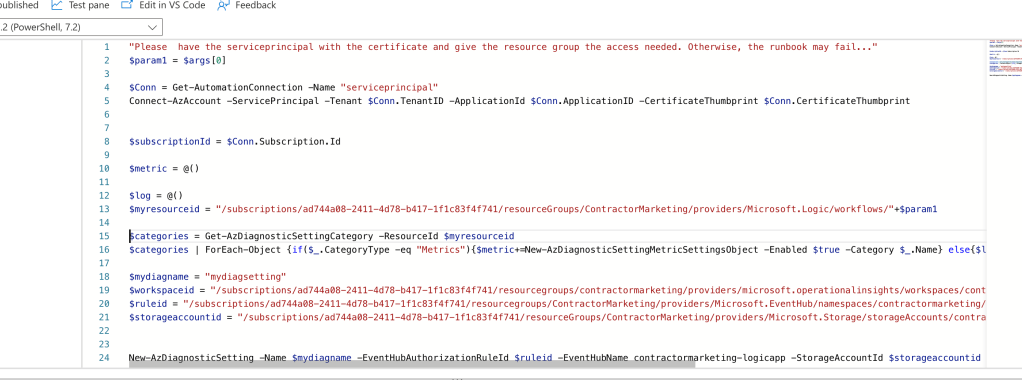

Saved code

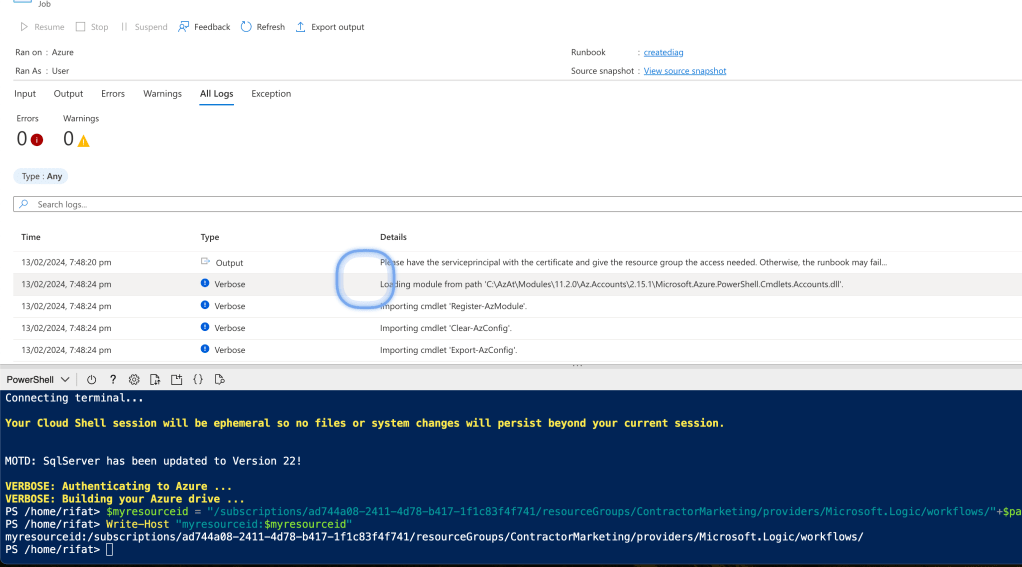

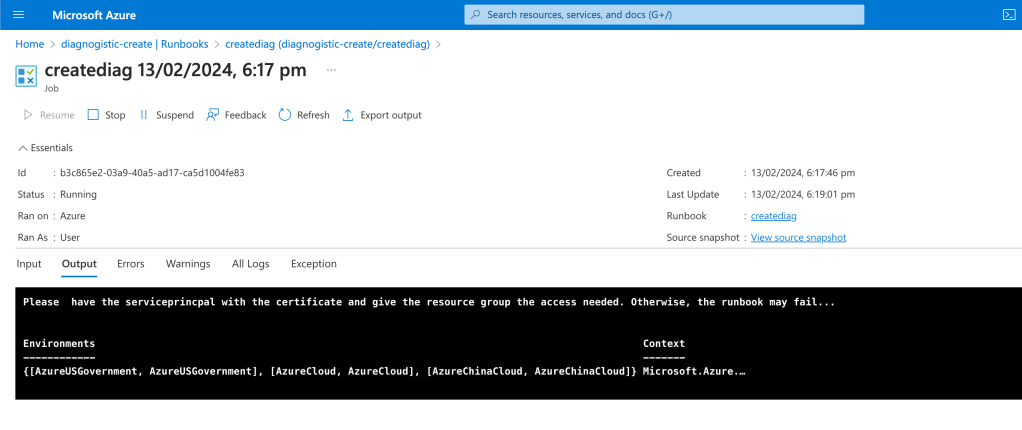

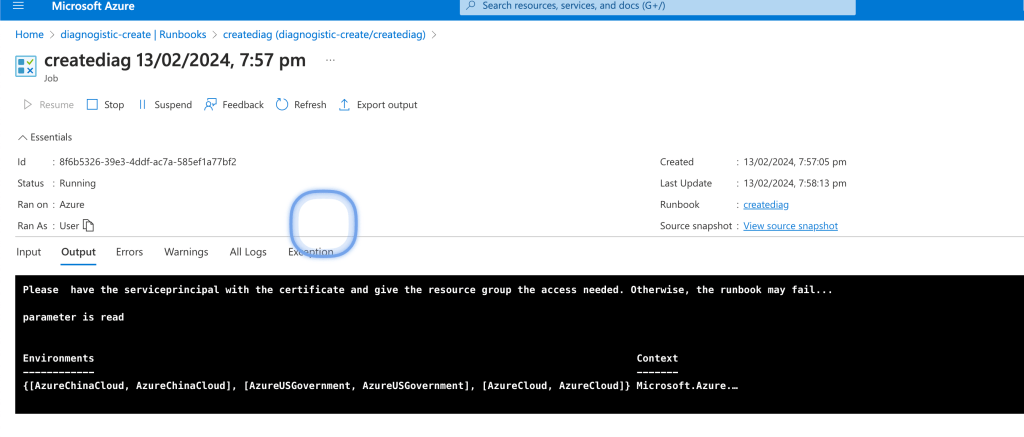

"Please have the serviceprincipal with the certificate and give the resource group the access needed. Otherwise, the runbook may fail..."

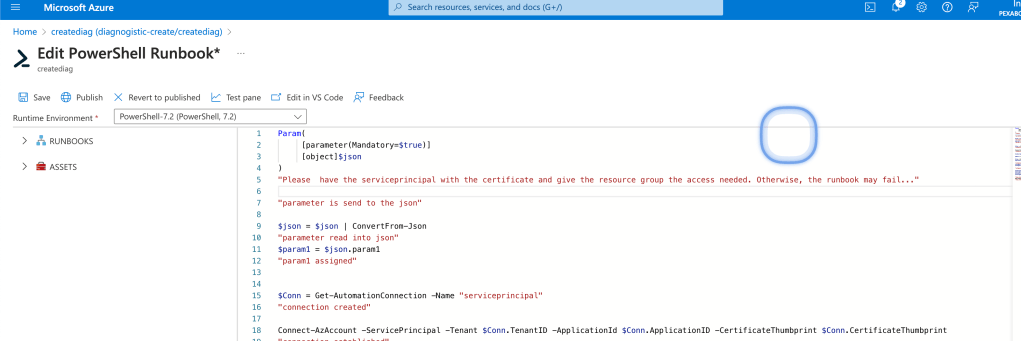

Param(
[object]$json
)
"parameter is send to the json"
$json = $json | ConvertFrom-Json
"parameter read into json"
$param1 = $json.param1
"param1 assigned"
$Conn = Get-AutomationConnection -Name "serviceprincipal"
"connection created"
Connect-AzAccount -ServicePrincipal -Tenant $Conn.TenantID -ApplicationId $Conn.ApplicationID -CertificateThumbprint $Conn.CertificateThumbprint
"connection established"
$subscriptionId = $Conn.Subscription.Id
$metric = @()
$log = @()
$myresourceid = "/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Logic/workflows/"+$param1
"category load started"
$categories = Get-AzDiagnosticSettingCategory -ResourceId $myresourceid
$categories | ForEach-Object {if($.CategoryType -eq "Metrics"){$metric+=New-AzDiagnosticSettingMetricSettingsObject -Enabled $true -Category $.Name} else{$log+=New-AzDiagnosticSettingLogSettingsObject -Enabled $true -Category $_.Name}}
"category load ended"
$mydiagname = "mydiagsetting"
$workspaceid = "/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/contractormarketing/providers/microsoft.operationalinsights/workspaces/contractormarketing-loganalytics"
$ruleid = "/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourcegroups/ContractorMarketing/providers/Microsoft.EventHub/namespaces/contractormarketing/authorizationrules/RootManageSharedAccessKey"
$storageaccountid = "/subscriptions/ad744a08-2411-4d78-b417-1f1c83f4f741/resourceGroups/ContractorMarketing/providers/Microsoft.Storage/storageAccounts/contractormarketing"
"diag started"
New-AzDiagnosticSetting -Name $mydiagname -EventHubAuthorizationRuleId $ruleid -EventHubName contractormarketing-logicapp -StorageAccountId $storageaccountid -ResourceId $myresourceid -WorkspaceId $workspaceid -Log $log -Metric $metric
"diag ended"

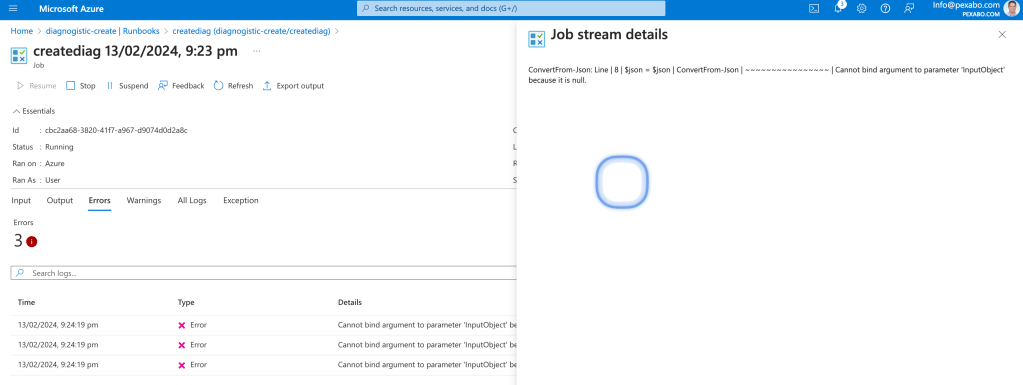

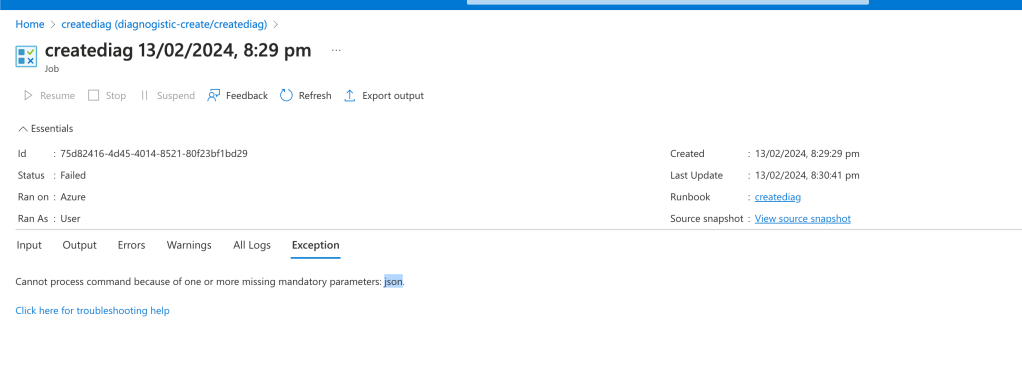

json is null
saved json one more time

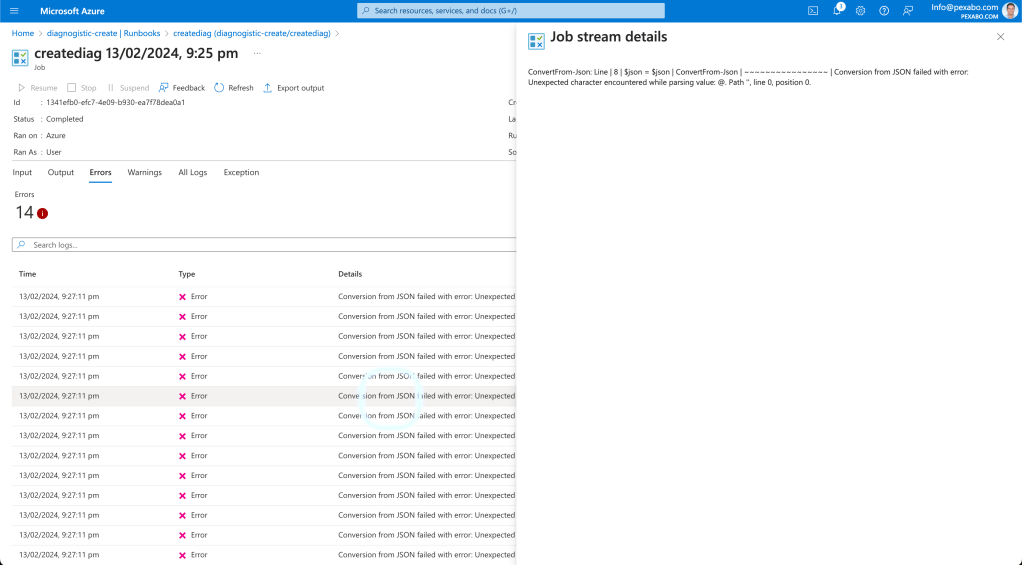

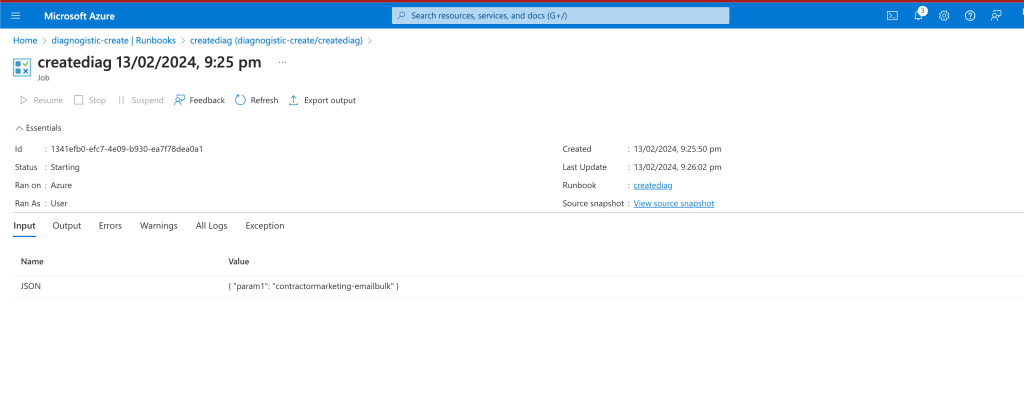

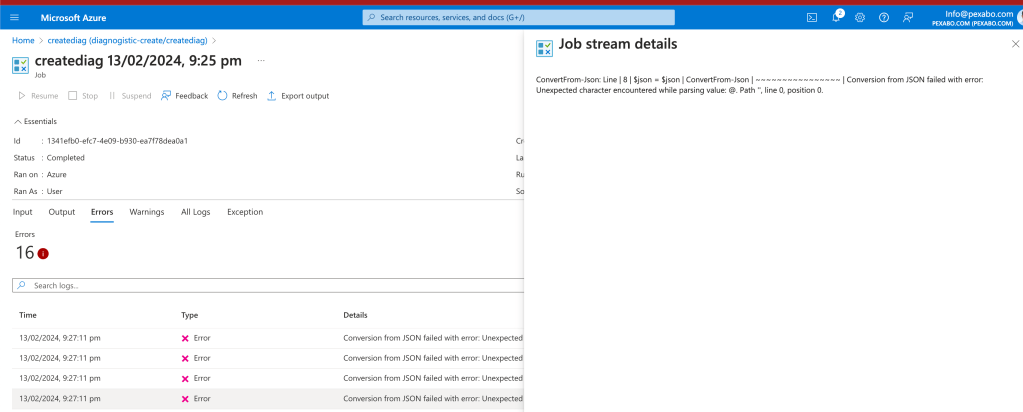

for the first time it says JSON
line 8
it worked with an error?
there could be this kind of errors

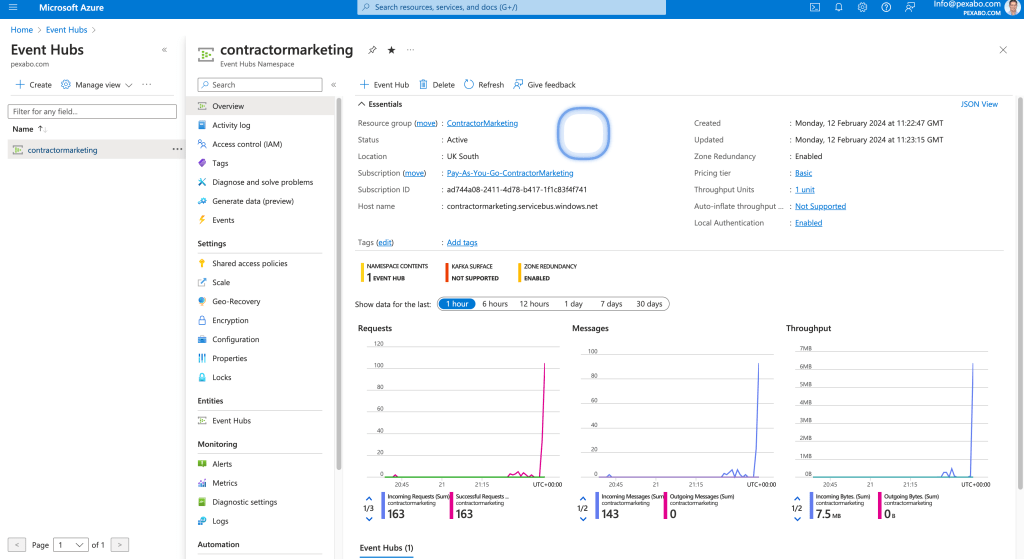

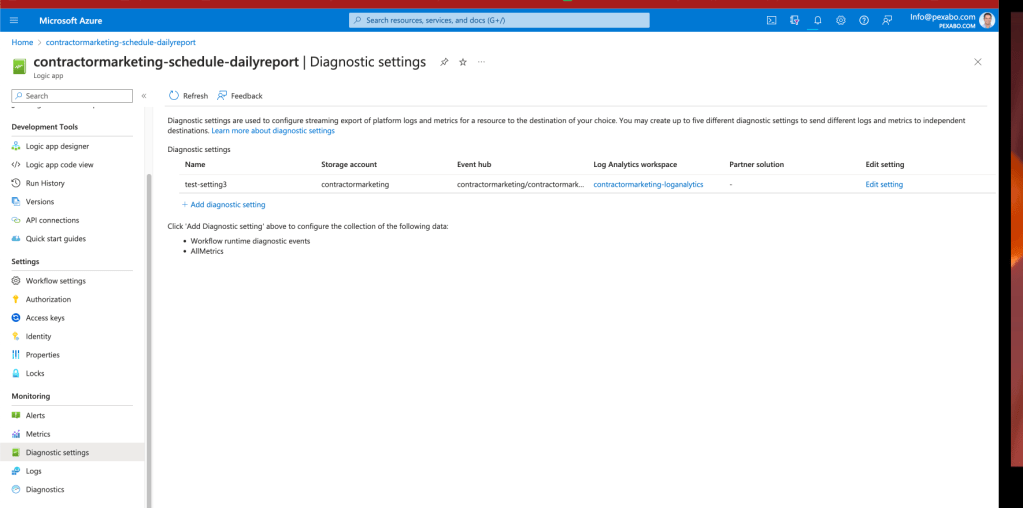

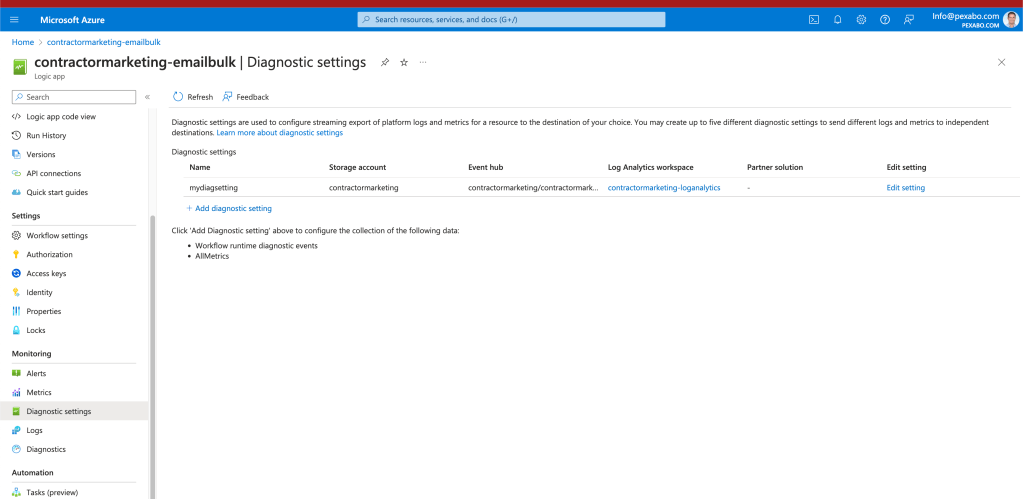

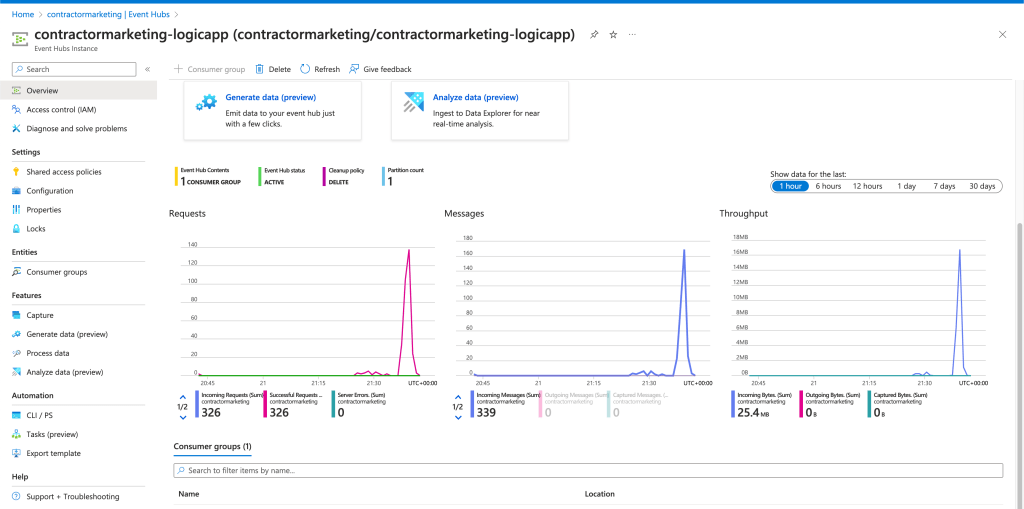

Event hub Started working

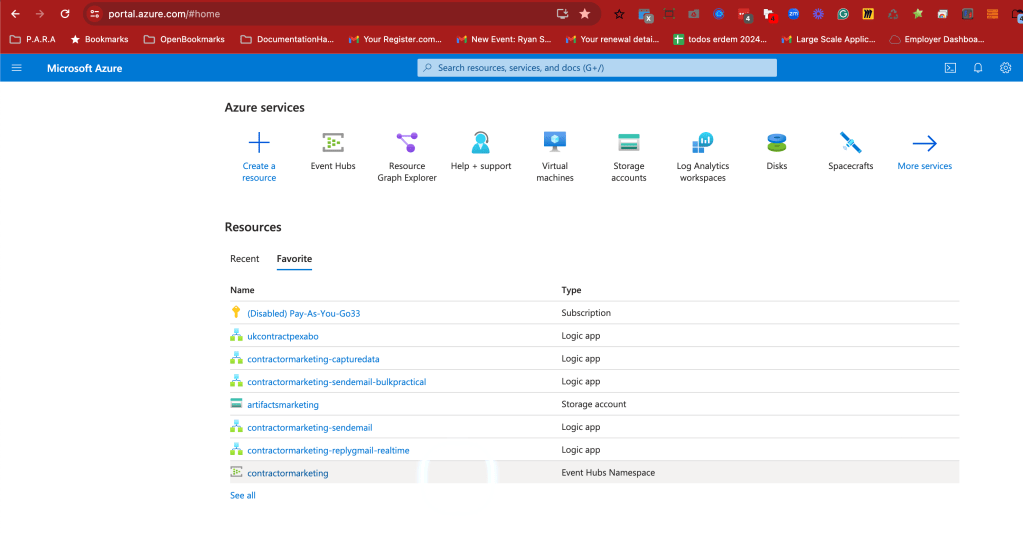

in the favorites now
References
https://learn.microsoft.com/en-us/cli/azure/azure-cli-sp-tutorial-7?tabs=bash
