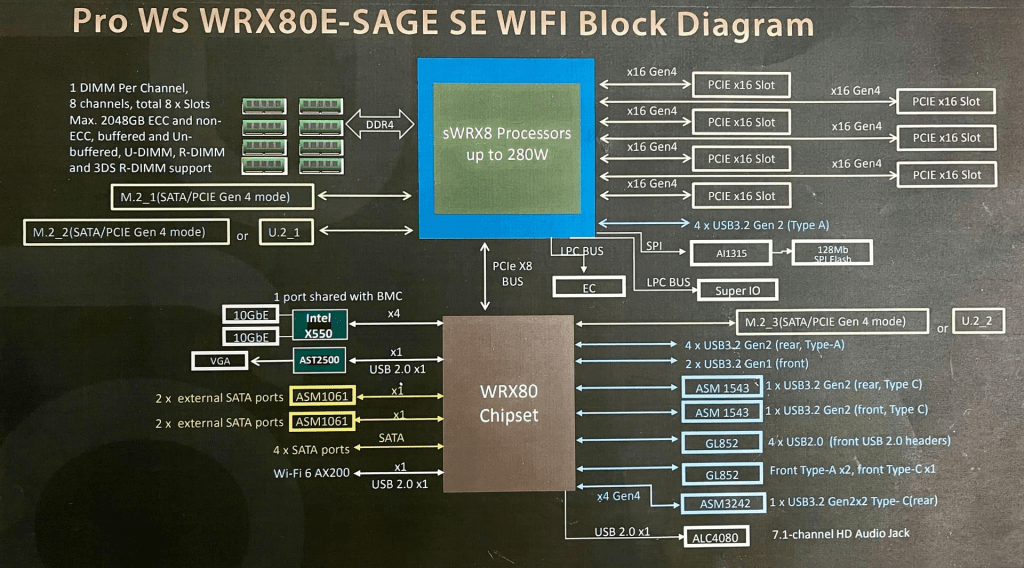

PCI Lanes and the block diagram for sage wifi

I have an AMD 3995x 64 cores/128 thread and an Asus Sage wifi wrx80 motherboard.

5 out of 7 PCIe lanes are used.

I am likely that you have run out of PCIe lanes.

As I have issues with your PCIe devices.

Elgato capture card can not get the signal from the HDMI sources. how do I know how many PCIe lanes are available and how they are distributed across your system at operation time ?

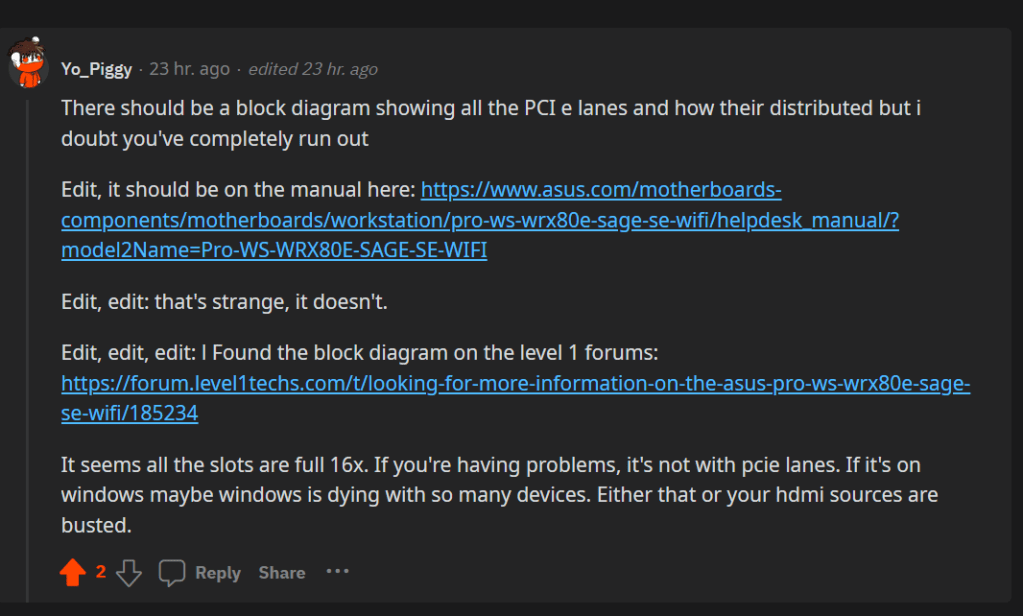

**Answers that i got **

Reference

https://www.reddit.com/r/AMDHelp/comments/15df97s/comment/ju29tsi/?%2524deep_link=true&correlation_id=b1d5c741-289b-401a-89b2-206ff2081a89&ref=email_post_reply&ref_campaign=email_post_reply&ref_source=email&%25243p=e_as&_branch_match_id=1210855535276094794&utm_medium=Email%20Amazon%20SES&_branch_referrer=H4sIAAAAAAAAA3WO3WrDMAyFnya7y5%2BTtkmhjEIZu9kzCNdWGq2OLWyHsLefwrbLgQQfR%2BdwNOfM6VzXEa2lXGnmypF%2F1h2%2FFqrv%2BIKg04tgiPQgrx2s0V3mPVV010K9yWzbVv3mTVhEiLLXj9s7OhYSbUGfk2B7sNN42mkOG9gABE8vRBC1h7BmCBOwIQSnPe6%2Bz1WNOdFe1ElXbxEZ9g%2BL7pbjioU6mhAjOp0peCAr%2Br21B3Pq21IN473sm1aXAqpUzXGaVDO0ehglF3ESMy6aHHBIGSKy%2B%2Fo5gNELa3r4%2Fx0prNHg3%2F0bjCV34kgBAAA%3D

Imported from rifaterdemsahin.com · 2023
